Mitsubishi Outlander PHEV 2019

6

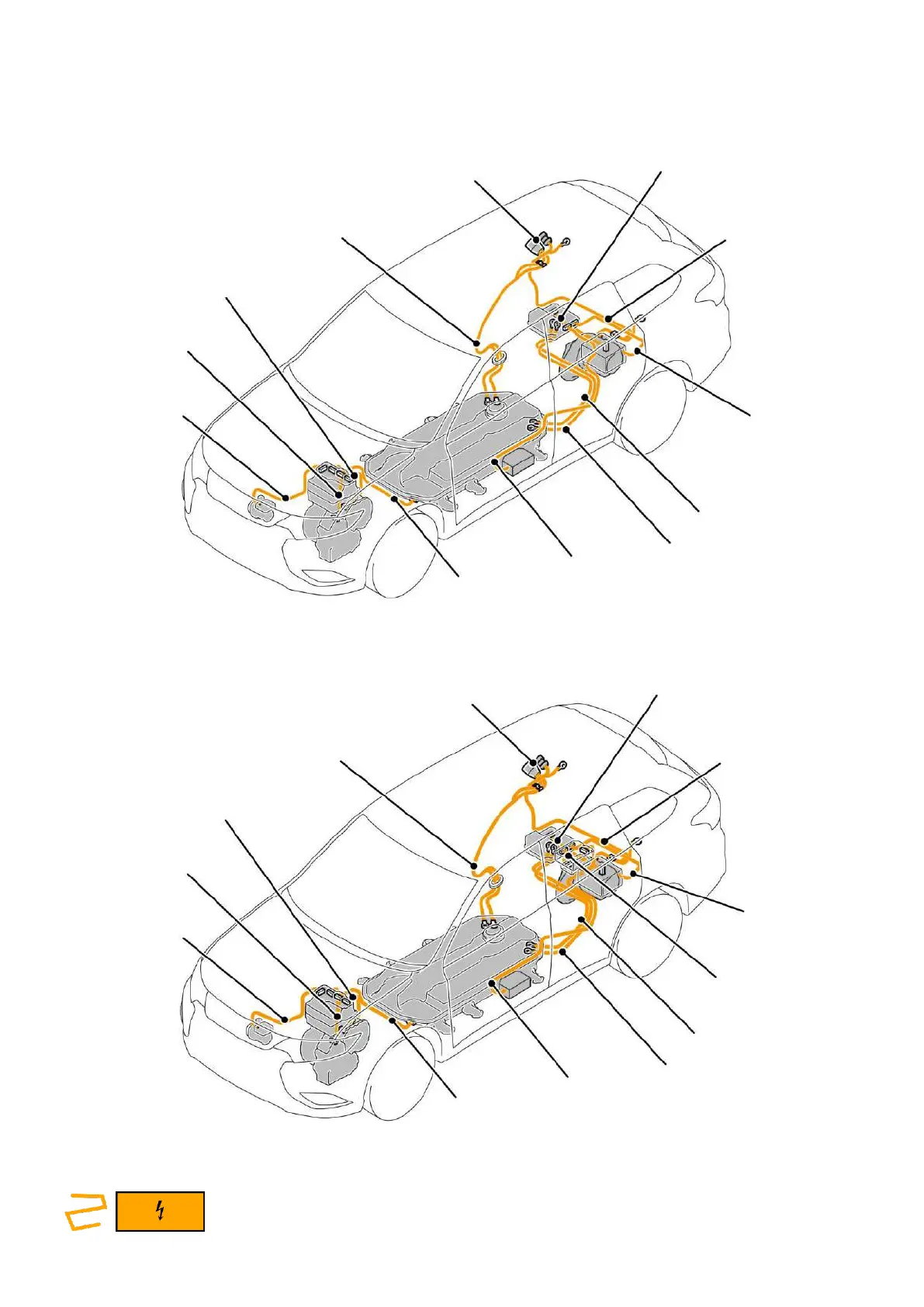

2. High voltage wiring harness location
High voltage wiring harness are located as shown in the figure below.
<Vehicle without 120V AC Power supply (1500W)>
<Vehicle with 120V AC Power supply (1500W)>
*: Refer to “10. Explanation of pictogram used”
A/C compressor cable
Charge port
Main drive
front cable (P, N line)
lithium-ion battery
(U, V, W three phse line)
Generator cable
Front motor cable
(U, V, W three phse line)
On board charger/
DC-DC converter cable
(Rear electric motor
Control unit)
rear cable (P)
Main drive
lithium-ion battery
rear cable (N)
Main drive
lithium-ion battery
EV charging cable
(Regular charger)
Rear motor cable
(U, V, W, three phase line)
(Quick charger)
EV charging cable
A/C compressor cable
Charge port
Junction cable
Main drive
front cable (P, N line)
lithium-ion battery
(U, V, W three phse line)
Generator cable
Front motor cable
(U, V, W three phse line)
On board charger/
DC-DC converter cable
(Rear electric motor
Control unit)
rear cable (P)
Main drive
lithium-ion battery
rear cable (N)
Main drive
lithium-ion battery
EV charging cable
(Regular charger)
(Quick charger)
EV charging cable
Electric heater cable
Rear motor cable
(U, V, W, three phase line)
Electric heater cable
