3. Supplemental Restraint System (SRS) airbag component location

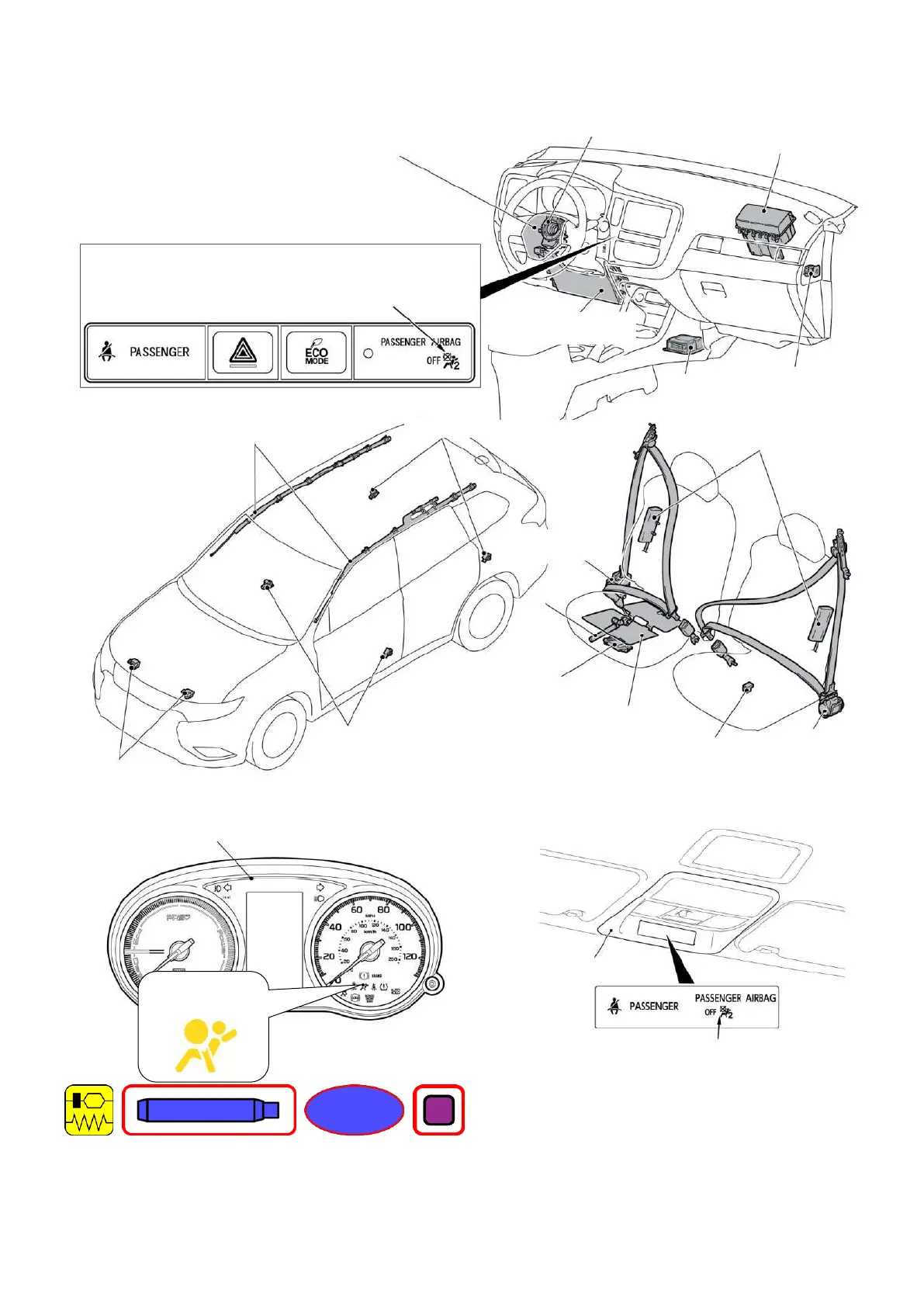

SRS airbags system (location of airbags and related components) are located as shown in the figure below:
*: Refer to “10. Explanation of pictogram used”
SRS
Warning lamp
SRS-ECU
Curtain air bag module
Front impact sensor
Side impact sensor <Front>
Side-airbag module
Knee air bag module
Driver’s
air bag module
Clock spring
Passenger’s
air bag module
pre-tensioner
Seat belt
pre-tensioner
Seat belt
Combination meter
Overhead bezel
Passenger’s air bag OFF indicator light
<For 20MY to 22MY>
Hazard indicator assembly
Passenger’s air bag OFF indicator light
<18MY to 19MY>
Passenger’s
air bag cut off
switch
Occupant classification-ECU
Occupant classification
sensor
Seat slide sensor
Side impact sensor <Rear>
