Mitsubishi Pajero Workshop Manual

ABS <4WD> -
Troubleshooting
35B-23
OFF

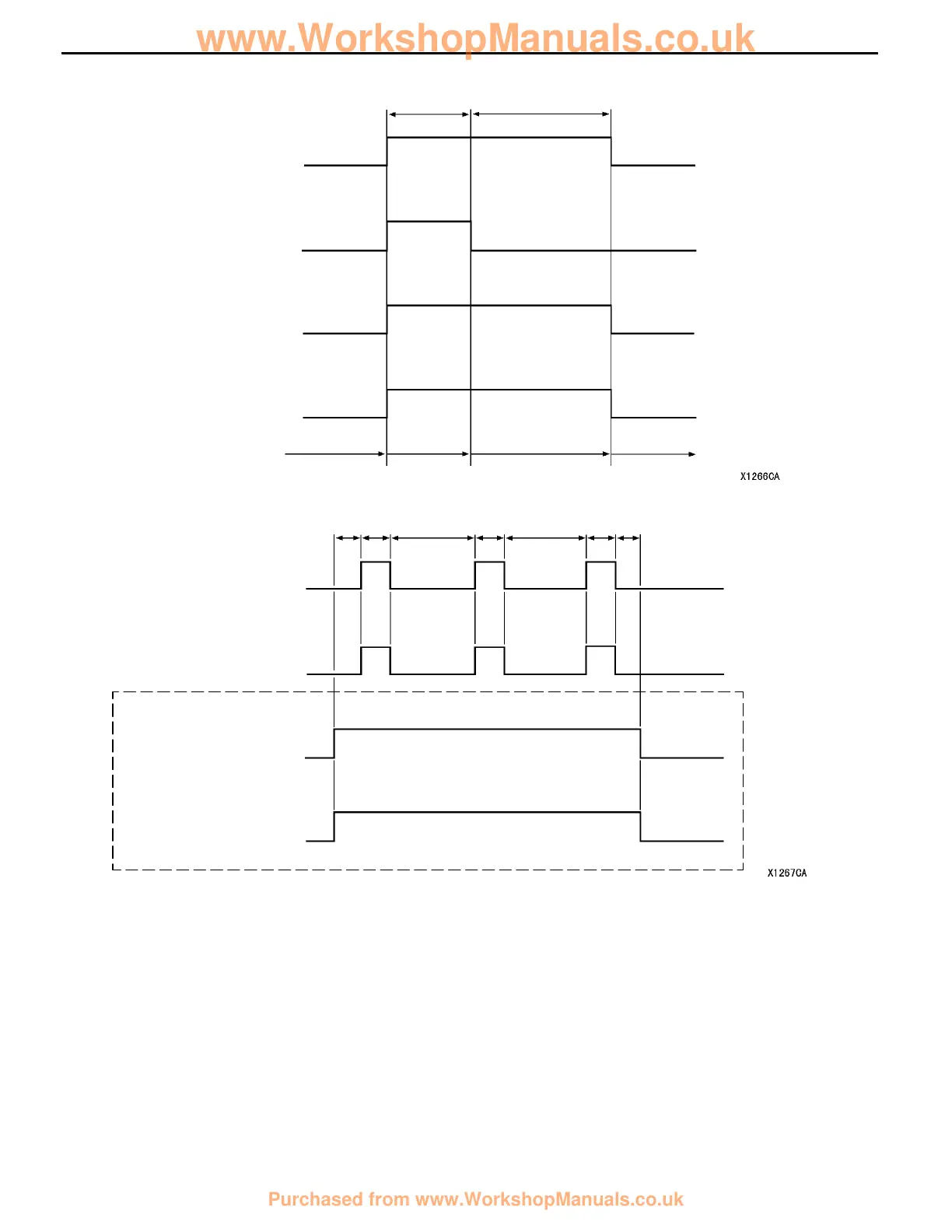

Item No. 01 - 04 drive
pattern
Control solenoid
valve IN
Increase
HoldDecrease
ON
OFF
1s 2s
Increase
Control solenoid
valve OUT
Select solenoid
valve (FR)
Select solenoid
valve (FL)
ON
ON
OFF
ON
OFF
Item No. 27, 28 drive
pattern
Control solenoid
valve OUT (R.H.)*
Control solenoid
valve OUT (L.H.)*
Select solenoid
valve (FR)
Select solenoid
valve (FL)
0.8 s
2.5 s
0.8 s
2.5 s0.8 s
0.8 s 0.8 s
ON
OFF
ON
OFF
ON
OFF
ON
OFF
Item No.27 only
NOTE
*: When carrying out item No. 27, the front wheels are driven, a nd when carrying
out item No. 28, the rear wheels are driven.
Brake fluid
pressure of
corresponding
wheel
