ABS <4WD> -
Wheel Speed sensor
35B-34
REMOVAL SERVICE POINTS
A
A
"
FRONT WHEEL SPEED SENSOR REMOVAL

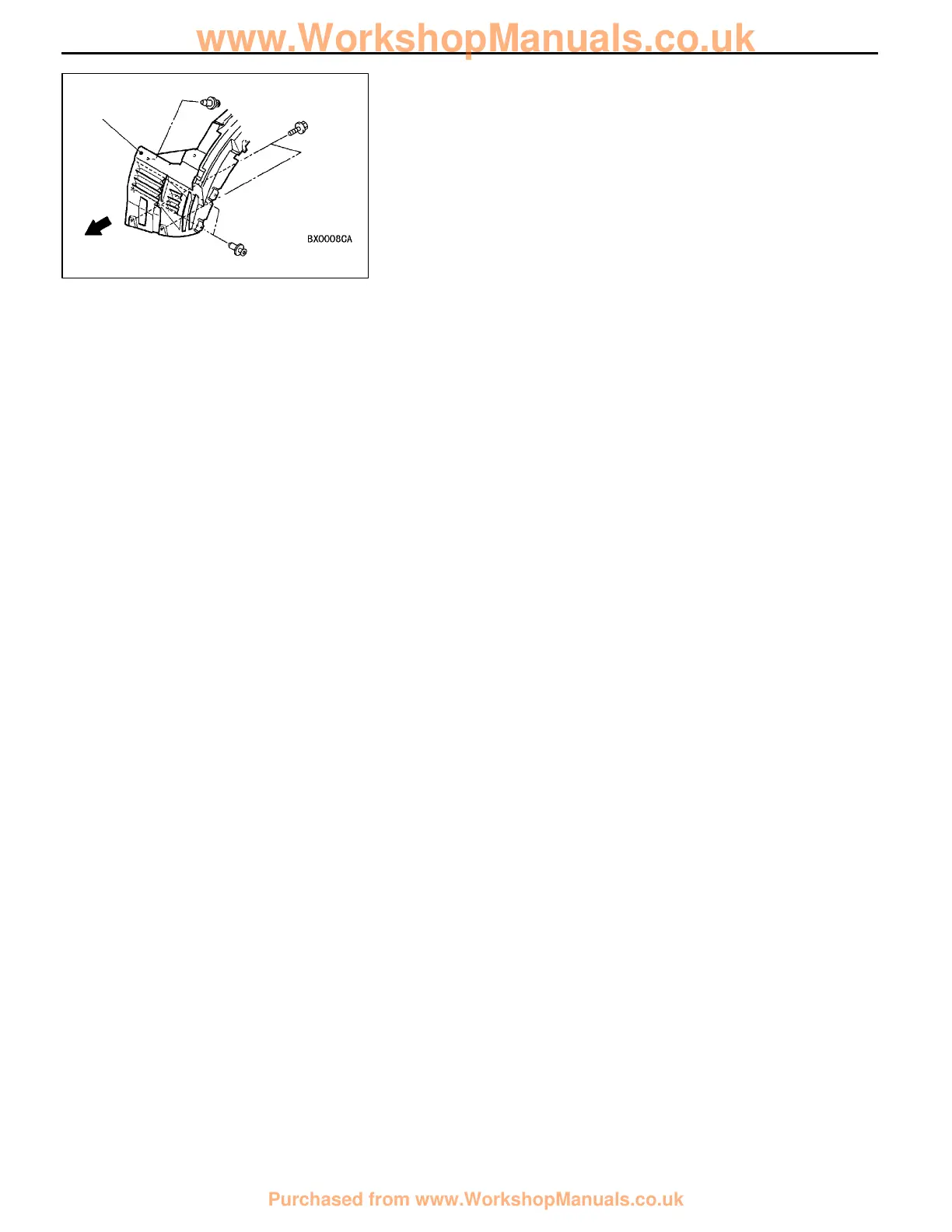

(1) Remove the three splash shield clips a nd the two bolts
shown in the illustration, and then disconnect the front
wheel speed sensor connector.
(2) Remove the front wheel speed sensor.
Caution
When removing the wheel speed sensor, be careful
not to strike the pole piece at the end against the
teeth of the ABS rotor or against any other nearby
parts.
A
B
"
REAR WHEEL SPEED SENSOR REMOVAL
Caution
When removing the wheel speed sensor, be careful not
to strike the pole piece at the end against the teeth of
the ABS rotor or against any other nearby parts.
INSPECTION
WHEEL SPEED SENSOR TERMINAL RESISTANCE
CHECK
Caution
The wheel speed sensors have magnets built into the
sensors which magnetize the pole pieces. Because of
this, care should be taken not to let metallic foreign
particles get onto the pole pieces. In addition, if the poles
become damaged, the sensors may not be able to detect
the wheel speed correctly.
Splash shield
Front
