3.3 Settings for Creation and Execution of Multiple Sequence Programs
3.3.6 Execution type setting and example of type changing
3 - 59
1
Overview
2
Performance
Specification
3
Sequence Program
Configuration and
Execution Conditions
4
I/O Nunber Assignment
5
Memories and Files
Handled by CPU Module
6
Functions
7
Communication using
built-in Ethernet ports of
CPU module
8
Communication with
Intelligent Function
Module
(d) I/O refresh setting
Note3.32
Note30
The CPU module updates the I/O of the I/O modules and intelligent function
modules by block I/O refresh.( Section 3.8.1)
When I/O refresh setting is performed, the I/O refresh in the specified range can
be made for each set program.
1) I/O refresh setting application
The input (X) used before execution of a fixed scan execution type program
can be imported, and the output (Y) turned ON/OFF in the fixed scan
execution type program can be provided to the outside.
POINT
The scan time of the program being executed (except the fixed scan execution
type program) can be checked in the program list monitor.
( Section 6.13.1)
Note30

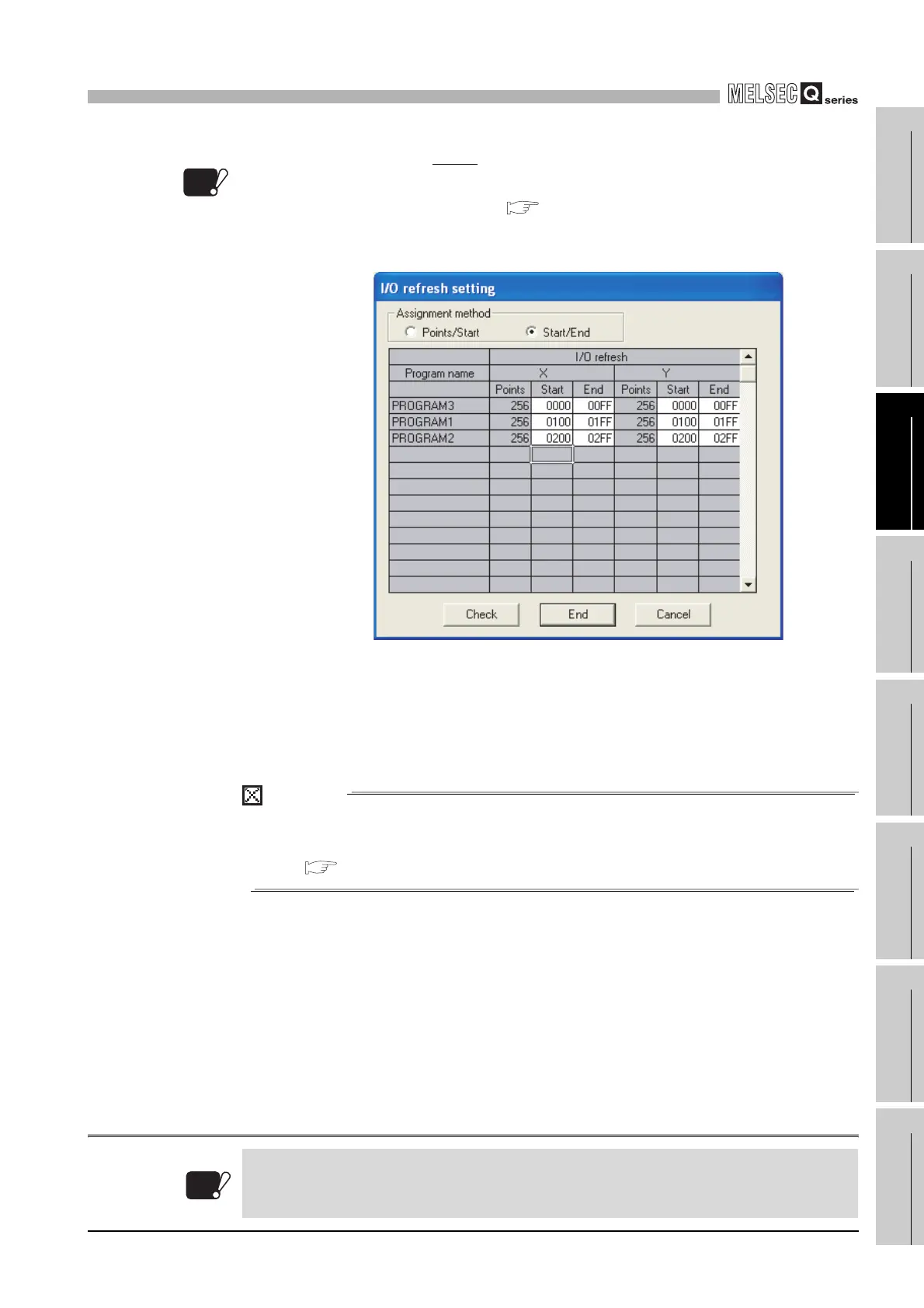

Figure 3.53 I/O refresh setting
Universal
UD
Note3.32
I/O refresh setting is not available for the Universal model QCPU.
