(9) Detailed information of power supply module
Indicates the ON/OFF status, error occurrence and number of momentary power
failures of the power supply module.
The detailed information of power supply module is available when redundant base
unit or the power supply module that supports the detailed information of the power
supply module is used.
POINT
1. In a multiple CPU system configuration, the detailed information of power
supply module can be displayed only when GX Developer is connected to the
CPU No. 1.
2. In a multiple CPU system configuration, the detailed information of power
supply module can be displayed only when all CPU module serial No. of first
5 digits is "07032" or later.
3. Double-clicking the power supply module area of mounting status can also
display the detailed screen of power supply module.

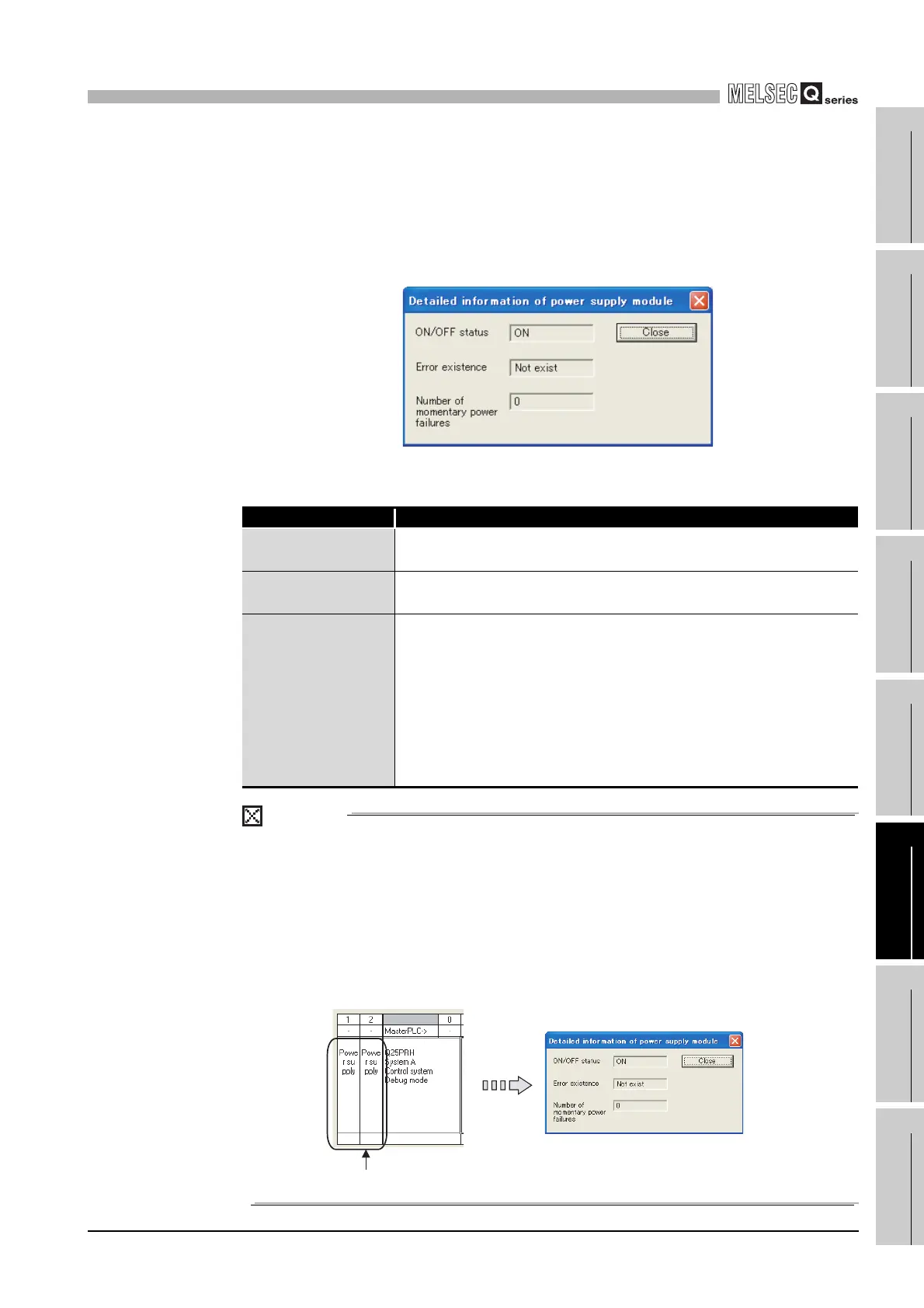

Figure 6.93 Detailed screen of power supply module
Table6.40 Description for detailed screen of power supply module
Item Description
ON/OFF status
Displays the input power supply status to the redundant power supply
module.
Error occurrence
Displays the failure (error) occurrence in the redundant power supply
module.
Number of momentary
power failures
• When the redundant power supply module of redundant main base unit
is selected
The number of momentary power failures of the redundant power
supply module mounted to the redundant main base unit is
displayed.(Display range: 0 to 65535)
• When the redundant power supply module of redundant extension base
unit is selected
The number of momentary power failures is displayed as "-" and not counted.
Double-click
Displays the detailed screen
of power supply module
To Next Page
