7.6 File Transfer Function (FTP)
7 - 27
1
Overview
2
Performance
Specification
3
Sequence Program
Configuration and
Execution Conditions
4
I/O Nunber Assignment
5
Memories and Files
Handled by CPU Module
6
Functions
7
Communication using
built-in Ethernet ports of
CPU module
8
Communication with
Intelligent Function
Module
(2) List of transferable files
Table7.7 lists the transferable files using the file transfer function.
: Transferable : Not transferable
* 1 : A file for reading/writing data by a sequence program using the following instructions:
• SP.FREAD (Batch-reads data from the specified file in the memory card.)
• SP.FWRITE (Batch-writes data to the specified file in the memory card.)
For details on the SP.FREAD/SP.FWRITE instructions, refer to the following manual.
QCPU (Q mode)/QnACPU Programming Manual (Common Instructions)
* 2 : Writing files to the program memory is enabled only when the CPU module is in the STOP status.
* 3 : Write destination is the program cache memory. The user should back up files using the "pm-
write" command as required. ( (5) in this section)
* 4 : The number of files written using the File transfer function (FTP) is up to the number described
below.
[The maximum number of files can be stored in the corresponding drive -1]

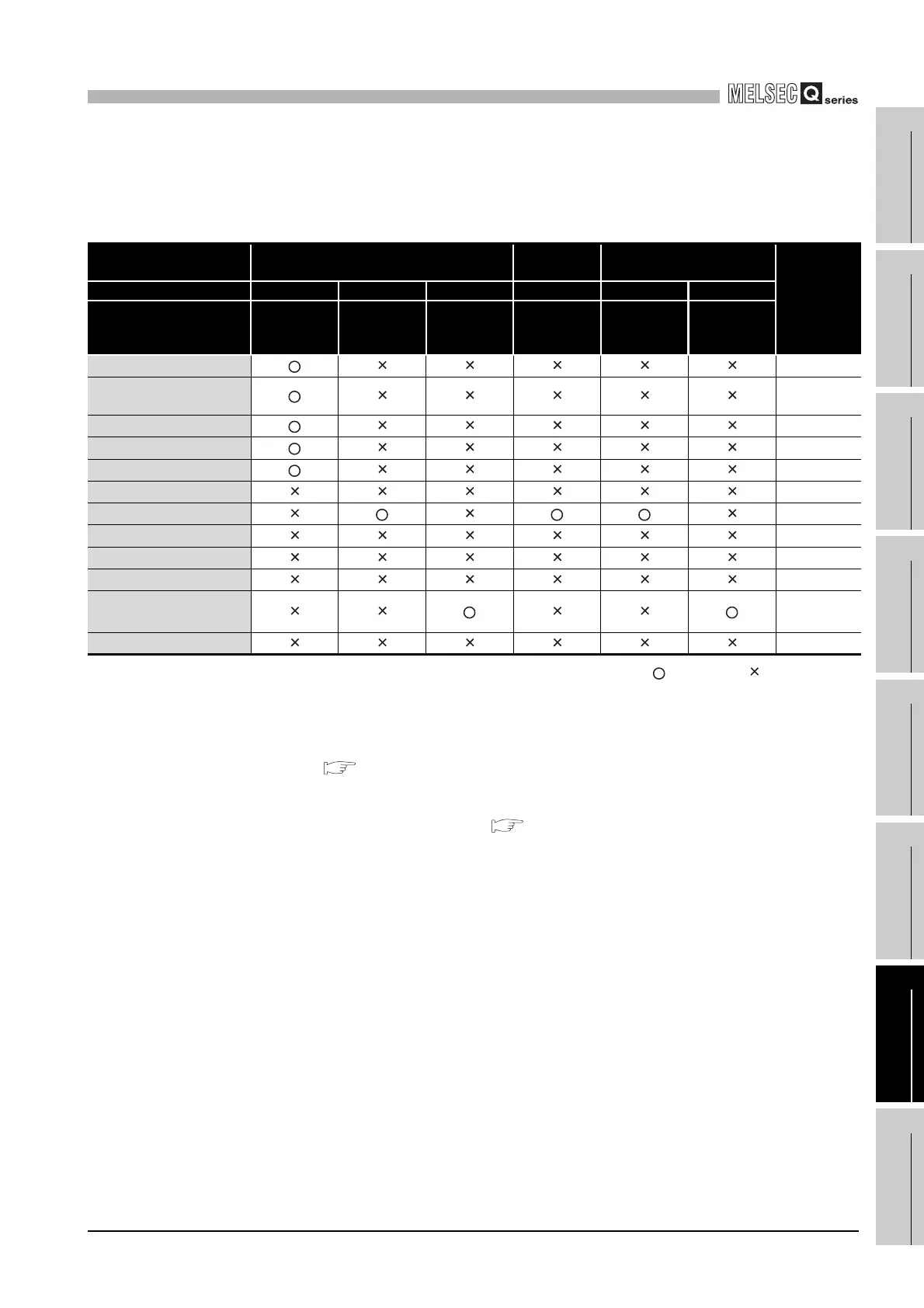

Table7.7 List of transferable files
Target memory Built-in memory
Memory card
(RAM)
Memory card (ROM)
File name or
extension
File storage drive number 0 3 4 1 2 2
File type
Program
memory
*2, *3
Standard
RAM
Standard
ROM
*4
SRAM card
*4
Flash card
ATA card
*4
Parameter PARAM.QPA
Intelligent function module
parameter
IPARAM.QPA
Program .QPG
Device comment .QCD
Device initial value .QDI
Device data .QST
File register .QDR
Local device .QDL
Sampling trace file .QTD
Error history data .QFD
Programmable controller
user data
*1
Arbitrary file
name
User setting area ---
