App - 9 App - 9
MELSEC-Q
APPENDICES

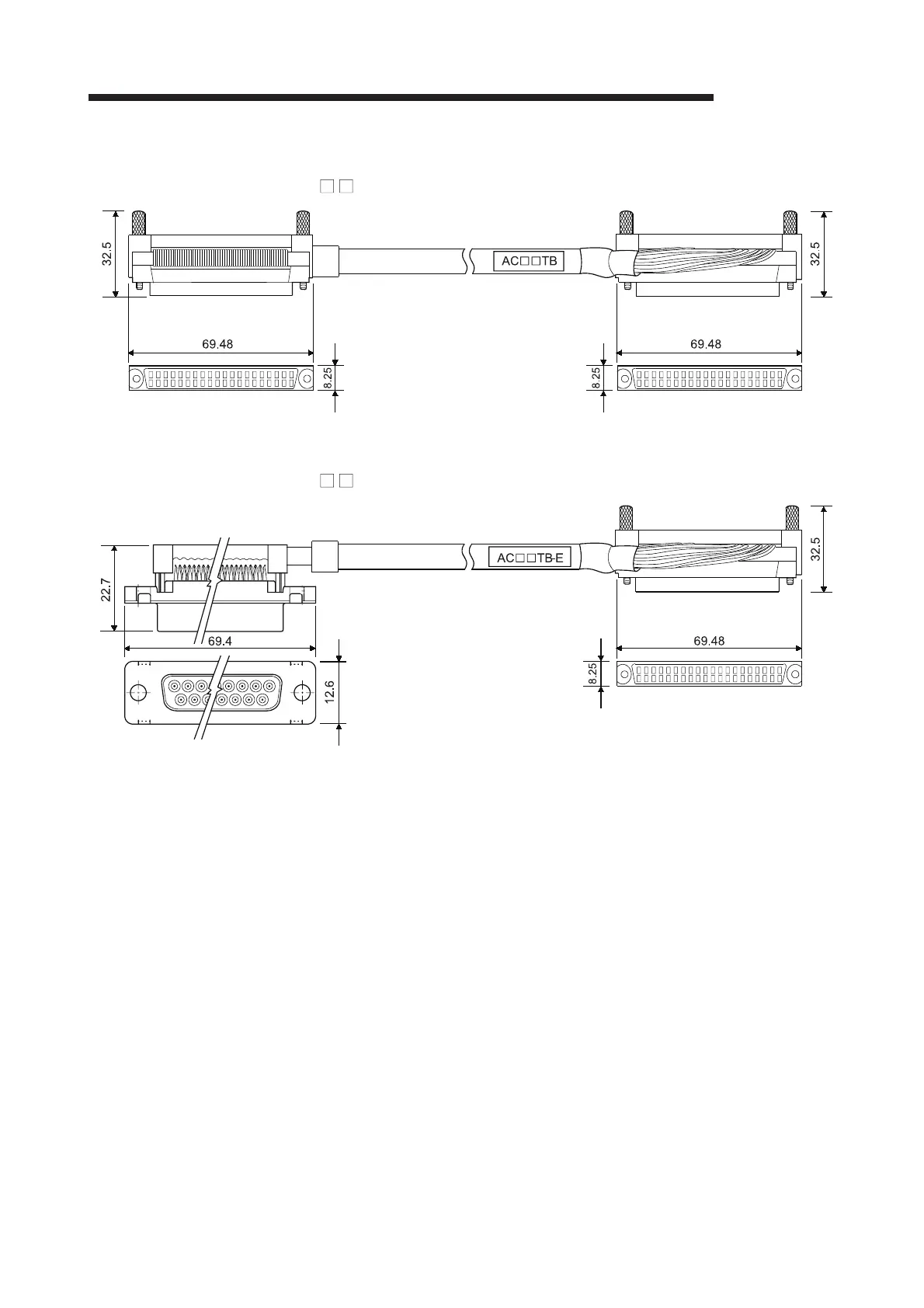

Appendix 1.3 Connector/terminal block converter module cable
(1) AC TB
Unit: mm
(2) AC TB-E
Unit: mm
