1 GENERAL SPECIFICATIONS AND PRECAUTIONS FOR USE
(b) Measure against back EMF

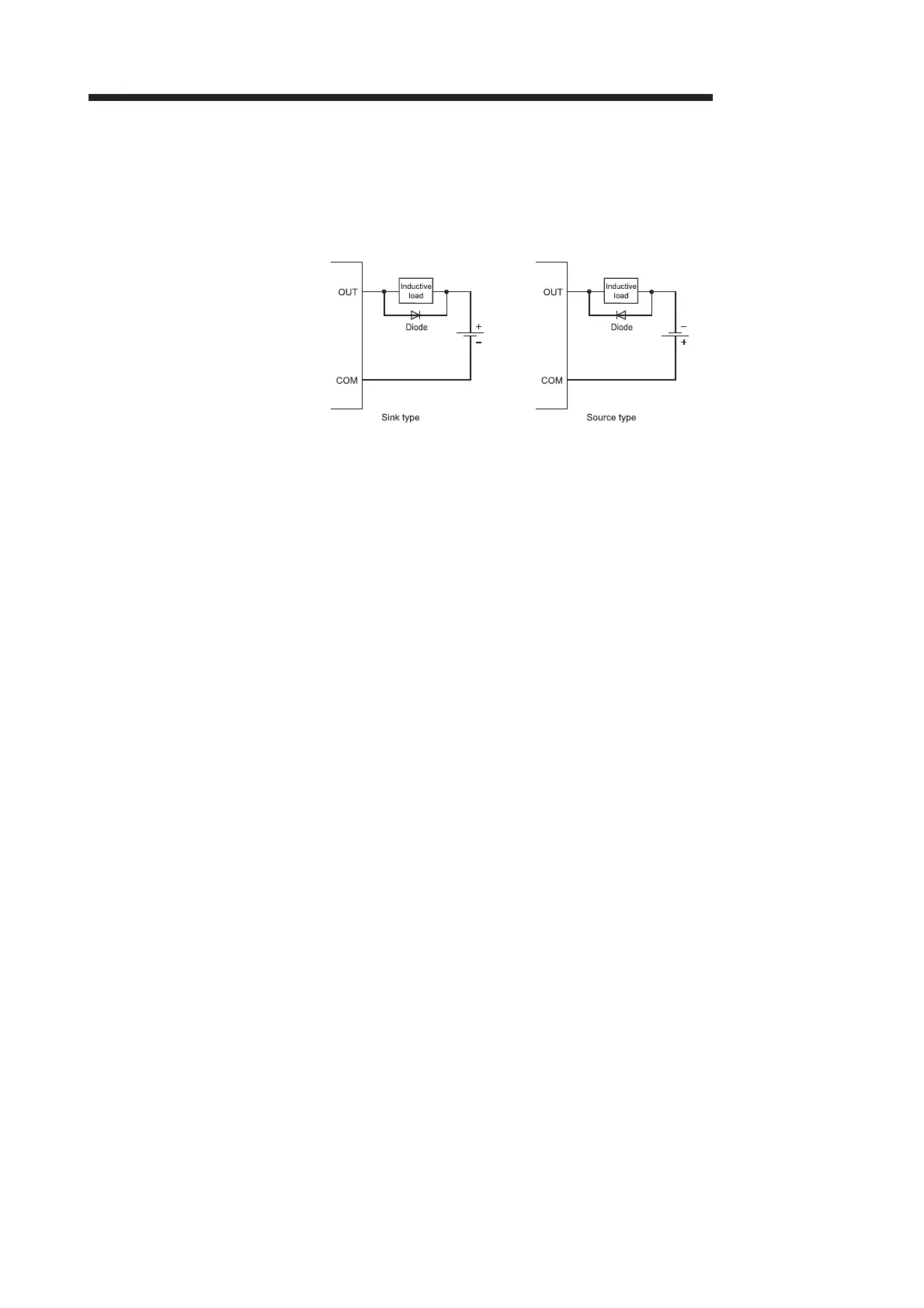

When an inductive load is connected, connect a diode to the load in parallel.
Use a diode that meets the following conditions.
• Reverse breakdown voltage is 10 times as high as the circuit voltage or
more.
• Forward current is twice as high as the load current or more.
