9 SPRING CLAMP TERMINAL BLOCK
(6) Connecting a cable
(a) When using the bar solderless terminal, correctly connect a wire to the
solderless terminal according to the directions for the solderless terminal.
When using a wire (single wire or stranded wire), strip the wire to meet the
strip length of the specifications.

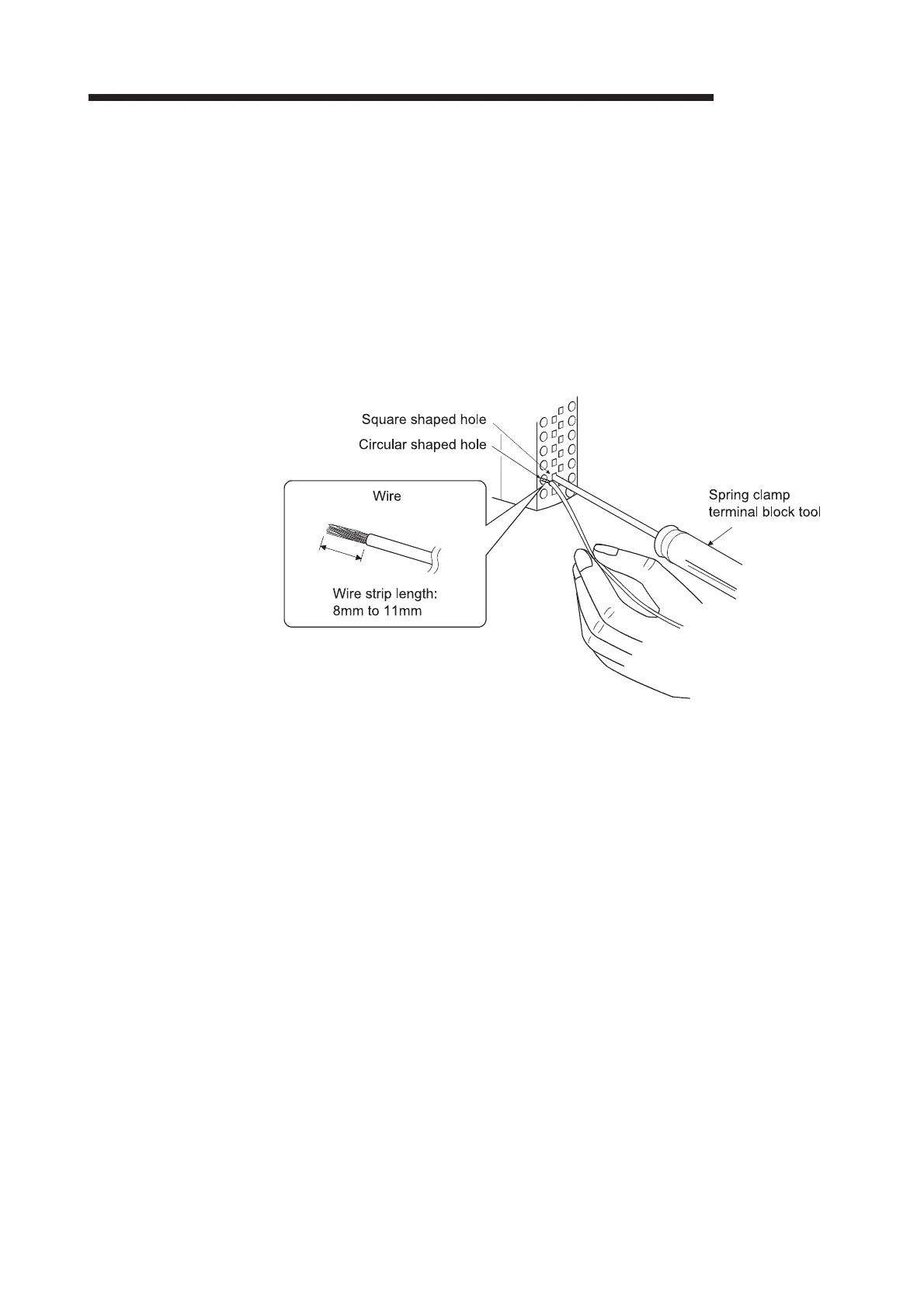

(b) Insert the tool vertically all the way inside the square shaped hole of the
Q6TE-18S(N).
(c) Insert the bar solderless terminal or the wire into the circular shaped hole, and
remove the tool from the hole.
(d) After the connection is completed, check that the bar solderless terminal or
the wire is firmly clamped by pulling it lightly.
(7) Disconnecting a cable
(a) Insert the tool vertically all the way inside the square shaped hole of the
Q6TE-18S(N).
(b) Pull the bar solderless terminal or the wire out of the hole.
