3 - 17
3 -
17
MELSEC-Q

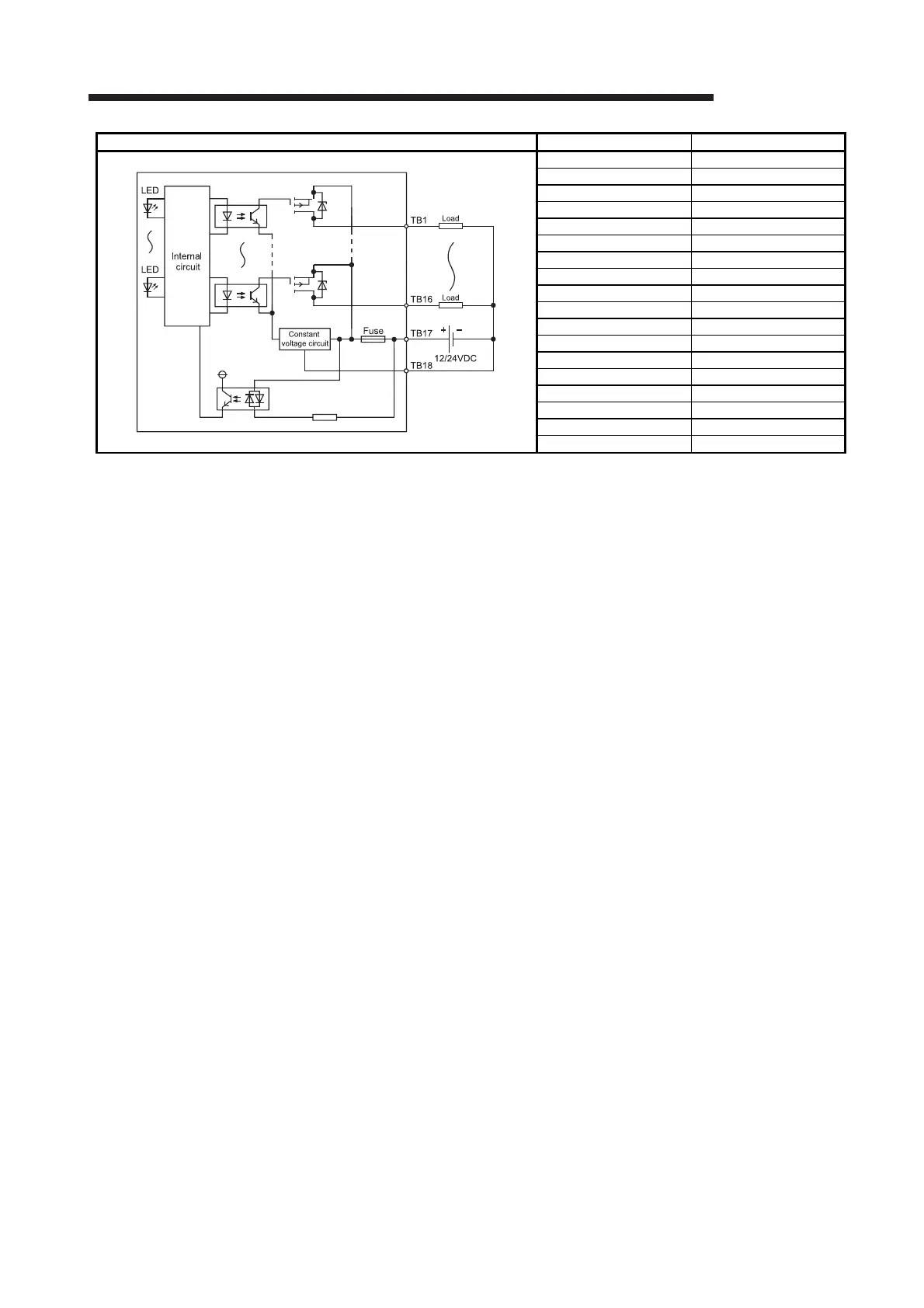

3 OUTPUT MODULE SPECIFICATIONS
External connec
tion
Terminal
block No.
Signal name
TB1 Y00
TB2 Y01
TB3 Y02
TB4 Y03
TB5 Y04
TB6 Y05
TB7 Y06
TB8 Y07
TB9 Y08
TB10 Y09
TB11 Y0A
TB12 Y0B
TB13 Y0C
TB14 Y0D
TB15 Y0E
TB16 Y0F
TB17 COM
TB18 0V
92
94
Table of Contents
Default Chapter
3
Safety Precautions
3
Conditions of Use for the Product
9
Revisions
10
Table of Contents
14
About Manuals
17
Compliance with Emc and Low Voltage Directives
17
1 General Specifications and Precautions for Use
19
General Specifications
19
Precautions for Use
19
Input Module
19
Output Module
21
I/O Combined Module
32
I/O Module with Protection Function
33
Interrupt Module
34
Installation and Wiring
34
Various Settings for I/O Module
35
Setting of I/O Response Time
35
Setting of Error-Time Output Mode
38
Switch Setting of Interrupt Module
39
2 Input Module Specifications
41
QX10 AC Input Module
41
QX10-TS AC Input Module
42
QX28 AC Input Module
43
QX40 DC Input Module (Positive Common Type)
44
QX40-S1 DC Input Module (Positive Common Type)
45
QX40-TS DC Input Module (Positive Common Type)
46
QX40H DC High-Speed Input Module (Positive Common Type)
47
QX41 DC Input Module (Positive Common Type)
49
QX41-S1 DC Input Module (Positive Common Type)
50
QX41-S2 DC Input Module (Positive Common Type)
52
QX42 DC Input Module (Positive Common Type)
53
QX42-S1 DC Input Module (Positive Common Type)
55
QX50 DC (Positive Common/Negative Common Shared Type)/ AC Input Module
57
QX70 DC Input Module (Positive Common/Negative Common Shared Type)
58
QX70H DC High-Speed Input Module (Positive Common Type)
59
QX71 DC Input Module (Positive/Negative Shared Common Type)
61
QX72 DC Input Module (Positive/Negative Shared Common Type)
62
QX80 DC Input Module (Negative Common Type)
64
QX80-TS DC Input Module (Negative Common Type)
65
QX80H DC High-Speed Input Module (Negative Common Type)
66
QX81 DC Input Module (Negative Common Type)
68
QX81-S2 DC Input Module (Negative Common Type)
69
QX82 DC Input Module (Negative Common Type)
70
QX82-S1 DC Input Module (Negative Common Type)
72
QX90H DC High-Speed Input Module (Negative Common Type)
74
3 Output Module Specifications
77
QY10 Contact Output Module
77
QY10-TS Contact Output Module
78
QY18A Contact Output Module (All Points Independent)
79
QY22 TRIAC Output Module
80
QY40P Transistor Output Module (Sink Type)
82
QY40P-TS Transistor Output Module (Sink Type)
83
QY41H Transistor High-Speed Output Module (Sink Type)
84
QY41P Transistor Output Module (Sink Type)
85
QY42P Transistor Output Module (Sink Type)
86
QY50 Transistor Output Module (Sink Type)
87
QY68A Transistor Output Module (All Points Independent, Sink/Source Type)
88
QY70 Transistor Output Module (Sink Type)
89
QY71 Transistor Output Module (Sink Type)
90
QY80 Transistor Output Module (Source Type)
91
QY80-TS Transistor Output Module (Source Type)
92
QY81P Transistor Output Module (Source Type)
94
QY82P Transistor Output Module (Source Type)
95
4 I/O Combined Module
97
QH42P I/O Combined Module
97
QX41Y41P I/O Combined Module
100
QX48Y57 I/O Combined Module
103
5 Interrupt Module
106
QI60 Interrupt Module
106
6 Blank Cover Module
108
7 Connectors
110
8 Specifications of Connector/Terminal Block Converter Modules
112
Connector/Terminal Block Converter Module Connection Diagrams
114
A6Tbxy36
114
A6Tbxy54
115
A6Tbx70
116
A6Tbx36-E
116
A6Tby36-E
117
A6Tbx54-E
117
A6Tby54-E
118
A6Tbx70-E
118
9 Spring Clamp Terminal Block
119
Spring Clamp Terminal Block I/O Module
119
Spring Clamp Terminal Block (Q6TE-18S, Q6TE-18SN)
119
10 Part Names
128
11 I/O Module Troubleshooting
134
Input Circuit Troubleshooting
134
Output Circuit Troubleshooting
137
Appendices
142
Appendix 1 External Dimensions
142
Appendix 1.1 I/O Modules and Blank Cover Module
142
Appendix 1.2 Connectors, Connector/Terminal Block Converter Modules
146
Appendix 1.3 Connector/Terminal Block Converter Module Cable
150
Appendix 1.4 Spring Clamp Terminal Block
151
Appendix 2 Compatibility with MELSEC-Ans Series I/O Modules
152
