8 INSPECTION AND MAINTENANCE
Mitsubishi Diesel Engine S16R & S16R2 OPERATION & MAINTENANCE MANUAL
162
Pub. No. K29001-00320 Revision: 1

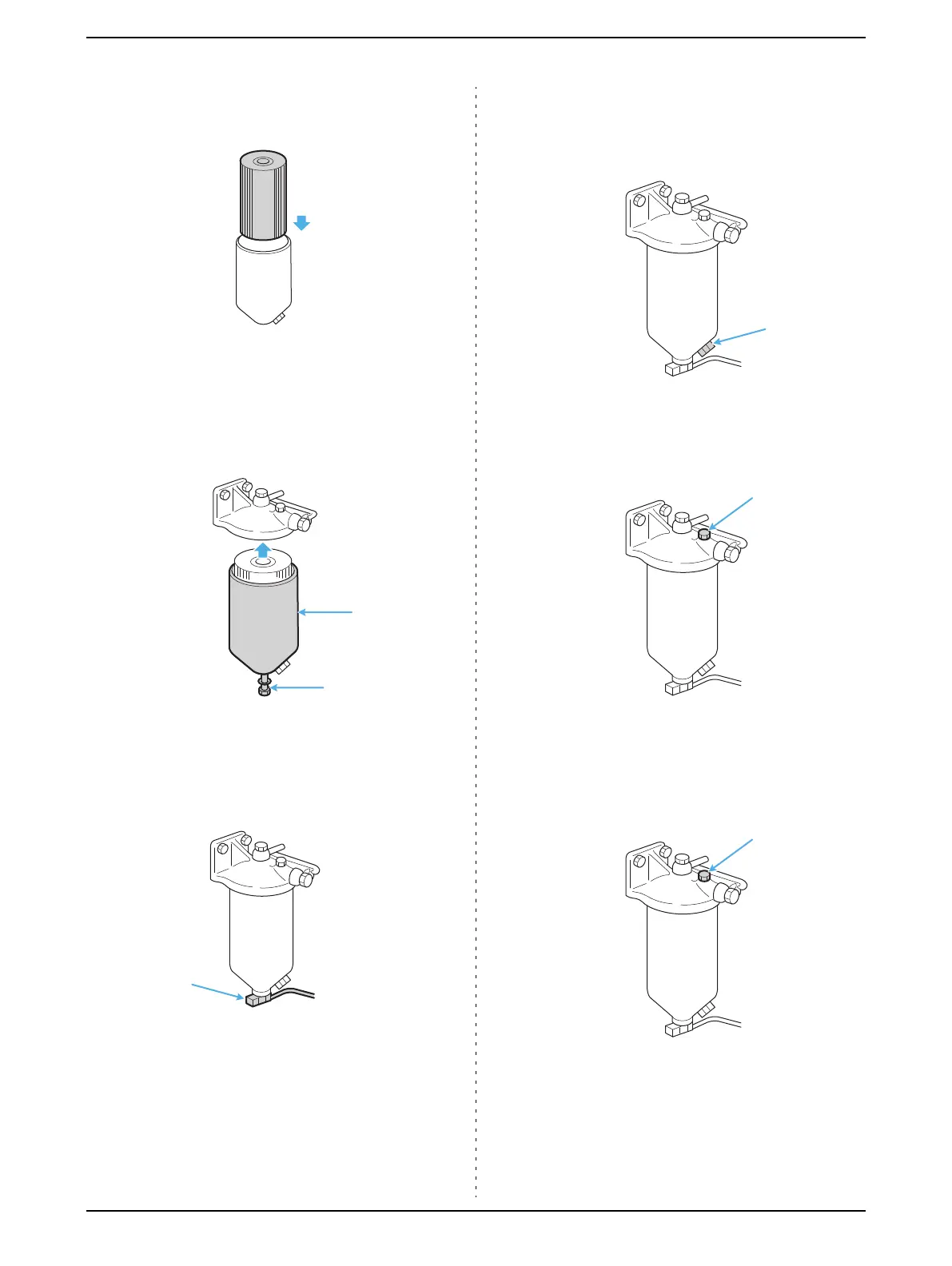

7 Install a new element in the case
along the center bolt.
Fig. 8-70 Element - Install
8 Install the case (5) in Step 7 to the
filter bracket. Fix it by tightening the
center bolt (4).
• Tool: Wrench
Fig. 8-71 Case - Install
9 Install the oil pipe (3) was removed
in Step 4.
• Tool: Wrench
Fig. 8-72 Oil pipe - Install
10 Install the drain plug (2) which was
removed in Step 3.
• Tool: Wrench
Fig. 8-73 Drain Plug - Install
11 Remove the air vent plug (1).
• Tool: Ring spanner
Fig. 8-74 Air Vent Plug - Remove
12 After filling the filter with engine oil,
install the air vent plug (1).
• Tool: Wrench
Fig. 8-75 Air Vent Plug - Install
(5)
(4)
(3)
(2)
(1)
(1)
