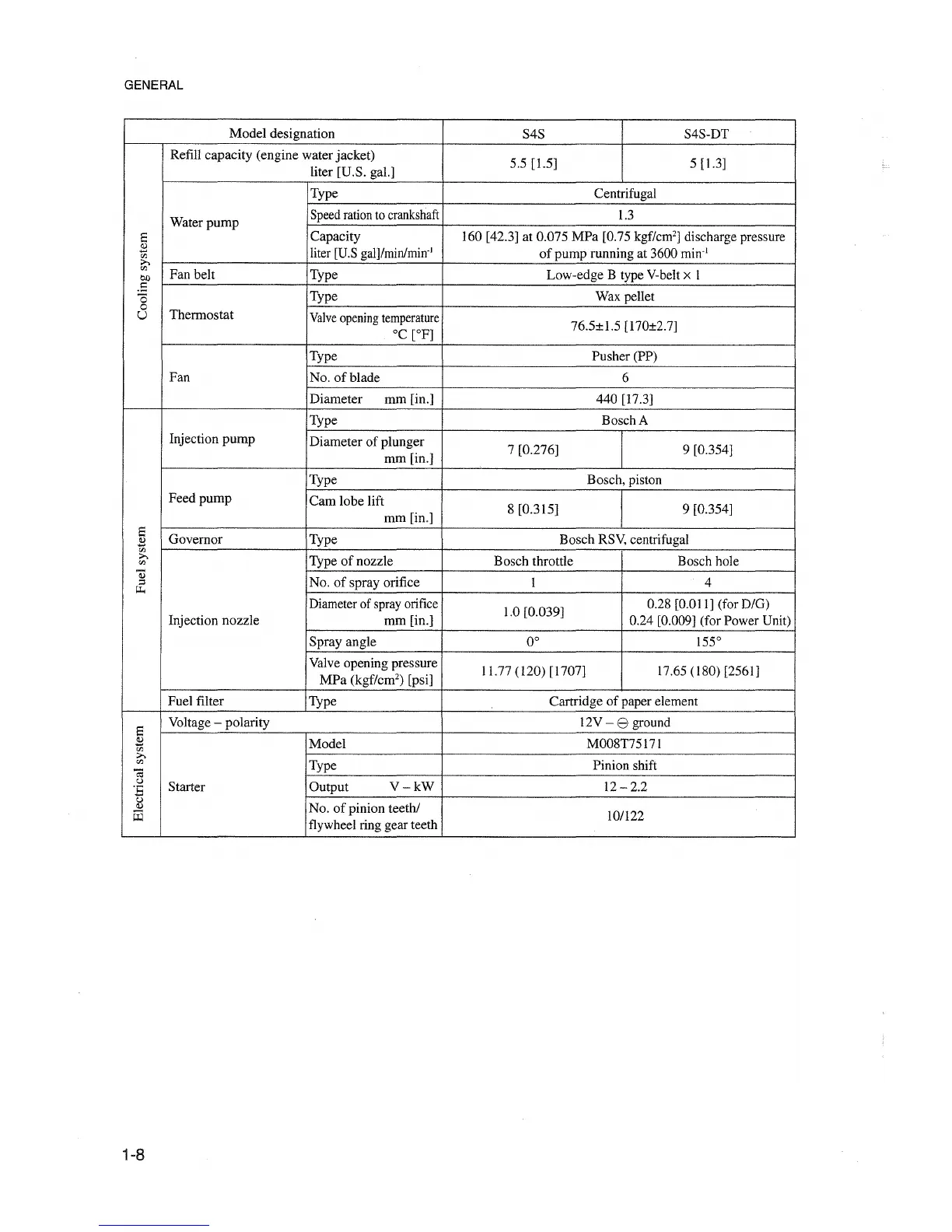

GENERAL
Model designation
S4S S4S-DT
Refill capacity (engine water jacket)
5.5 [1.5] 5 [1.3]
liter [U.S. gal.]
Type Centrifugal
Water
pump
Speedrationto
crankshaft
1.3
Ei
Capacity 160 [42.3] at 0.075 MPa [0.75 kgf/cm'] discharge pressure
2
liter [U.Sgalj/min/mirr'
of
pump running at 3600
min'
'Jl
;>,
'Jl
Fan belt
Type Low-edge B type V-belt x 1
eo
.S
Type Wax pellet
0
0
Thermostat
U
Valve
opening
temperature
°C
[OF]
76.5±1.5 [170±2.7]
Type Pusher (PP)
Fan
No.ofblade
6
Diameter
mm [in.]
440 [17.3]
Type Bosch A
Injection
pump
Diameter of plunger
7 [0.276] 9 [0.354]
mm [in.]
Type Bosch, piston
Feedpump
Cam
lobe lift
8 [0.315] 9 [0.354]
mm [in.]
Ei
Governor
Type Bosch RSV, centrifugal
2
co
;>,
Type
of
nozz1e
Bosch throttle Bosch hole
'Jl
Q)
No.
of
spray orifice
1 4
::l
~
Diameterof sprayorifice
1.0 [0.039]
0.28 [0.011] (for D/G)
Injection nozz1e
mm [in.]
0.24 [0.009] (for Power Unit)
Sprayangle
0° 155°
Valve opening pressure
11.77
(I20)
[1707] \7.65 (I 80) [2561]
MPa
(kgf/cm") [psi]
Fuel filter Type Cartridge of paper element
Ei
Voltage - polarity 12V - e ground
2
Model M008T75171
'Jl
;>,
'Jl
Type
Pinion shift
ë<i
Cl
Starter Output
V-kW
12 - 2.2
'5
Cl
Cl)
No.
of
pinion teeth/
ü3
flywheel ring gear teeth
lO/l22
1-8
