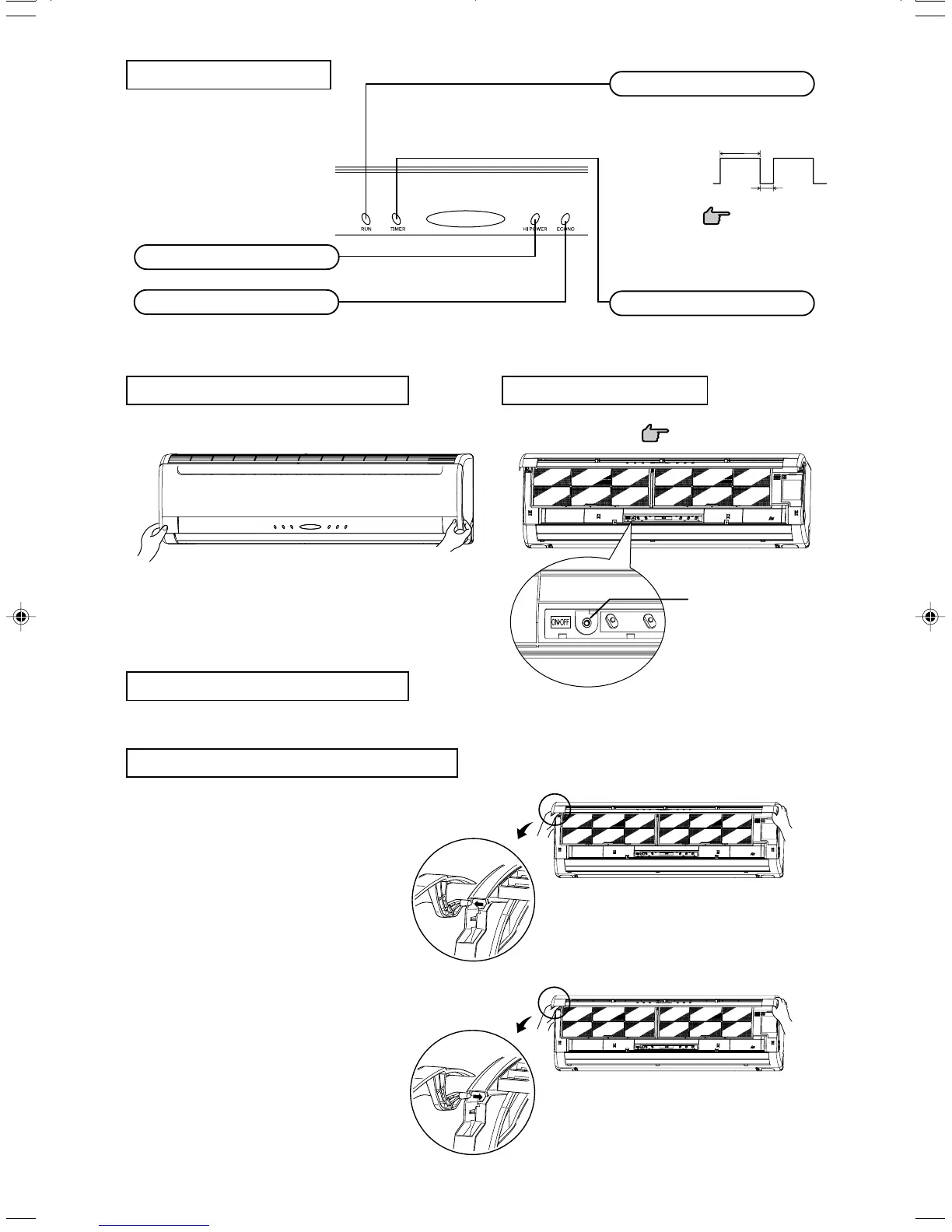

Unit indication section
How to open the air inlet panel
Push both sides evenly and press further lightly at the center.
Place fingers at the recesses on both sides of the panel and pull up the panel
to this side so that it will be opened by about 60 degrees.
Unit ON/OFF button
Secure either the upper or lower edge of the air inlet panel by lightly pushing it
in, and then close the panel.
When removing the air inlet panel for internal cleaning or others, open the
panel by 80 degrees and then pull it to this side.
In emergencies, this button can be used for turning on/off the unit when re-
mote control is not available.
Page 15
Removal, installation of air inlet panel
ECONO light (orange)
Illuminates during ECONOMY operation.
HI POWER light (green)
Illuminates during HIGH POWER operation.
RUN light (green)
• Illuminates during operation.
• Blinks at the ‘CLEAN operation’.
Page 15
TIMER light (yellow)
Illuminates during TIMER operation.
Unit ON/OFF button
CLEAN operation
ON
OFF
3 sec.
1 sec.
How to close the air inlet panel
