16.3 Reference drawing of installation

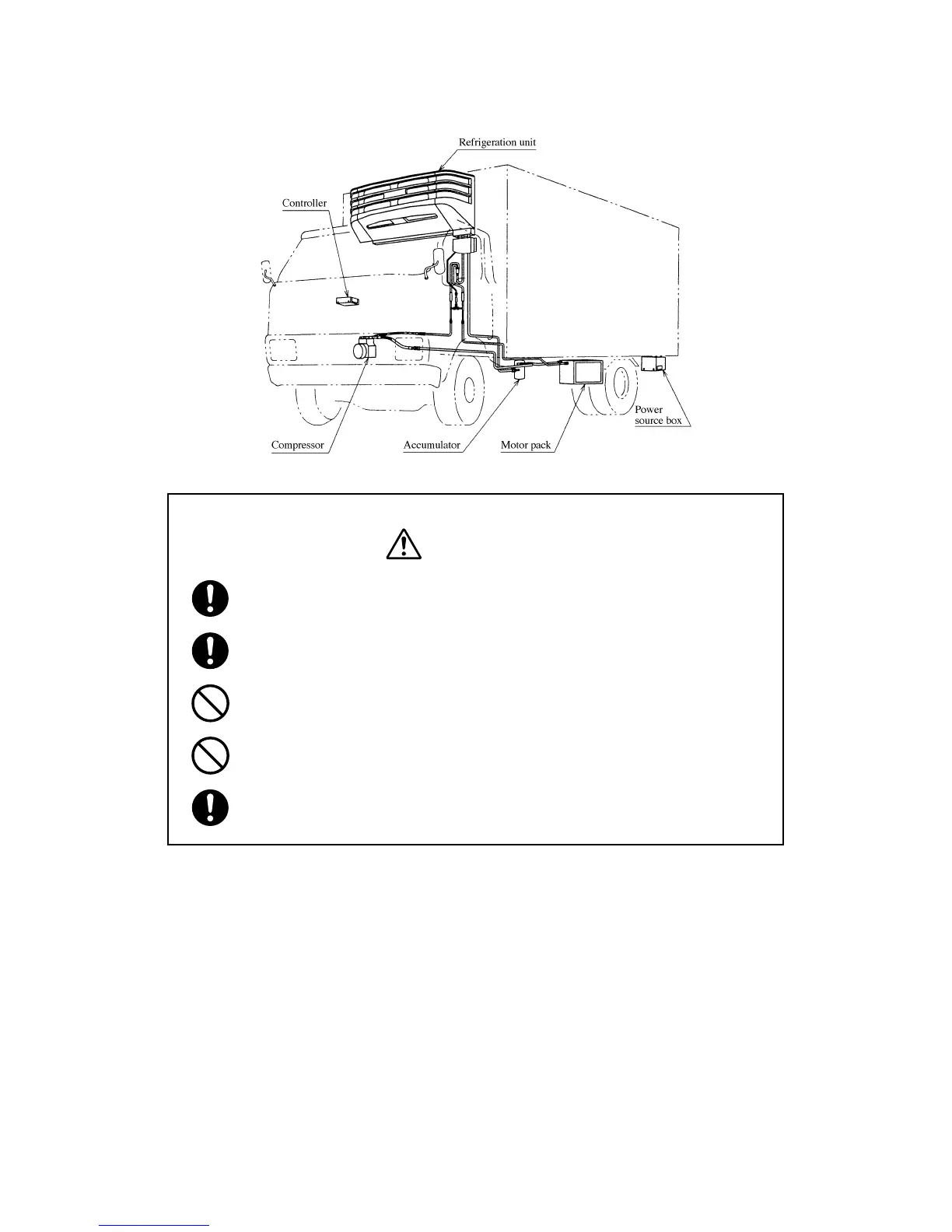

(1) Overall installation drawing
Installation notice
WARNING
1. Installation must be done properly according to the installation drawing.
Improper installation may cause refrigerant leakage. Electric shock and/or fire.
2. Installation must be done properly to carry the weight of the unit. The unit may fall down
if not properly installed and causes accident and/or injury.
3. Never adjust the setting of safety devices.
Improper adjustments may cause explosion and/or fire.
4. Avoid contaminating the refrigerant circuit with air. It may cause abnormal high pressure
which may lead to explosion and/or injury.
5. Installation drawing must be followed. Any modification may cause electric shock, fire,
explosion and/or injury.
Notes:
1. This installation drawing is for models TDJ300D and TDJ430D.
2. Drawing on the upper shows illustration layout of models TDJ300D and TDJ430D.
3. The fabricated or renovated structure of the van must be designed for the installation of refrigeration units.
4. Either sides of the van must be strong enough to support the refrigeration equipment to be installed.
5. Balance of the vehicle must be considered when installing the refrigeration unit to maintain stable running
condition.
Before installing the refrigeration unit, check the location of refrigeration unit on the body of the van, confirm that
the location is high enough where the cabin can be tilted.
6. Check carefully the total condition of the installation using check sheet for trial running.
7. In this installation drawing, part no. of each part are shown in the table on pages 87.
71
Installation layout
