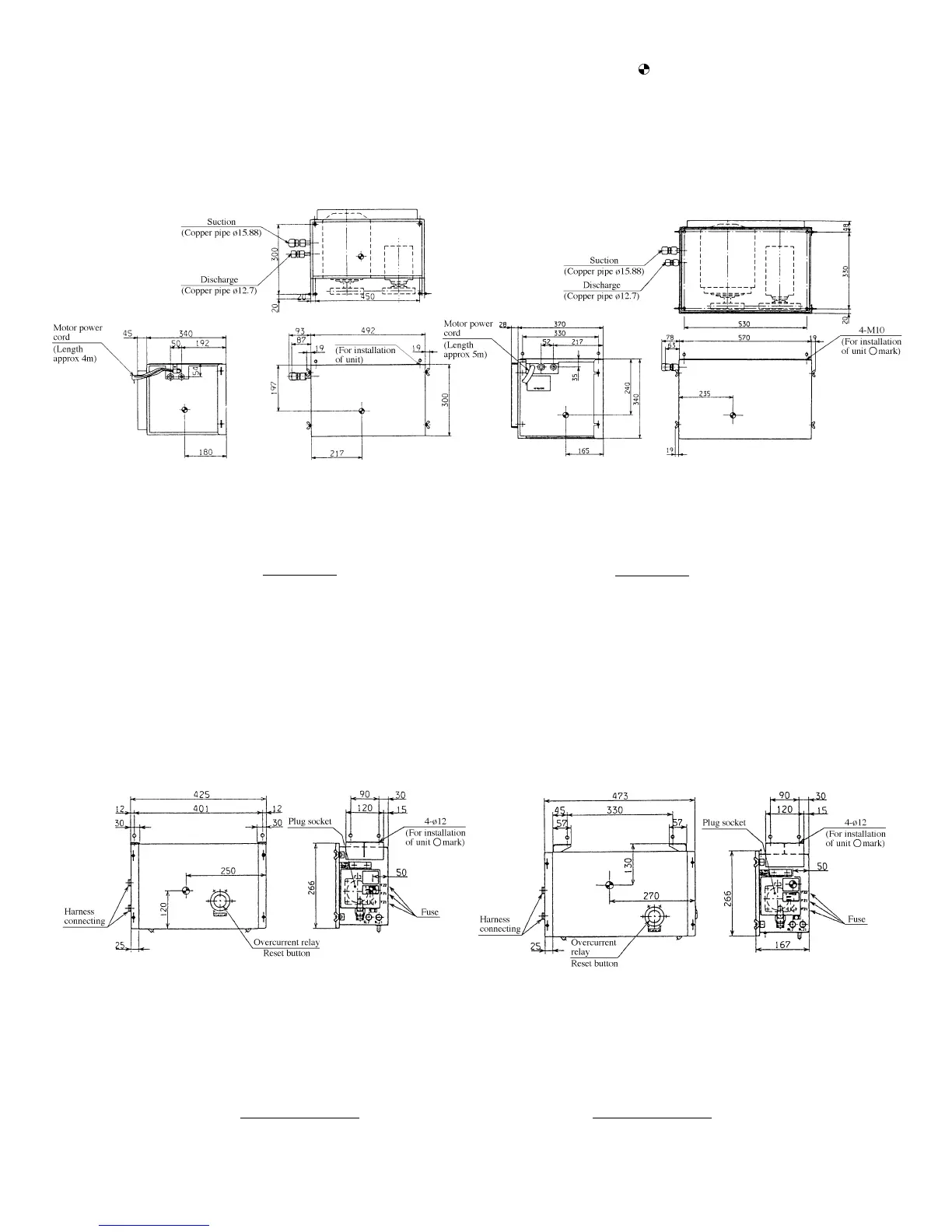

Mitsubishi TDJ430D - Motor Pack Dimensions; Power Source Box Dimensions

(d) Motor pack
1) TDJ300D
Motor pack
54kg
(e) Power source box
1) TDJ300D
Power source box
17kg
– 76 –
Note:
Mark indicates the center of gravity.
Unit: mm
2) TDJ430D
Motor pack
85kg
2) TDJ430D
Power source box
19kg
