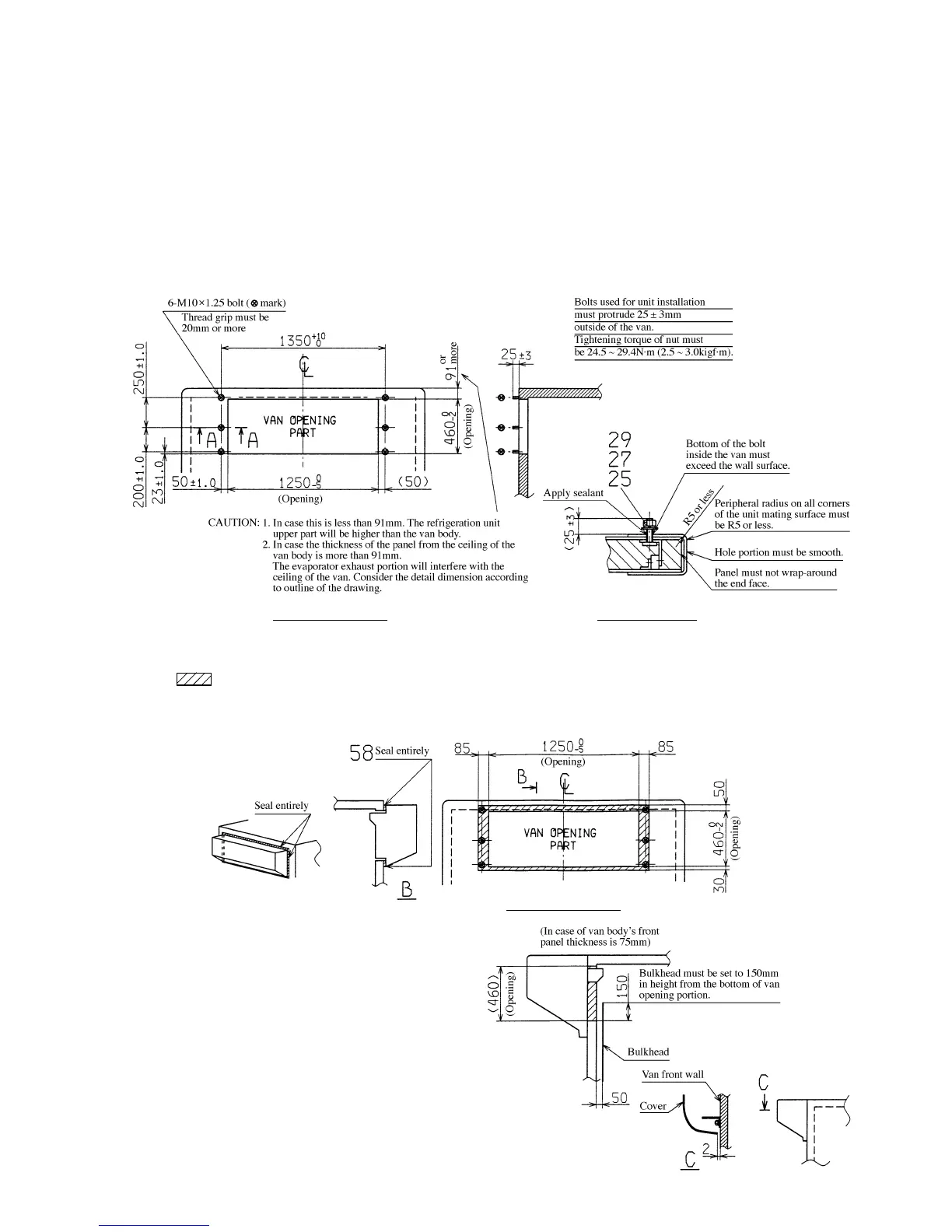

(4) Van body fabrication drawing Unit: mm
Must refer to this drawing when fabricating van body
(1) Van body size and interference with cabin must be considered using unit outline drawing.
(2) Balance of the vehicle must be considered when installing the refrigeration unit to maintain stability during
operation.
(3) The fabricated and renovated structure of the van must be designed for the installation of refrigeration unit,
weighing 72kg for TDJ430D & 67kg for TDJ300D. (Must withstand vibration shock of 7G).
(4) The bolt must be securely tightened.
1. Position of mounting hole and bolt holes for the unit
Mounting hole and bolt holes for the unit must restrict heat transfer.
2. Unit mating surface
1. portion must be smooth in order to keep tightness.
Furthermore, unit mounting bolt face and unit mating surface must be aligned and smooth.
2. After the installation, seal the gap between the unit and the van to maintain airtightness.
3. Inside of van body
(1)Install the protection guard to prevent the unit from
hitting the bulk.
(2)Install the bulkhead and keep the air inlet space.
Refer to dimension below.
4. Cover
(1)Provide a clearance of 2mm from unit mating surface
to the cover end face. (Right figure)
– 77 –
Front view of van
Front view of van
A-A
(Unit installation)
To Next Page
