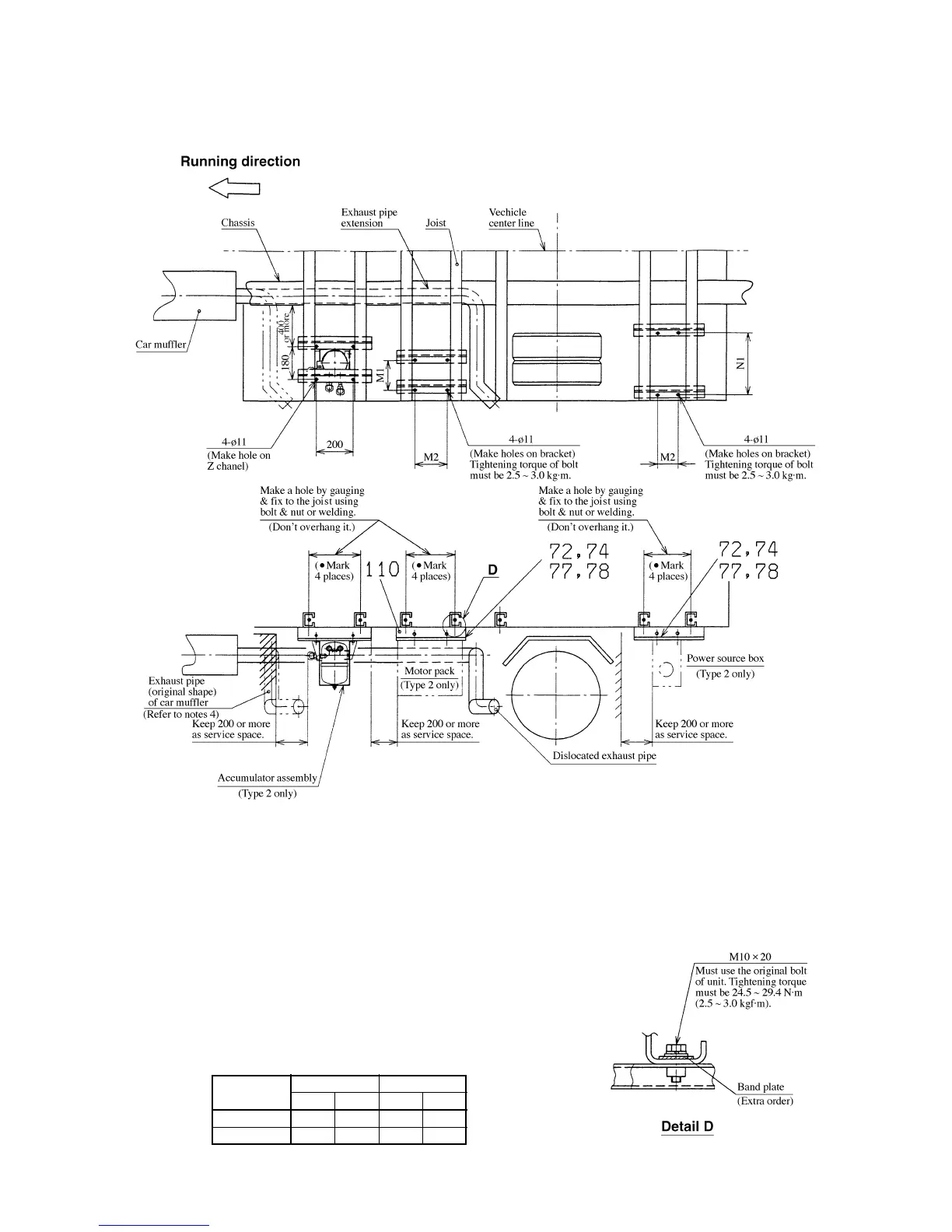

(5) Motor pack, power source box and accumulator installation drawing Unit: mm
Notes:
1. The fabricated or renovated structure of the van must be designed for the installation of motor pack, accumulator
unit and power source box. (Type 2 only)
2. Dimensions and limitations indicated in the layout must be followed in case of parts installed are in different
position from this drawing.
3. The bolts must be securely tightened.
4. If the exhaust pipe port of the car muffler is present in front of the
motor pack and accumulator, the unit can not show its performance.
Therefore, dislocate the exhaust pipe to be positioned behind the motor
pack and accumulator.
– 78 –
Model
TDJ300D
TDJ430D
M1
300
330
M2
450
530
N1
401
330
N2
90
90
Motor pack
Power source box
