Mitutoyo IT-007R User Manual

No. 99MAM016B
1-2

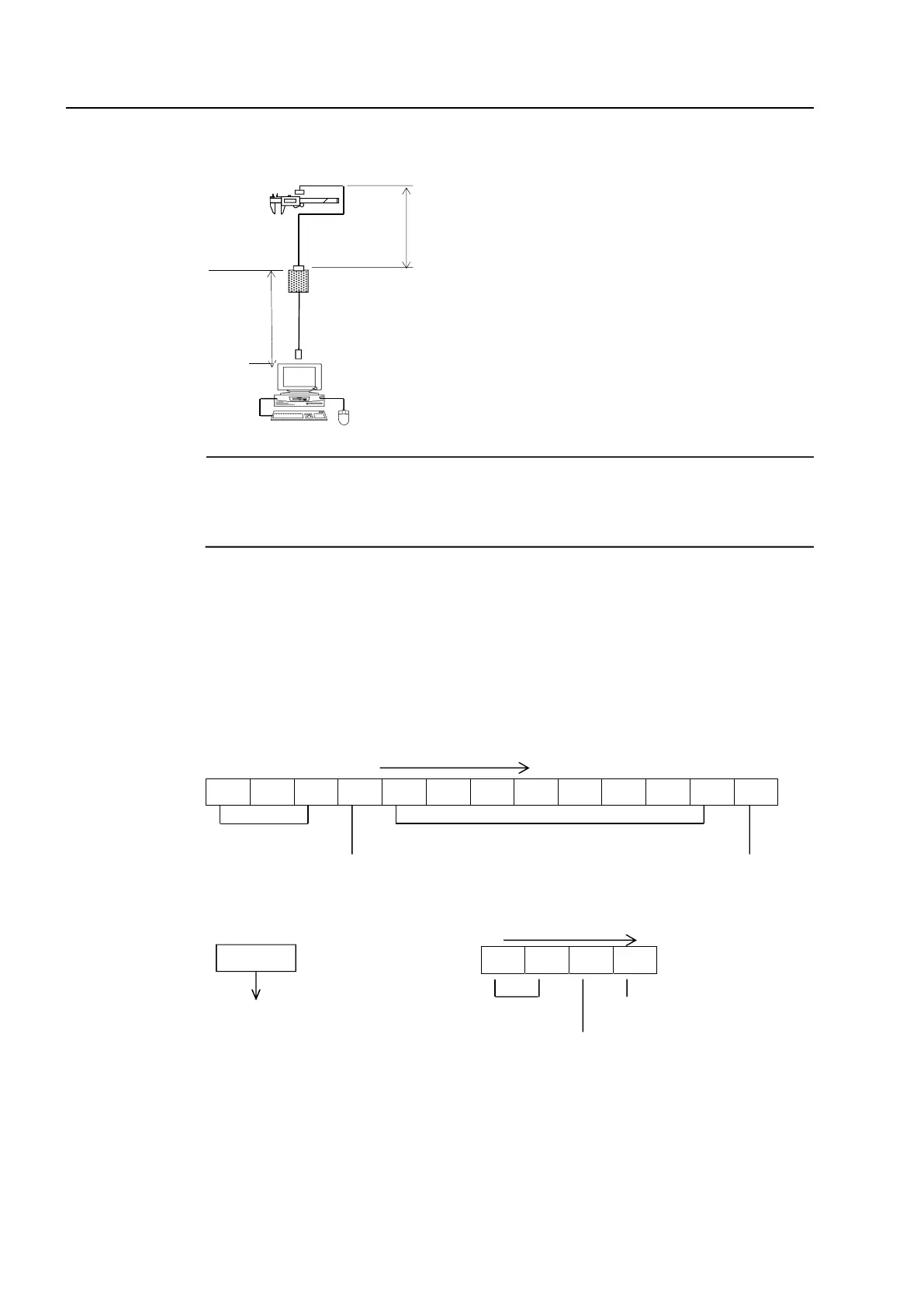

1.1.3 System connection method
CAUTION
Depending on the personal computer used, a commercial conversion
connector/cable may be required at (A) .
Use straight-type conversion cable.
1.1.4 Data acquisition method
• Press the DATA button on the measuring instrument, Digimatic (SPC) cable, or Input
Tool main unit so the personal computer can read the data. The data can also be
acquired if the data request signal (a single, optional character) is sent from the
personal computer.
＊ Data format
1, Data output
Output order
d1 d2 d3 d4 d5 d6 d7 d8 d9 d10 d11 d12 d13
2, Data format example 3, If an error code is outputted
Display Output order
d1 d2 d3 d4
Output data
01A+000.1234
CR(carriage return)
LSD(floating-point number)
Sign,"+"or"-"
"01A"(fixed)
0.1234
"91"
(
fixed
)
Error code number
1: If data is not inputted
2: If input data is not formatted
CR(carriage return)
Measuring instrument
Digimatic (SPC) cable
Input Tool
Mouse
Ａ
Keyboard

Mitutoyo IT-007R Specifications

General

Brand	Mitutoyo
Model	IT-007R
Category	I/O Systems
Language	English
