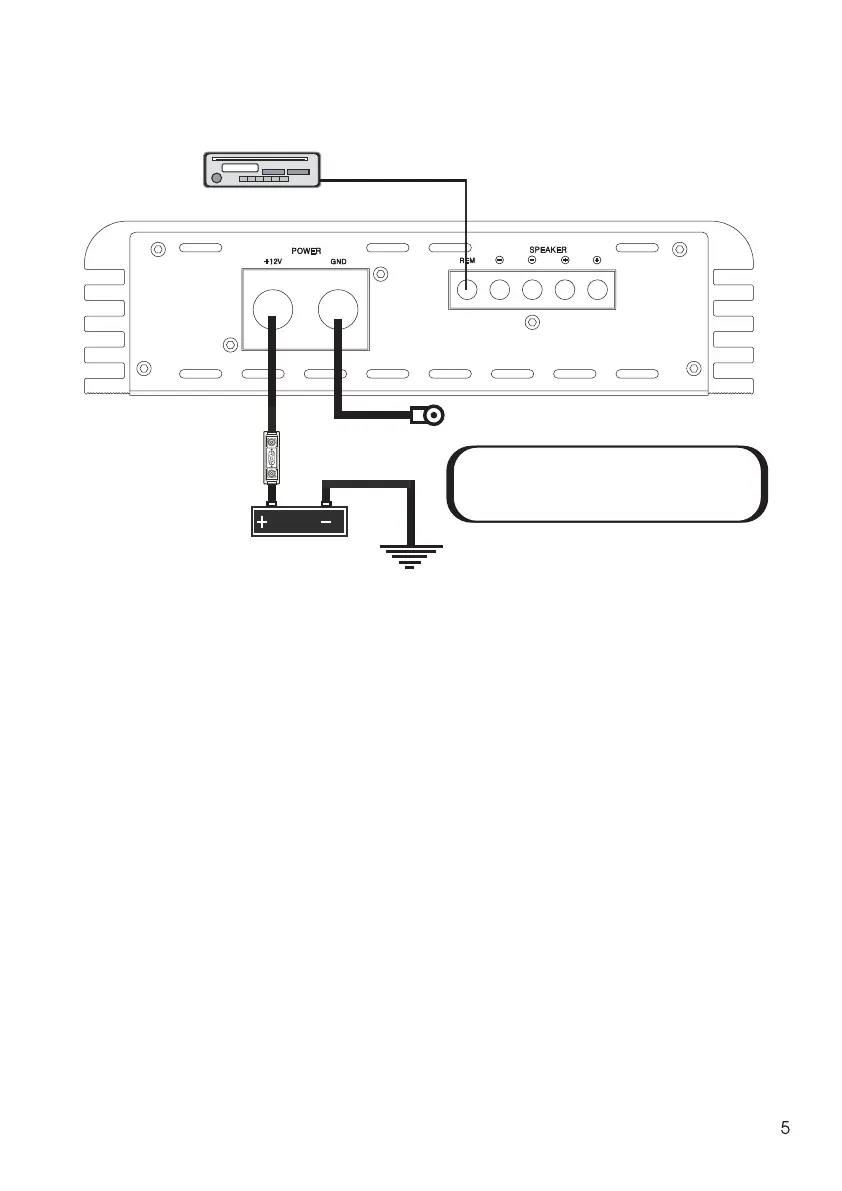

Ground
Remote turn on
FUSE
250A
Main Battery
12V
Headunit
+12V, GND, REM CONNECTION DIAGRAM
4-4. SPEAKER CONNECTION
Run 12 AWG speaker connecting cables from your speakers to Digital-series
amplifiers' mounting location.
Keep speaker cables away from power cables and Digital-series amplifier's input
cables.
Use grommets anywhere the cables have to pass through the holes in the metal frame
or sheet metal.
Connect to the speakers according to the type of the terminals on each speaker.
Strip 3/8" of insulation from the end of each cable and twist the cables strands
together tightly.
Make sure there insulation from the end of each cable and twist the cables together
tightly.
Make sure there are no stray strands that might touch other cables or terminals and cause
a short circuit.
Crimp spade lugs over the cable ends or tin the ends with solder to provide a secure
termination.
Connect the cable ends to Digital-series amplifiers as speaker system diagram.
Single Unit Fuse Rating & Impedance
μDB-2500.1D Comp : 250A & 1 ohm
μDB-5000.1D Comp : 450A & 1 ohm
