5. DAISY CHAIN CONNECTION
Daisy chain connection makes 2pcs of Digital-series amplifiers linkable to 2 ohm and
doubles the power of single Digital-series amplifier's 1 ohm power.
Single unit of all Digital-series amplifier's minimum working impedance is 1 ohm.
Daisy chain connection of 2 pcs of Digital-series amplifier's minimum working impedance is
2 ohm. Please read the following connection steps and diagram carefully to make
the correct connection.
5-1. FUNCTIONAL SIDE CONNECTION.
MASTER AMPLIFIER : Digital-series amplifier connected from headunit is called as master
amplifier.
SLAVE AMPLIFIER : Digital-series amplifier connected to master amplifier is called as slave
amplifier
Step 1. Connect headunit to master amplifier's input and set master amplifier's
Output master / Input slave selector switch to OUTPUT MASTER position.
Step 2. Set slave amplifier's Output master/ Input slave selector switch to INPUT SLAVE position.

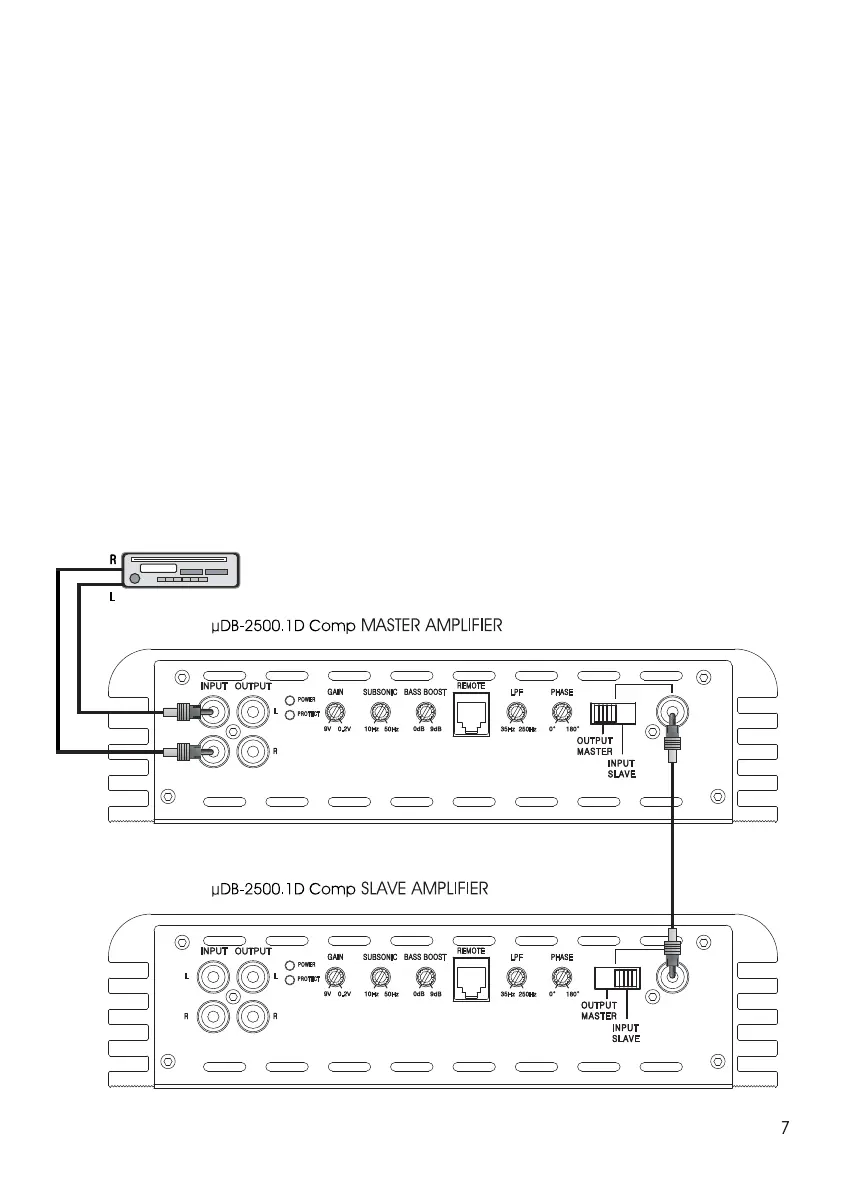

Step 3. Connect Rca cable from master amplifier's output master / input slave rca jack to
slave amplifier's rca jack as below diagram.
