Mocka Kitchen - Door Hinge and Panel Installation; Step 19: Mount Hinges and Doors; Step 20: Attach Main Back Panel and Hinges

19
20

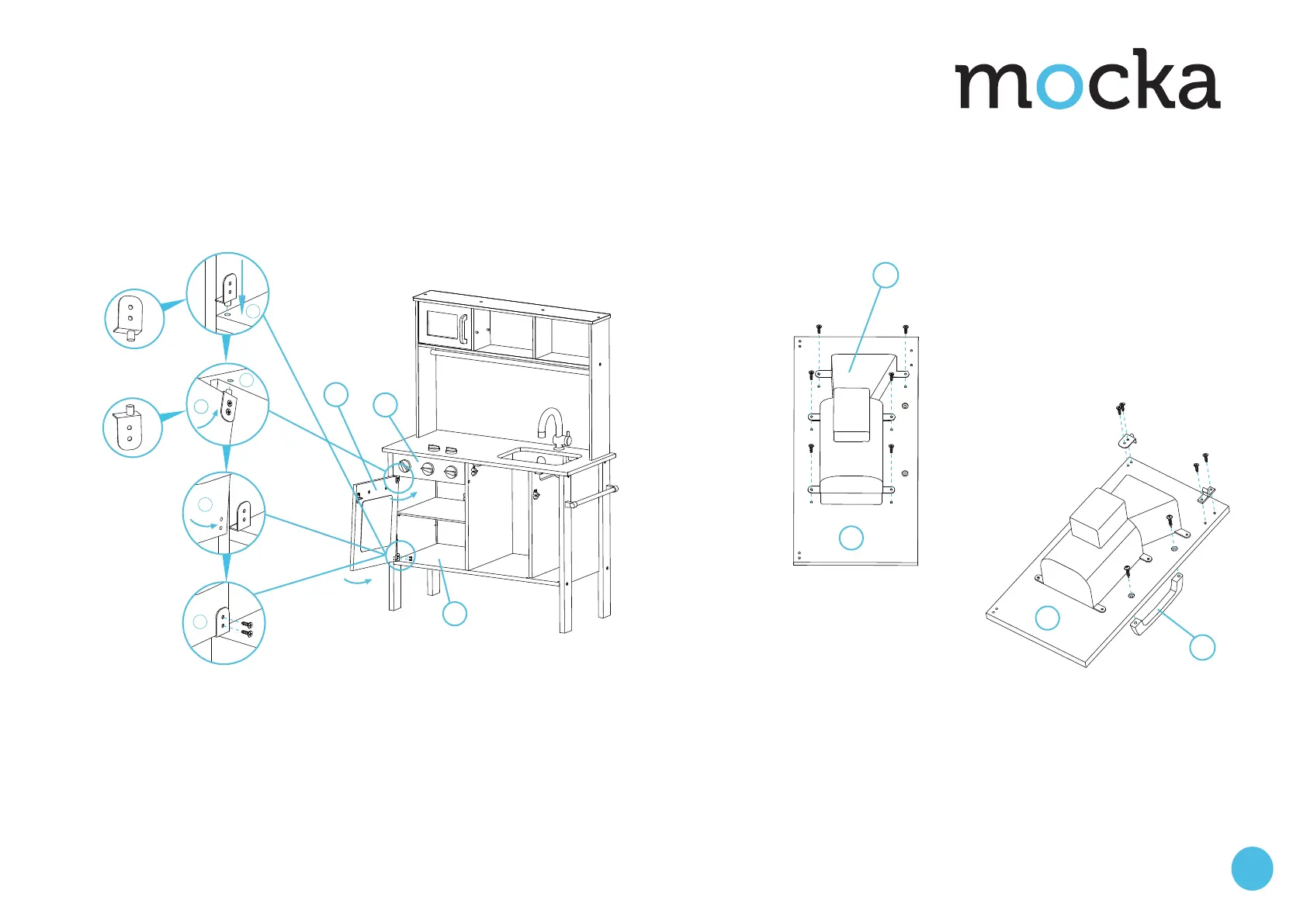

Place 1x hinge (F) into panel [9].
Insert hinge (E) into panel [1] and swing panel [2] down into hinge (F).
Attach hinge (F) to panel [2] with 2x screws (D).
Tighten all screws with a screwdriver.
Attach panel [31] to panel [3] with 6x screws (D).
Attach 1x hinge (F) to panel [3] with 2x screws (D).
Attach 1x latch (H) to panel [3] with 2x screws (D).
Attach panel [24] to panel [3] with 2x screws (B).
Tighten all screws with a screwdriver.
9
1
2
F
E
9
1
E
F
D
D
2
F
2
2
2
D
3
3
24
31
D
D
D
D
D
D
D
D
D
F
H
B
B
17
18
Slide panel [1] into panel [11] and attach with 1x screw (A).
Attach panel [7] to panels [1], [9] and [13] with 5x screws (A).
Tigthen all screws with a screwdriver.
Slide panel [5] onto shelf supports (K) on panels [7] and [11].
9
7
5
1
13
11
A
A
A
A
A
A
7
11
