Mocka Kitchen - Connecting Main Cabinet Sections; Step 15: Attach Panel [13] to Base; Step 16: Assemble Cabinet Frame

13
14
Attach 1x latch (H) to panel [10] with 2x screws (D).
Attach 1x hinge (E) to panel [10] with 2x screws (D).
Attach panel [25] to panel [10] with 2x screws (B).
Tighten all screws with a screwdriver.
Place 1x hinge (F) into panel [16].
Insert hinge (E) into panel [19] and swing panel [10] down into hinge (F).
Attach hinge (F) to panel [10] with 2x screws (D).
Tighten all screws with a screwdriver.
D
10
25
D
D
D
B
B
E
H
F
E
16
19
E
F
D
D
10
10
F
10
10
16
19
15
16

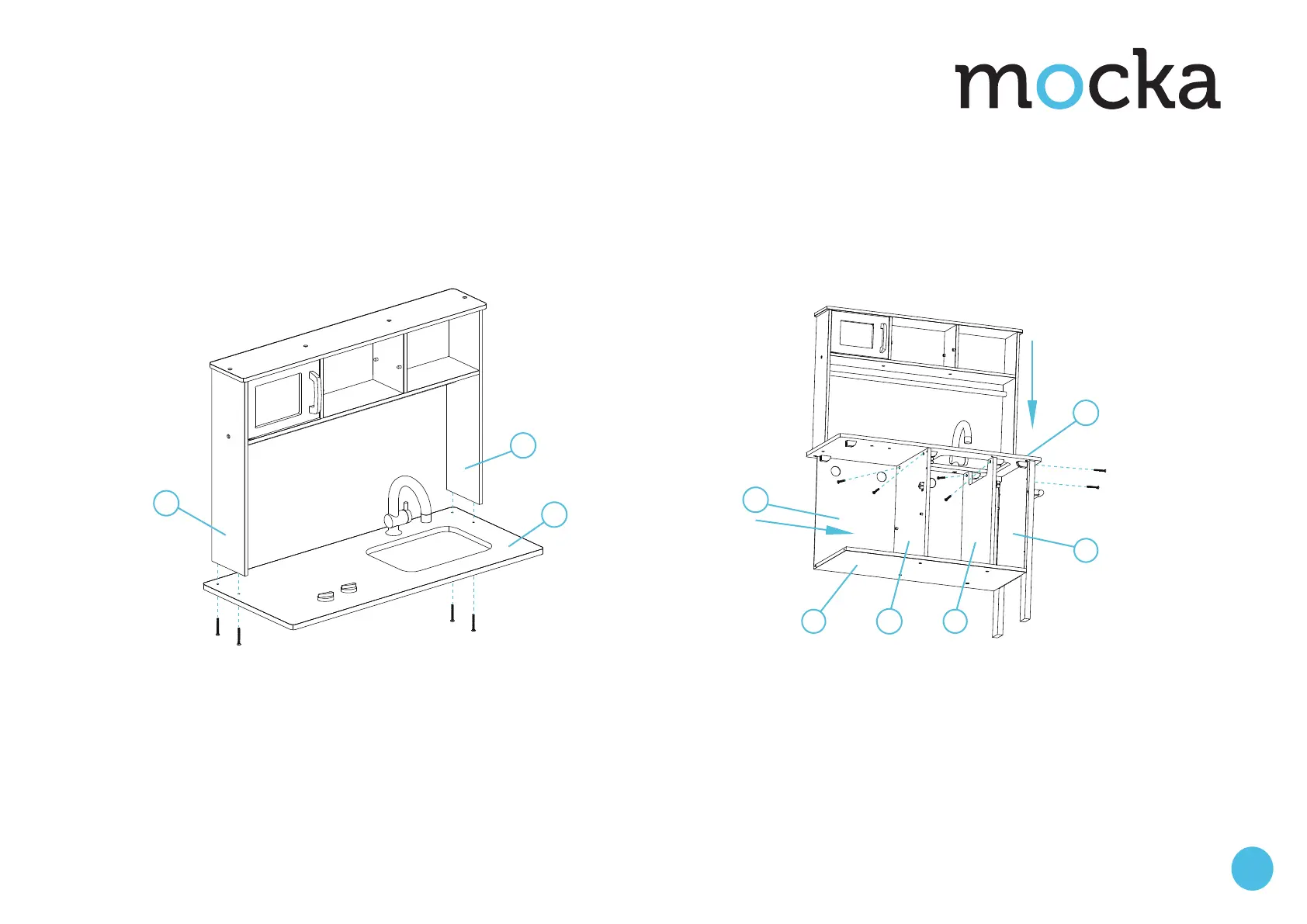

Attach panel [13] to panels [14] and [15] with 4x screws (A).
Tighten all screws with a screwdriver.
Slide panel [12] into the back of panels [9] and [11].
Attach panel [13] to panels [6], [8] and [11].
Attach panel [13] to panel [8] with 2x screws (A).
Attach panel [13] to panels [6] and [11] with 4x screws (B).
Tighten all screws with a screwdriver.
13
14
15
A
9
12
13
A
A
A
A
A
B
B
B
B
8
6
11
