Modena ES 10D - Appendix: Wiring Diagram (Continued); Wiring Diagrams for ES 15 DR;30 DR and ES 20 SR

41
Picture 18
Transformer
LED
Display
Temperature Sensor
PCB
Heating Element
Relay
Thermal
Cut-out
Relay
L
E
N

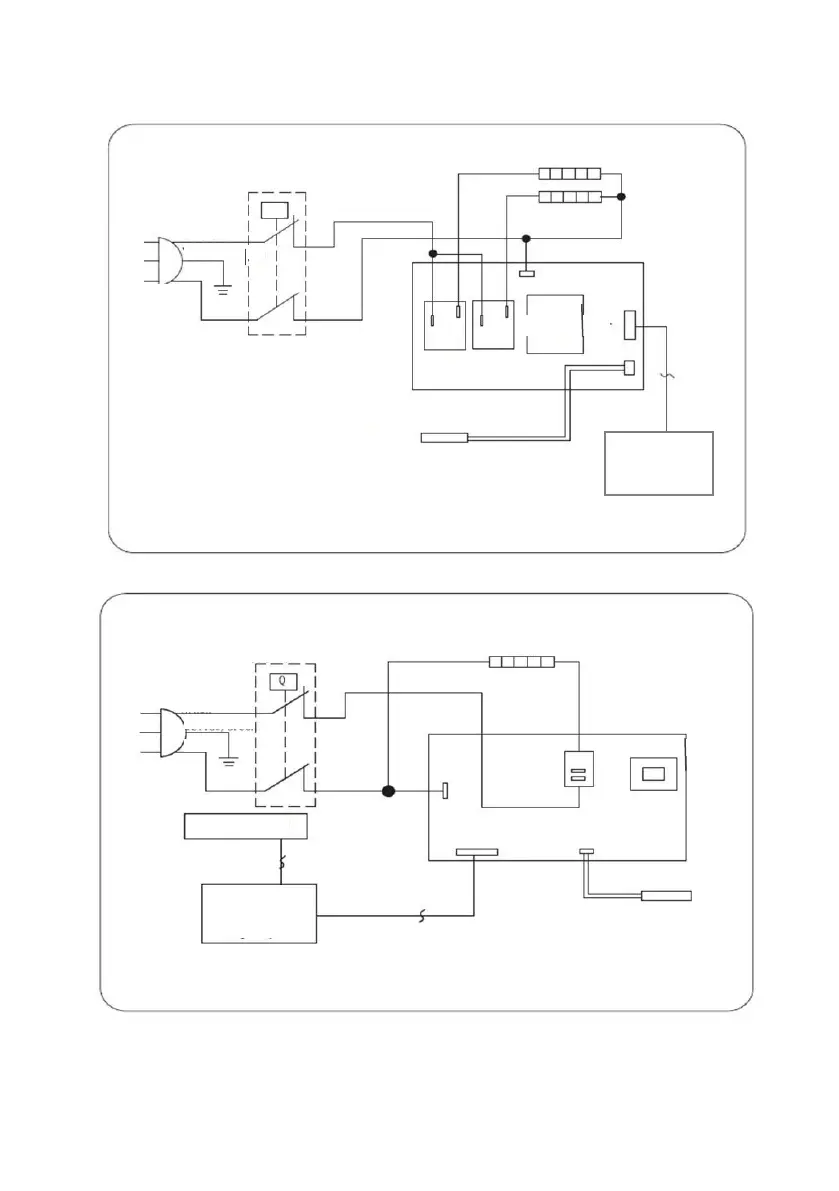

WIRING DIAGRAM ES 15DR / ES 30DR
WIRING DIAGRAM ES 20SR
Heating Element
Transformer
PCB
Thermal
Cut-out
Indicator Light
LED
Display
Temperature Sensor
N
E
L
Remark:
L : Brown
E : Yellow/Green
N : Blue
Remark:
L : Brown
E : Yellow/Green
N : Blue
