Modena ES 10D - Appendix: Wiring Diagram; Wiring Diagram for ES 10 D, 15 D, 30 D

40

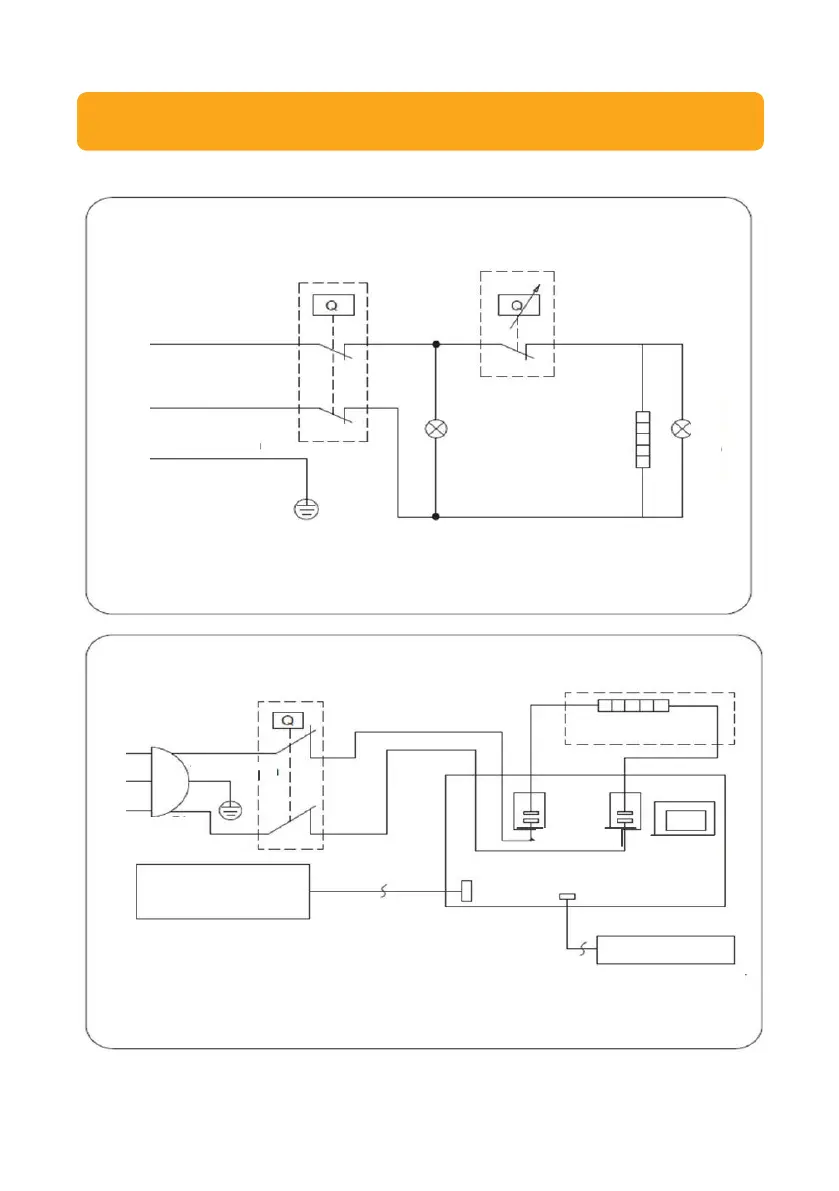

APPENDIX: WIRING DIAGRAM
Thermal
Cut-out
Thermostat
Power
Indicator
Brown
Blue
Yellow/Green
L
N
E
Heating Element
Heating Indicator
WIRING DIAGRAM ES 10D, ES 15D, ES 30D
WIRING DIAGRAM ES 10DR
Thermal
Cur-out
Heating Element
LED Display
Transformer
Temperature
Sensor
Relay
Relay
PCB
L
N
E
Remark:
L : Brown
E : Yellow/Green
N : Blue
