Gas Pipe GI 10 S installation
The size of the threaded bolt that connects the gas inflow pipe to the water heater with the pipe is
diameter G1/2.

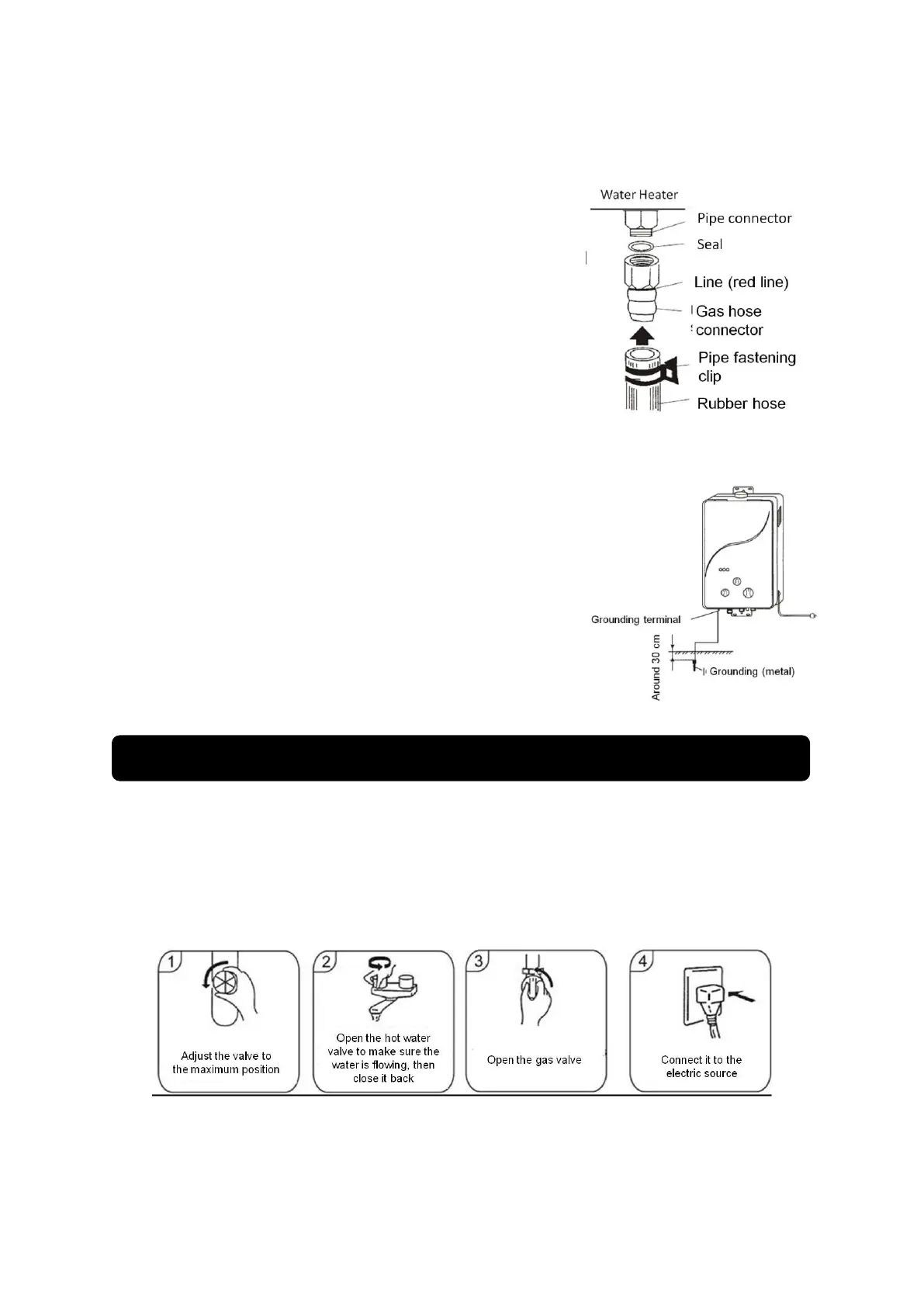

- Connecting to the LPG tube
1. Install the connector that is in the package to the
gas inflow valve that is on the water heater (make
sure the seal has been installed), then connect to
the hose for gas (rubber hose) with the diameter
of 9.55mm like in the picture.
2. Make sure the usage of the gas regulator is with
the right pressure (the gas pressure standard is
2800Pa for LPG, 2000Pa for nature gas)
- Connecting to the gas pipe
1. It is a must to use the gas hose or standard metal
pipe.
2. The gas valve must be installed to the gas inflow
track.
Installation of the electricity part GI 10 S
AC 220v, 50Hz
Place the plug and socket in the dry palce and free from
dew. Do not connect the electricity tools to the electric
source with wet hands. Make sure the socket of the water
heater has been grounded correctly. Safety for the electric
leak must have been installed.
- Grounding (Earthing)
Make sure the socket at the power supply has been
grounded correctly. Connect the copper wire to the ground
terminal on the water heater. Do not connect the
grounding wire with the grounding circuit of the gas pipe,
water valve pipe or of other electric tools that has safety
tool for gas leak.
Preparation
GI 6/6S
1. Place 2 pieces of battery.
2. Open the gas inflow and the water inflow valve.
GI 10 S
Check the water flow
4. Open both the cold water valve and hot water valve, make sure the cold water is flowing from
the hot water valve,then close it.
5. Open the gas valve.
6. Connect it to the electric source.
