Modern Forms Renegade 52 - Page 19

FR-W2001
Renegade Instructions 19

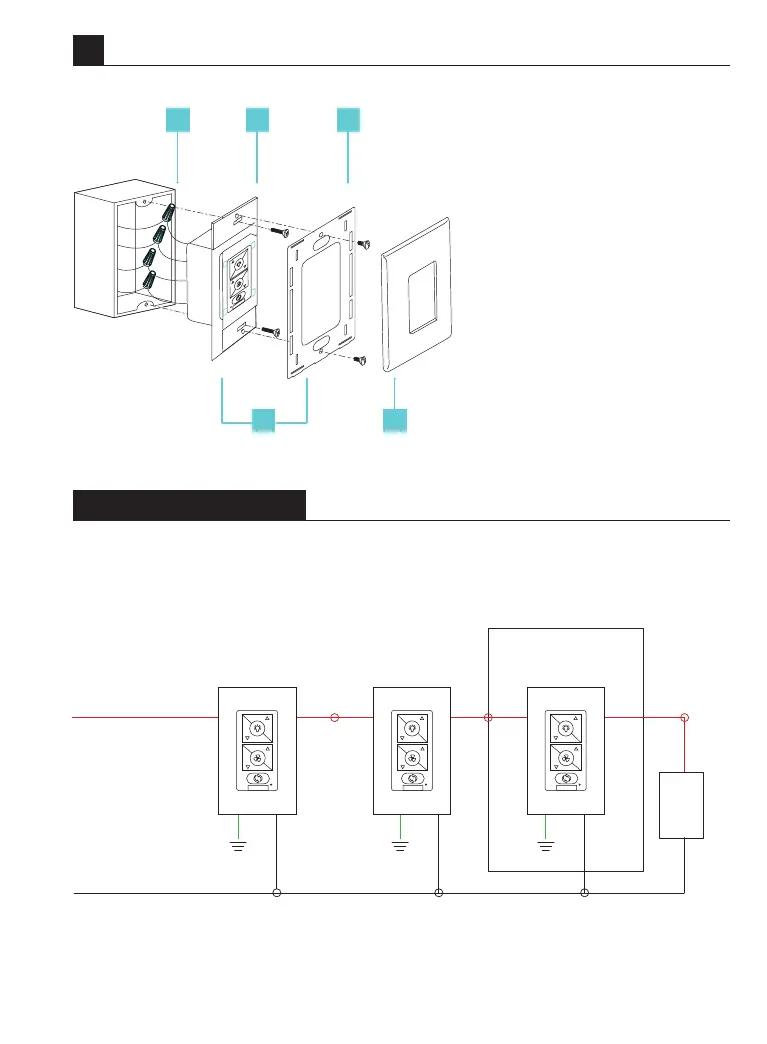

6A
Multi-location wiring
1 2 3
54
1. Wall Outlet
2. Wall Control
3. Wall Mounting Plate
4. Mounting Plate Screws
5. Wall Plate
Individually pair each of the wall controls with the fan
receiver using the pairing instruction. See page 25.
Line/Hot
Red
Green (Green or Bare)
Wall Controller 1 Wall controller 2 Wall Controller 3
If Applicable
FAN
Neutral/White
