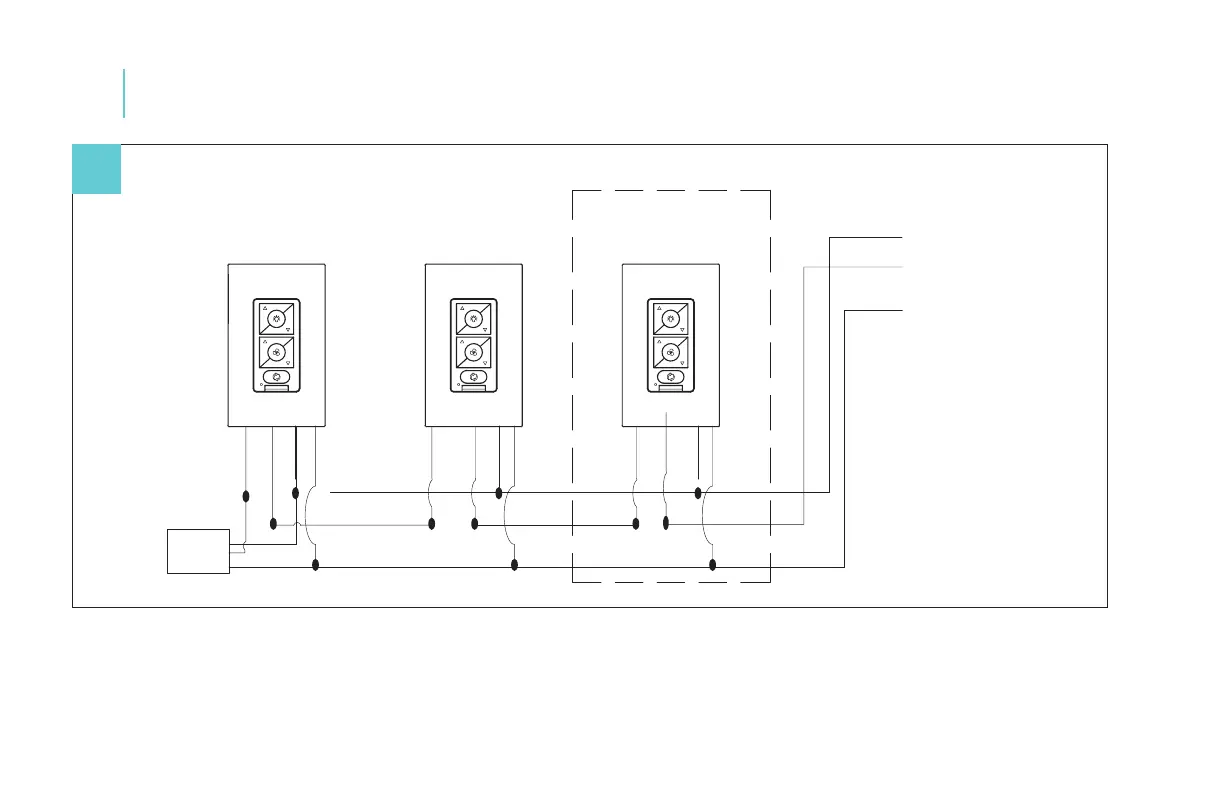

Modern Forms Renegade - Multi-Location Wall Control Setup; Multi-Location Wiring Diagram

FR-W200116
Wall Controller 1 Wall Controller 2 Wall Controller 3
if Applicable
Green
Green to Fan
Black to Fan
White to Fan
Green White Black Red
Black Black White Red Red White
Green Green
HOT IN
11
1. Install the wall control using the wiring diagram above.
2. Individually pair each of the wall controls with the fan receiver using the pairing instruction.
08 Installing the Wall Control
