TipTop Instructions 23

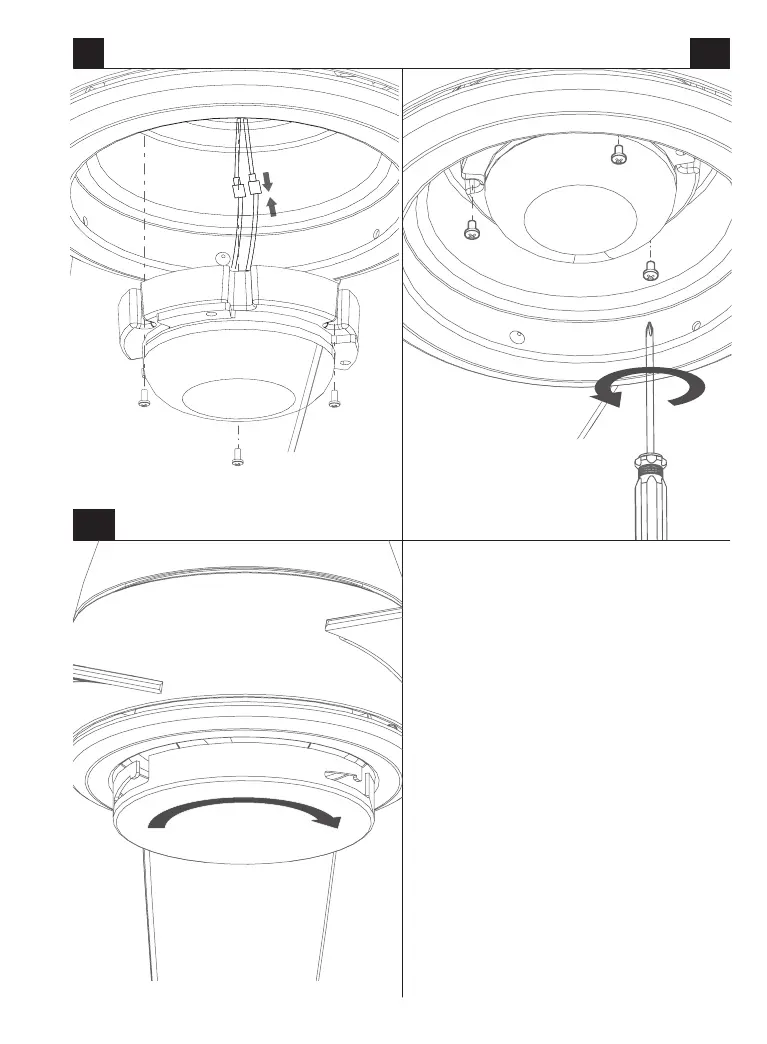

1. Attach LED wires from motor assembly to luminaire module
(Fig. 10).
2. Secure the luminaire module with the 3 screws to the
adapter plate (Fig. 10A). Use Part F.
3. Install shade without over-tightening (Fig. 10B).
10
10B
10A
