- 9 -

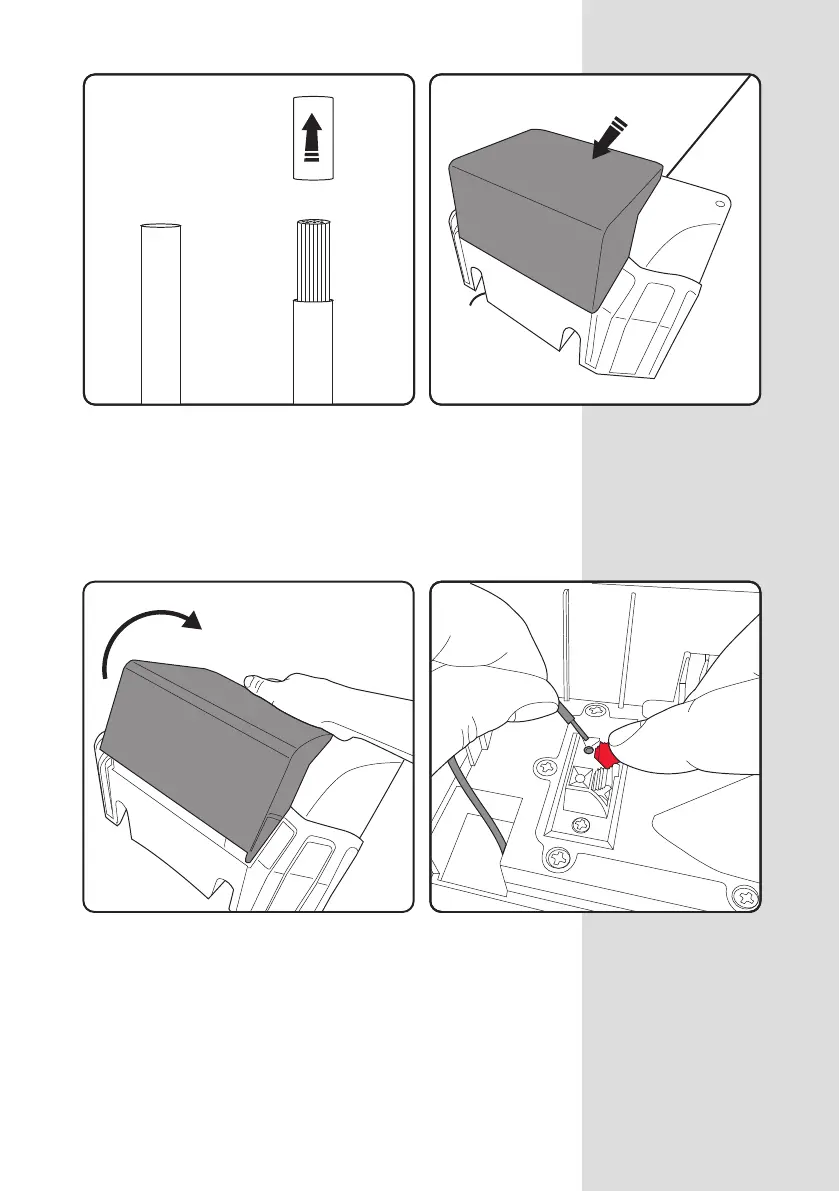

You will need to strip the plastic sheath
from the end of the wire before connect-
ing.
Twisting the exposed wires after exposing
helps ensure a good connection.
Push the charging station hood forward to
uncover the wiring terminals.
The charging stand has a hood at the back
(shown in grey) that hinges forwards.
The sprung terminal will need lifting to
expose the hole, ensure the wire is full
inserted before releasing the red terminal
clip.
