Moen 1225 - Page 5

cartridge (#5B)
may not be
properly aligned
(see step 1). If
for any reason
the copper
clip (#4B)
cannot be
installed, the
water cannot be
turned back on
to the shower
system until the
copper clip
(#4B)
is replaced.

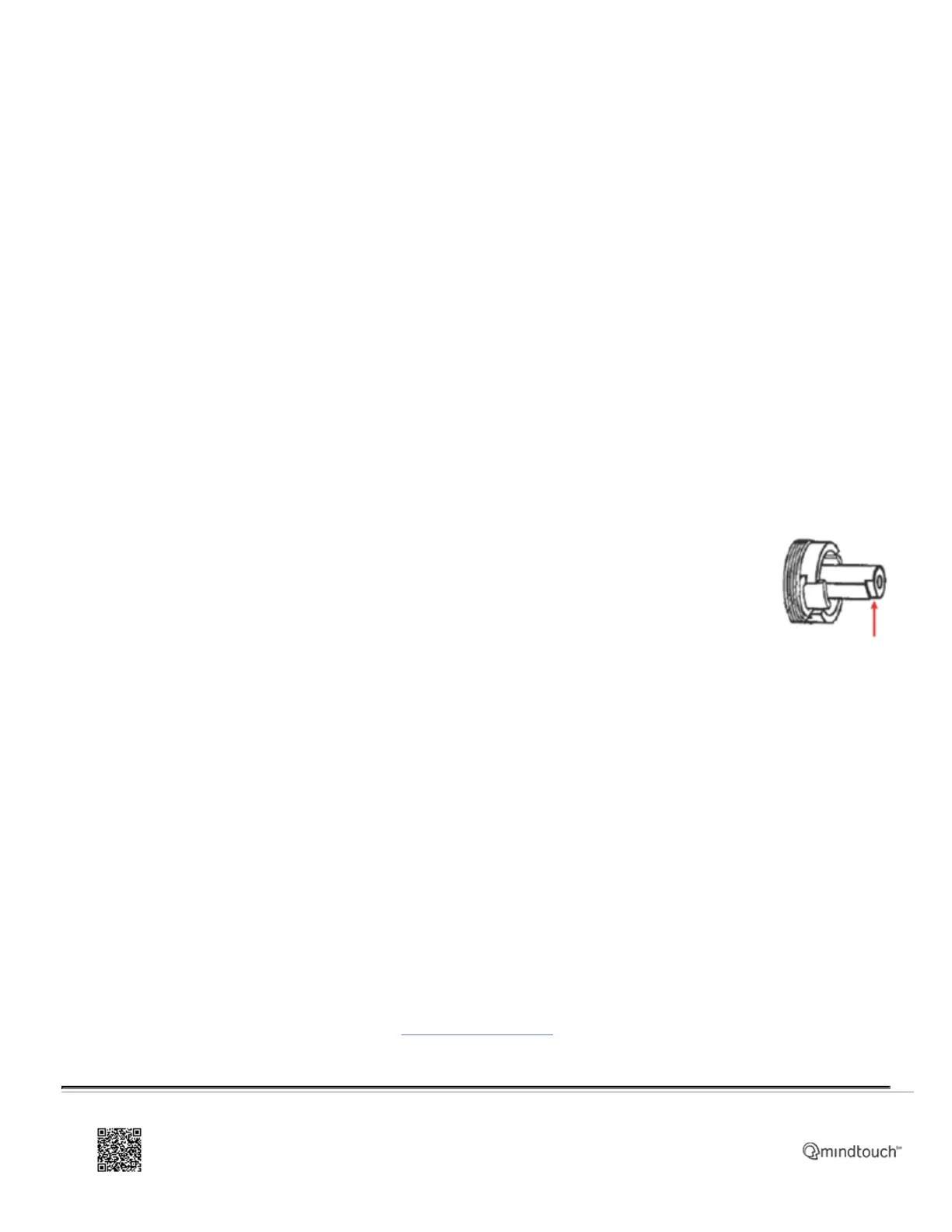

3. Rotate
the stem of the
cartridge (#5B)
so the small
notch is facing
down. The notch
on the stem of
the cartridge
(#5B) determines
the hot and cold
location. If the
hot and cold are
reversed, rotate
the stem of the
cartridge (#5B)
180 degrees.
4. Position the escutcheon plate
(#2B) so the word "Moen" appears
upright and slide it onto the valve
body (#6B).
5. Using a Phillips screwdriver,
thread each of the four escutcheon
screws (#1B) clockwise until tight.
For additional information on Moen products visit solutions.moen.com and select the type of product you are repairing.
The guide will contain repair details, troubleshooting and specific information on assembling handles associated with
that style of product.
