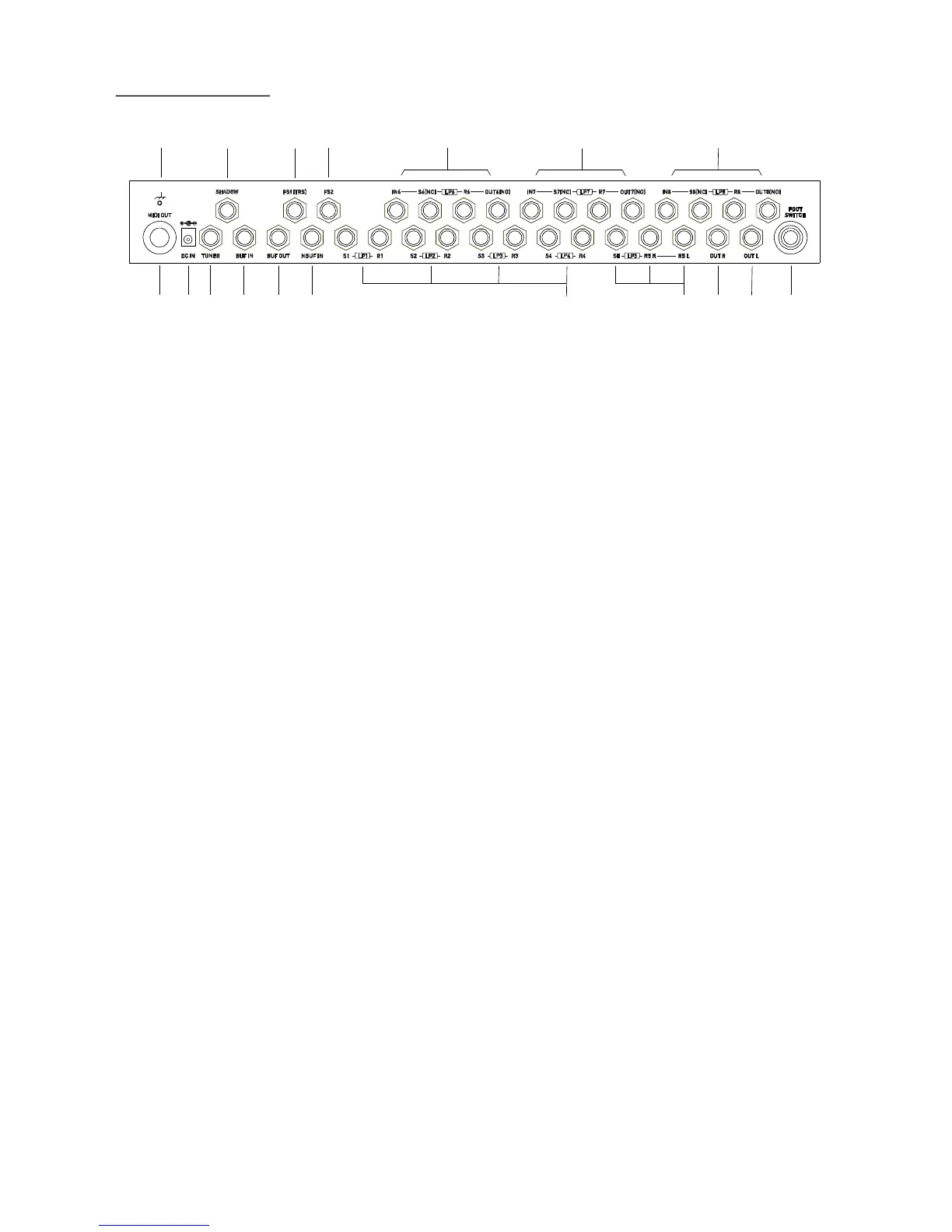

2- Rear view
② DC IN
① MIDI OUT
⑤ BUF OUT
Power input, works with negative center should be above 350mA .DC 9V of which the capacity
This jack outputs midi PC# (program/patch change) and CC# (Control Change).
The jack outputs buffered signal when guitar is connected to BUF IN.
⑦ LOOP1~4
S1~4 is “SEND” of loop1~4, R1~4 is “RETURN” of loop1~4, the four loops only support mono
guitar pedals, loop1 to loop4 are internally connected, the signal chain is
BUF IN (NBUF IN) -> loop1-> loop2->loop3->loop4
73 4 5 6 8 9 10
11
12
1314
15161718
1 2
④ BUF IN
③ TUNER
Buffered input jack, signal via this jack is fed to a buffer circuit prior to being sent to the loops.
This jack switches to BUF IN or NBUF IN when GEC8 is muted, normally it connects to a tuner.
⑥ NBUF IN
Non-buffered input jack.
⑧ LOOP5
This is a mono “SEND” and stereo “RETURN” loop, S5 is “SEND”, R5 R is “Right Return” ,
R5 L is “Left Return”, loop5 is after loop4 and prior to OUT R and OUT L.
⑨ OUT R
Output RIGHT jack, connects to R5 R of loop5, OUT R can be shut off in Programming mode.
⑩ OUT L
Output LEFT jack, connects to R5 L of loop5, OUT L can be shut off in Programming mode.
⑪ FOOTSWITCH
This jack combine FS1,FS2, SEND6, SEND7, SEND8, could be used for amp swithcing.
With the FS6 cable (provided separately), this jack can be connected to the FS IN jack on the
SHADOW pedal, which allows user to configure the channel switching for different amplifiers.
