Moen GEC8 Live User Manual

CH2
CH1
CH3

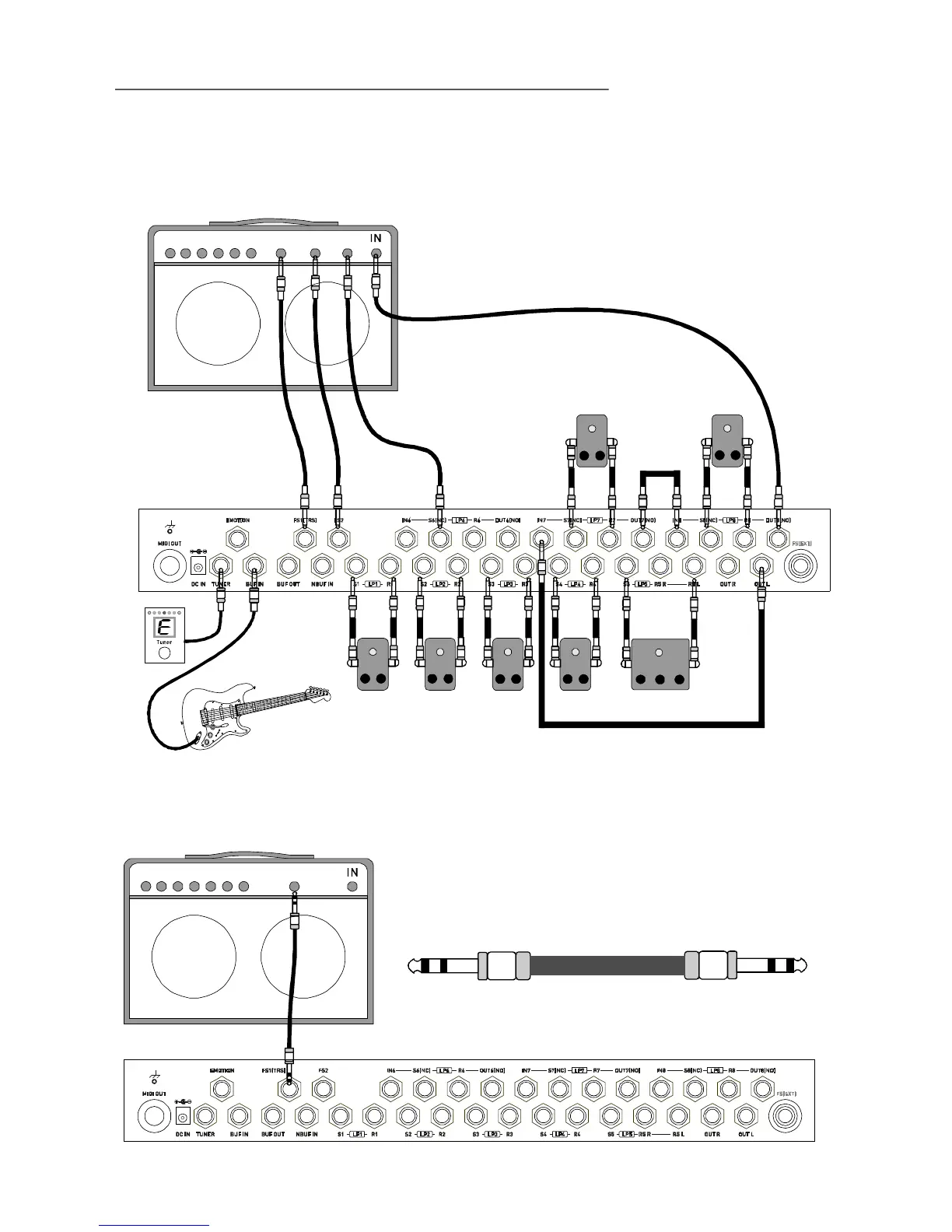

Tutorial 1 - 7 pedals & AMP Channel Switching
FX1 FX2 FX3 FX4 FX5
FX6 FX7
CH1/CH2/CH3 - Amp footswitch jacks (mono).
IN - Input of amp.
Signal chain:
Guitar -> buffer -> loop1-> .....loop5-> OUT L ->(patch cable)-> loop7->(patch cable)->loop8->AMP
8
Footswitch (TRS)
Footswitch (TRS) - Stereo Footswitch Jack
IN - Input of amp.
TIP
RINGSLEEVE
TIP RINGSLEEVE
Stereo cable
Stereo patch cable
FS1/FS2/S6(N.C.) are for three AMP channel switching
If AMP is with TRS latching footswitch, connect stereo patch cable from FS1 (GEC8) to AMP footswitch.
