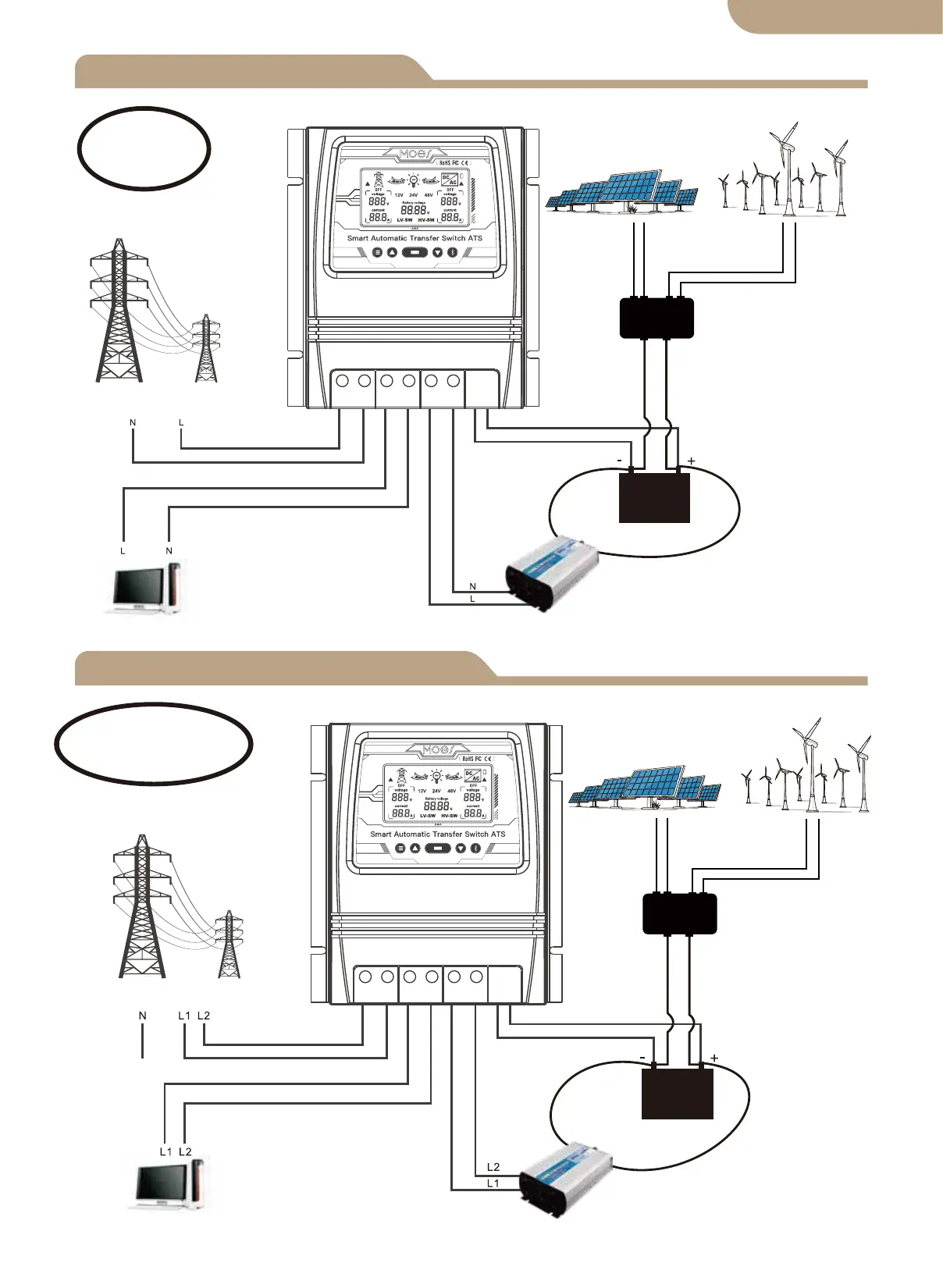

Moes B0BQ8TRVD4 - Connection Diagram

L+N Connection diagram
L1+L2+N Connection diagram
Solar&Wind Controller
Solar Panel
Wind Generator
Utility Power
Load
Inverter
Battery
Live+Neutral
Utility Power
Solar&Wind Controller
Solar Panel
Wind Generator
Load
Inverter
Battery
Live1+Live2+Neutral
02
Note:
The battery is a must for power supply.
Note:
The battery is a must for power supply.
English version
L N L N L N - +
L L L L L L - +
