MOHAWK MODELS SYSTEM IA & SYSTEM IA-10
APPENDAGE:
Rev (6/19/2012)
LIFT ENVIRONMENT:
Mohawk prohibits the outdoor installation of this standard lift, which is APPROVED FOR INDOOR USAGE
ONLY, in a normal garage type environment. Any concerns in applications that expose the lift to additional
environmental effects, such as paint booths, wash bays, outdoors, high or low temperatures, etc. must be
addressed to our engineering department, where provisions could/may be made to the lift to accommodate the
area of use. Our engineering department must be made aware in advance of these conditions and any additional
code requirements that must be met.
Also, the foundation for which this lift must be installed on must comply to the minimum specifications as set
forth in this manual. Any drainage slopes in the bay where the lift is to be installed must be directed away
from the posts to prevent water accumulation at the post bases.
Standard foundation flooring and anchorage specifications are contained within this manual. For installation within a
seismic area, a qualified person must be consulted to address seismic loads and other local or state requirements.
ACCESSORIES:
All accessories (i.e. Lifting Pads, Height Adapters, Wheel Adapters, Turf Adapters) supplied with this lift are
to be used on this lift only. Accessories from other lifts are not acceptable and could result in injury to the
user.
If attachments, accessories or configuration modifying components are used on this lift and, if they are not
certified for use on this lift, then the certification of this lift shall become null and void. Contact the
participant (Mohawk Resources Ltd.) for information pertaining to certified attachments, accessories or
configuration modifying components.
LOCK WARNING:
Latches do not automatically reset after disengagement. After the latches have been manually disengaged, this
lift must be raised approximately 2 inches to reactivate the latches.
LOCKOUT/TAGOUT REQUIREMENTS:
The start switch provided with this unit must not be used as a primary disconnecting means. A separate
disconnecting means must be provided in accordance with all applicable codes. It is the responsibility of the
owner/user of this unit to provide a proper lockout/tagout device for this unit before or during installation in
conformance to ANSI Z244.1 and any local/state/national electrical codes and any OSHA regulations.
PROPER SELECTION OF POWER SUPPLY CORD:
Acceptable Cord Types: SO, SEO,STO, SOW, SEOO, SOW-A
Cord Size: 12/4
Cord Ampacity: 20 Amps

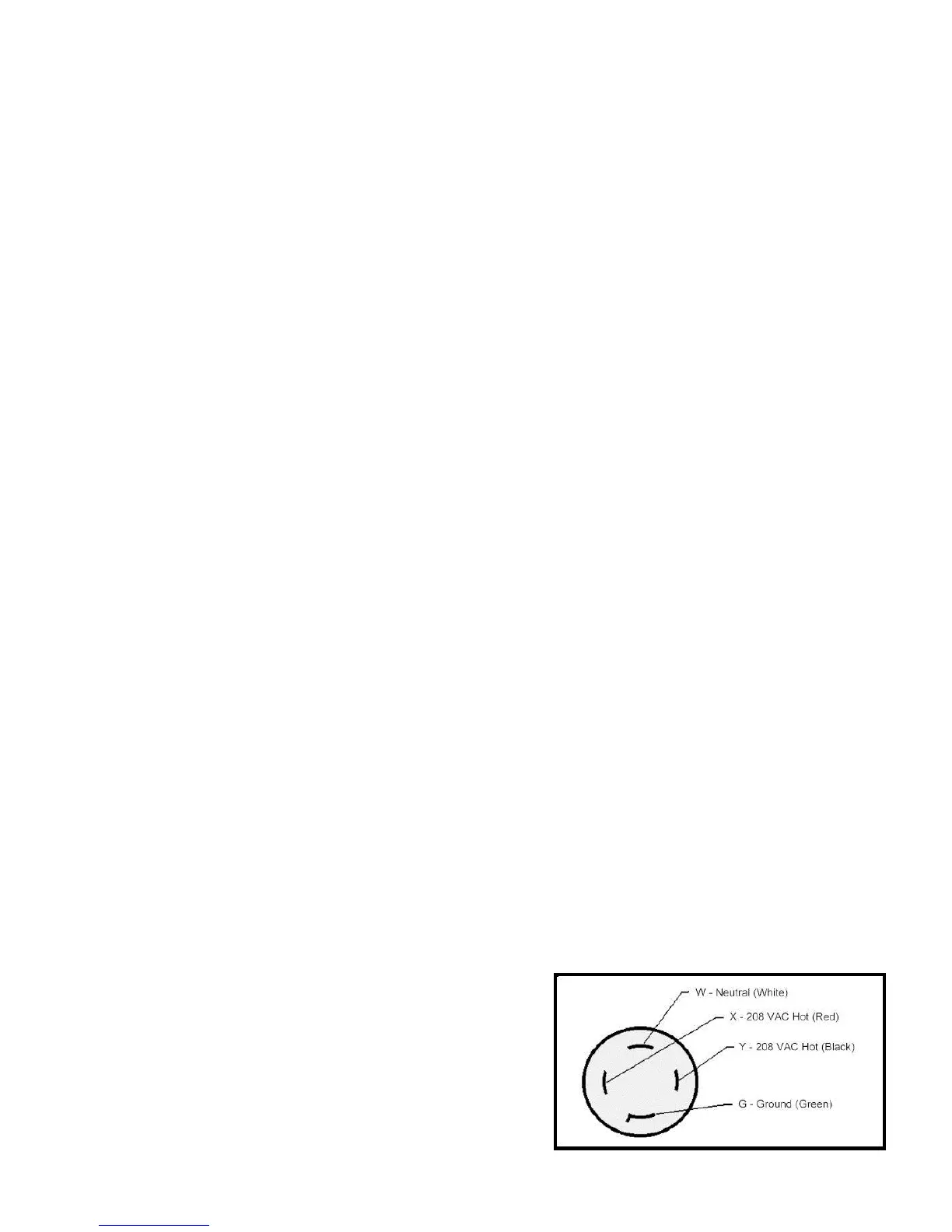

Cord Wiring: Use Female NEMA Plug supplied with lift and wire as follows (See Diagram Below),
G: Ground (green)
W: Neutral (white)
X: 208 VAC Hot, 110 VAC to ground (Red)
Y: 208 VAC Hot, 110 VAC to ground (Black)
Face of Plug Represented:
To Next Page
