APPENDAGE: Rev (8/3/98)
NOTE:
All accessories (i.e. Lifting Pads, Height Adapters, Wheel Adapters, Turf Adapters) supplied with this lift are
to be used on this lift only. Accessories from other lifts are not acceptable and could result in injury to the
user.
WARNING:
Latches do not automatically reset after disengagement. After the latches have been manually disengaged, this
lift must be raised approximately 2 inches to reactivate the latches.
PROPER SELECTION OF POWER SUPPLY CORD:
Acceptable Cord Types: SO, SEO,STO, SOW, SEOO, SOW-A
Cord Size: 12/4
Cord Ampacity: 20 Amps

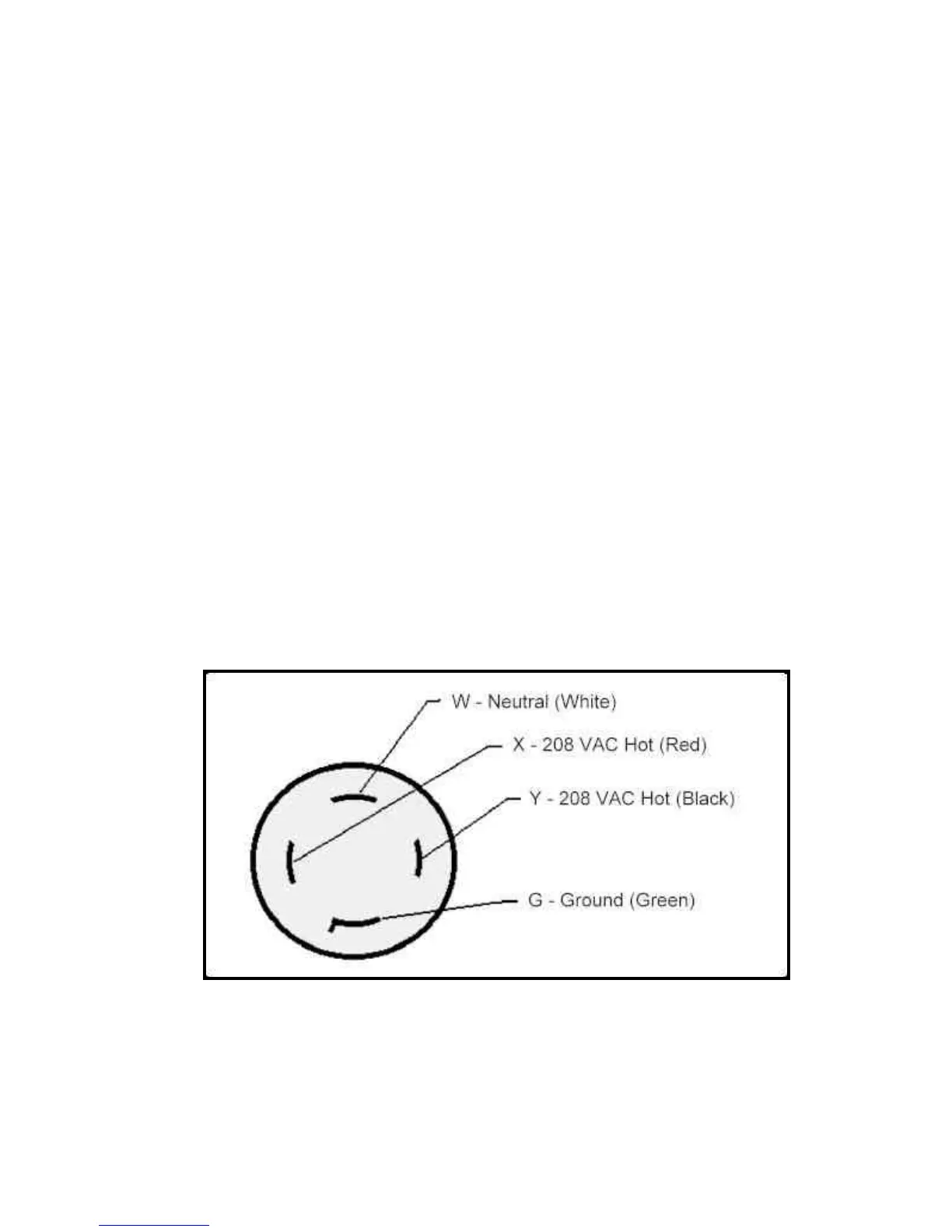

Cord Wiring: Use Female NEMA Plug supplied with lift and wire as follows (See Diagram Below),
G: Ground (green)
W: Neutral (white)
X: 208 VAC Hot, 110 VAC to ground (Red)
Y: 208 VAC Hot, 110 VAC to ground (Black)
Face of Plug Represented:
