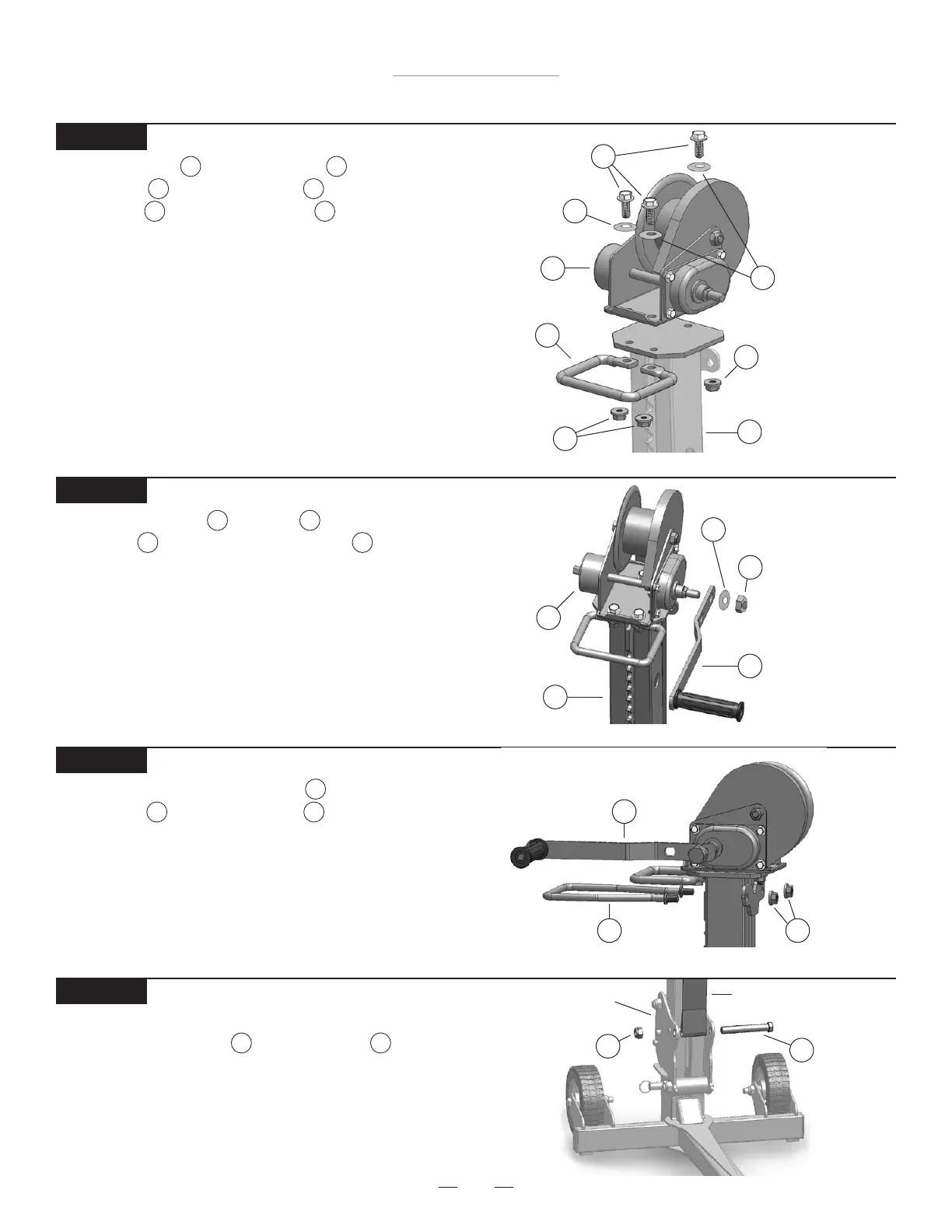

MoJack PRO - Winch and Control Assembly

MoJack PRO Lift
8
Assembly Instructions
STEP 6
Attach the Ratchet Release Handle to the top
of the Tower using Nylock Nuts and tighten
as shown.
8
1 17
Ratchet Release Handle
8
Nylock Nuts
17
Winch Handle
10
STEP 7
Attach Lifting Strap from Winch Spool to the
Carrier using Cap Screw and Nylock Nut
and tighten as shown.
Note: Do not over tighten Nylock Nut.
23 24
Hex Nut
24
Cap Screw
23
Lifting StrapCarrier
Attach the Winch and Grip Handle
to the Tower using Cap Screws ,
Nylock Nuts and Winch Washers ,
and tighten as shown.
STEP 4
9
1
7
16
17
Nylock Nuts
17
Cap Screws
16
Grip Handle
7
Winch
9
Tower
1
Nylock Nut
17
STEP 5
Attach Winch Handle to Winch using
Nylock Nut and Winch Handle Washer
and tighten as shown.
10 9
14
Winch
9
Winch Handle Washer
19
Winch Handle
10
Tower
1
Nylock Nut
14
19
18
Winch Washer
18
Winch Washers
18
