Page 12
Molnar 4 Post Hoist SM4X0

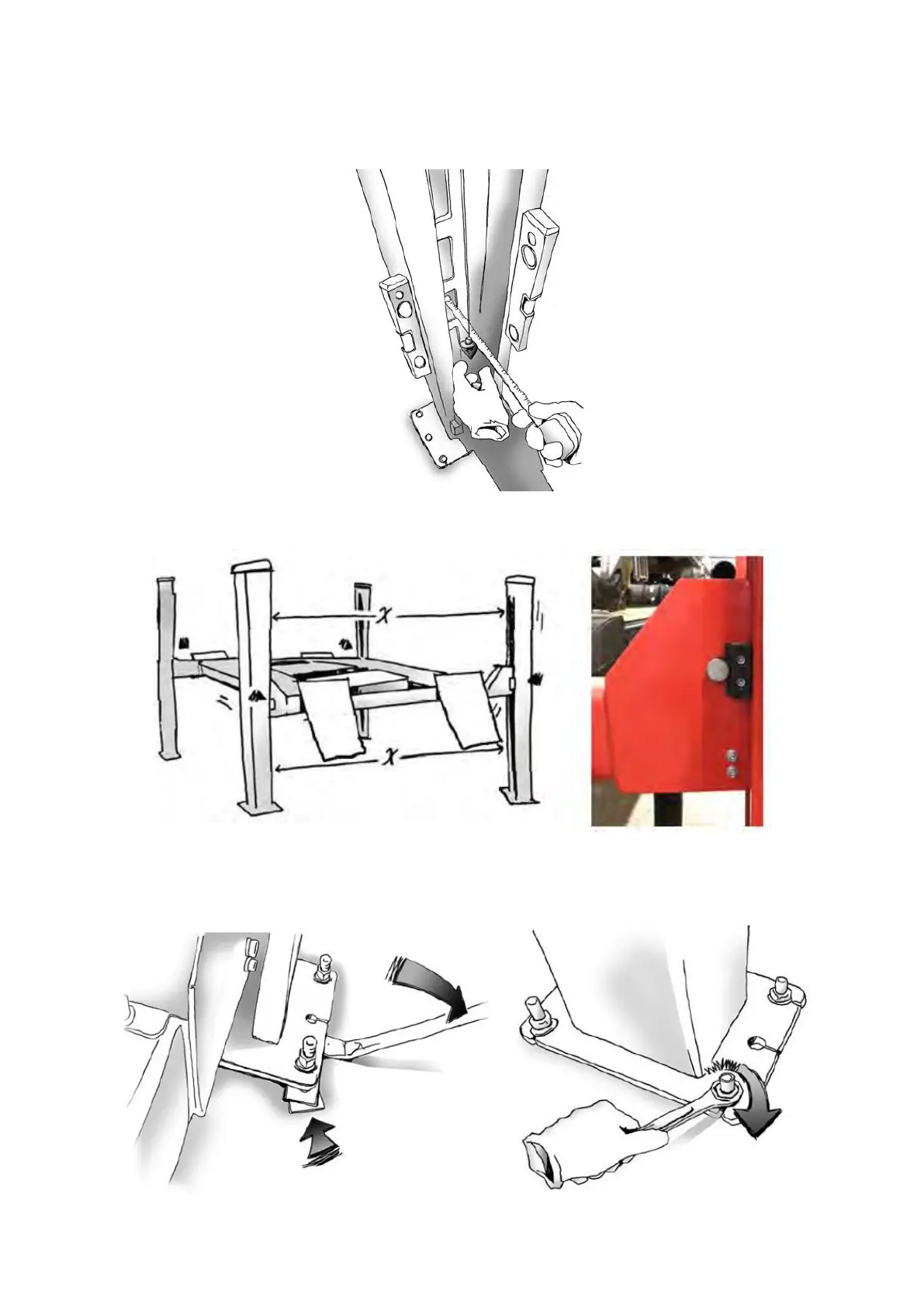

17. Place the spirit level on the posts and using shims, adjust the posts to be vertical to the ground in all 4
posts.
Set the posts so that guide blocks lightly contact and hold the posts when lifting up/down the
platforms.
Adjust vertically and level the 4 posts and then tighten the anchor nuts. Raise the platform to the first
or second lock position and recheck platform levels.
