Molnar 4 Post Hoist SM4X0

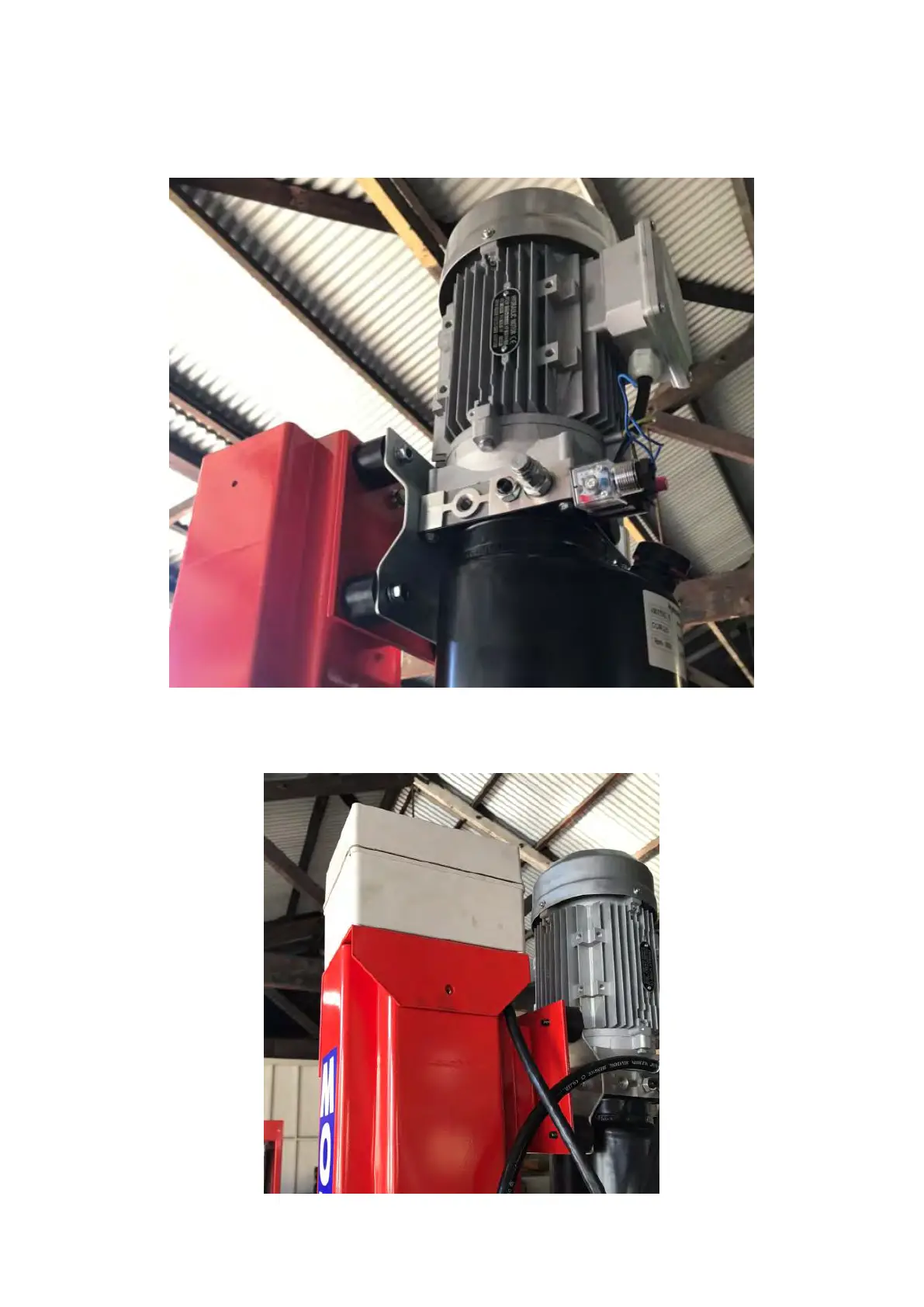

21. Mount the red power pack mounting plate to the post. Attach the motor mount and rubber mounts
to the power pack and attach to the post as shown in the image below. Remove tank and fill with 10L
of hydraulic oil and replace. Connect the hydraulic hose to the power pack.
22. There are 4 top post covers included (one for each post). The cover with the extra holes is for the
control post, attach the 24V transformer to this cover and then to the top of the control post.
NOTE! Transformer Wiring detail found in the appendix of this manual.
To Next Page
