Page 4 Molnar 4 Post Hoist SM4X0
TRANSPORTATION AND INSTALLATION
Preparation for installation
The hoist shall be installed on hard and flat floor made with reinforced concrete at 32MPa grade

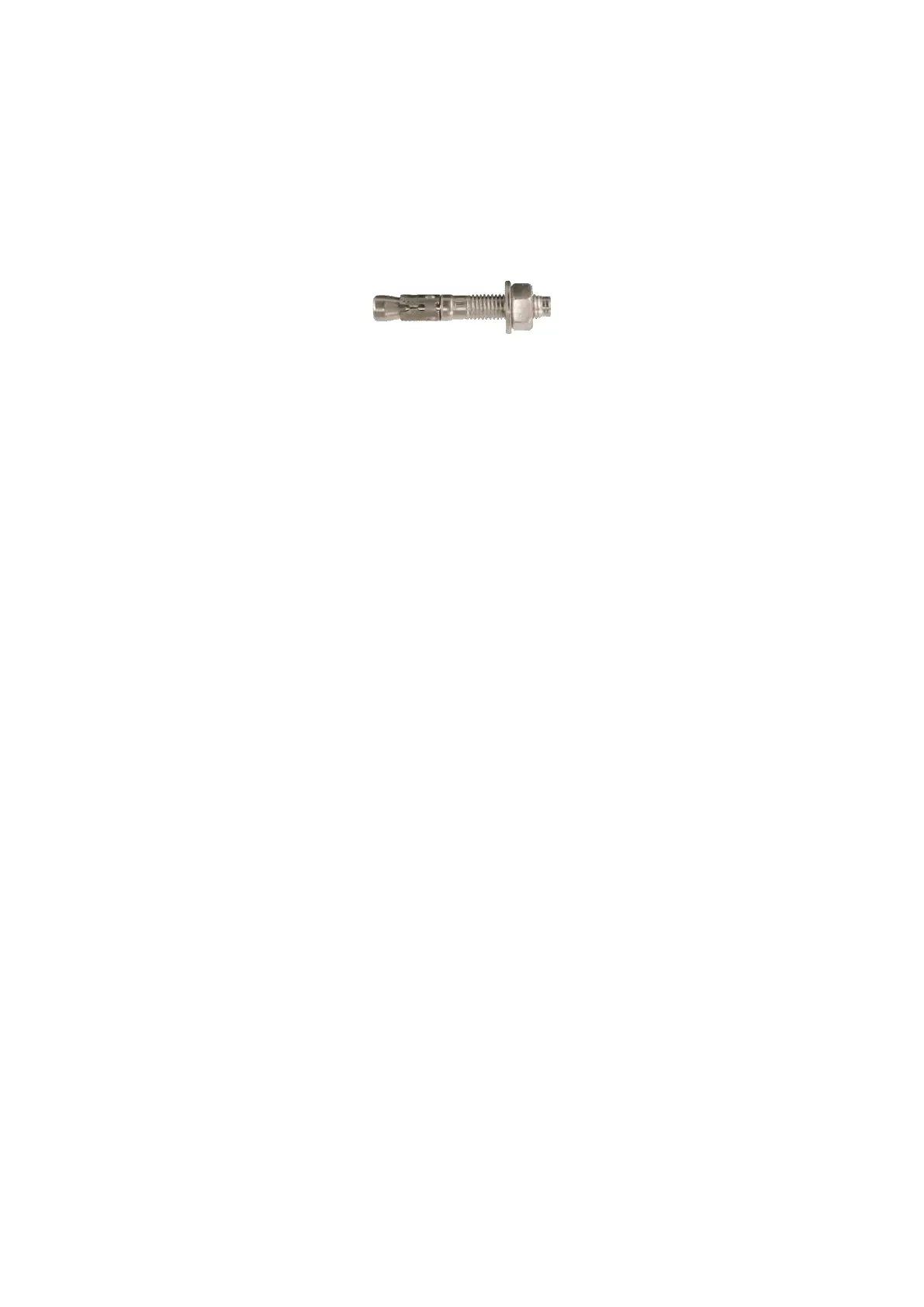

with the thickness of 100mm minimum. The anchor bolt shall be M16 x 140mm tru-bolt and requires
16 anchor bolts.
Iccons Part No TB16140
Generally, this machine will be installed on the following conditions:
1) Supply voltage: 0.9 - 1.1 nominal supply voltage
2) Source frequency: 0.99 - 1.01 nominal frequency
3) Ambient temperature: 50C - 400C
4) Altitude: shall be at altitudes up to 1000m above mean sea level
5) Relative humidity: not exceed 50% at 40C
6) Atmosphere: Free from excessive dust, acid fume, corrosive gases and salt.
7) Avoid exposing to direct sunlight or heat rays which can change the environmental
temperature.
8) Avoid exposing to abnormal vibration.
9) Electrical equipment shall withstand the effects of transportation and storage temperature
within a range of -25°C to 55°C and for short periods not exceeding 24 hours at up to +70°C.
*Please find the layout dimensions for the various models at the end of this manual
