Molnar 4 Post Hoist SM4X0
Page 5
Installation Process

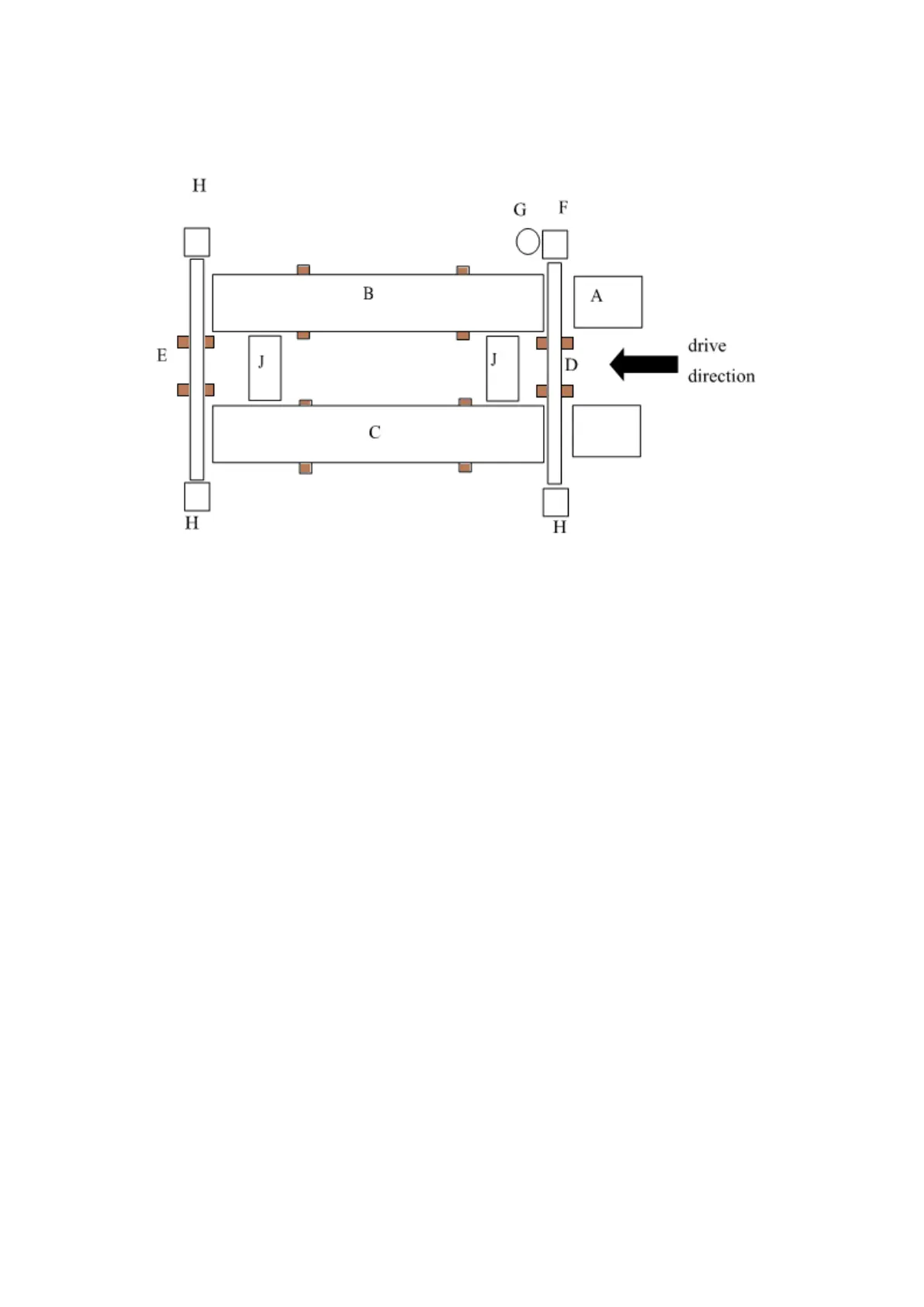

Layout Reference Diagram
A - Run up ramps
B - Control platform
C - Non-control platform
D - Transverse beam control end
E - Transverse beam non-control end
F - Control post
G - Power pack
H - Non-control post
J - Jacking beam
Placing hoist on the installation location using timber under the platforms and transverse beams
1) Place the main parts on the appropriate position in reference to the above layout diagram.
