Page 9
Molnar 4 Post Hoist SM4X0
Assembling the Lock Rails and Posts
10. Square up the now assembled transverse beam and platform to ensure square and level.
11. Place the lock rails through the transverse beam ends and locate in the hole at the bottom of the
posts.
NOTE! When assembling the lock rail, place the round part of the rail holes facing away from the post.
NOTE! Check that the lock rail bottom is located in the hole on base plate/ bottom of post.

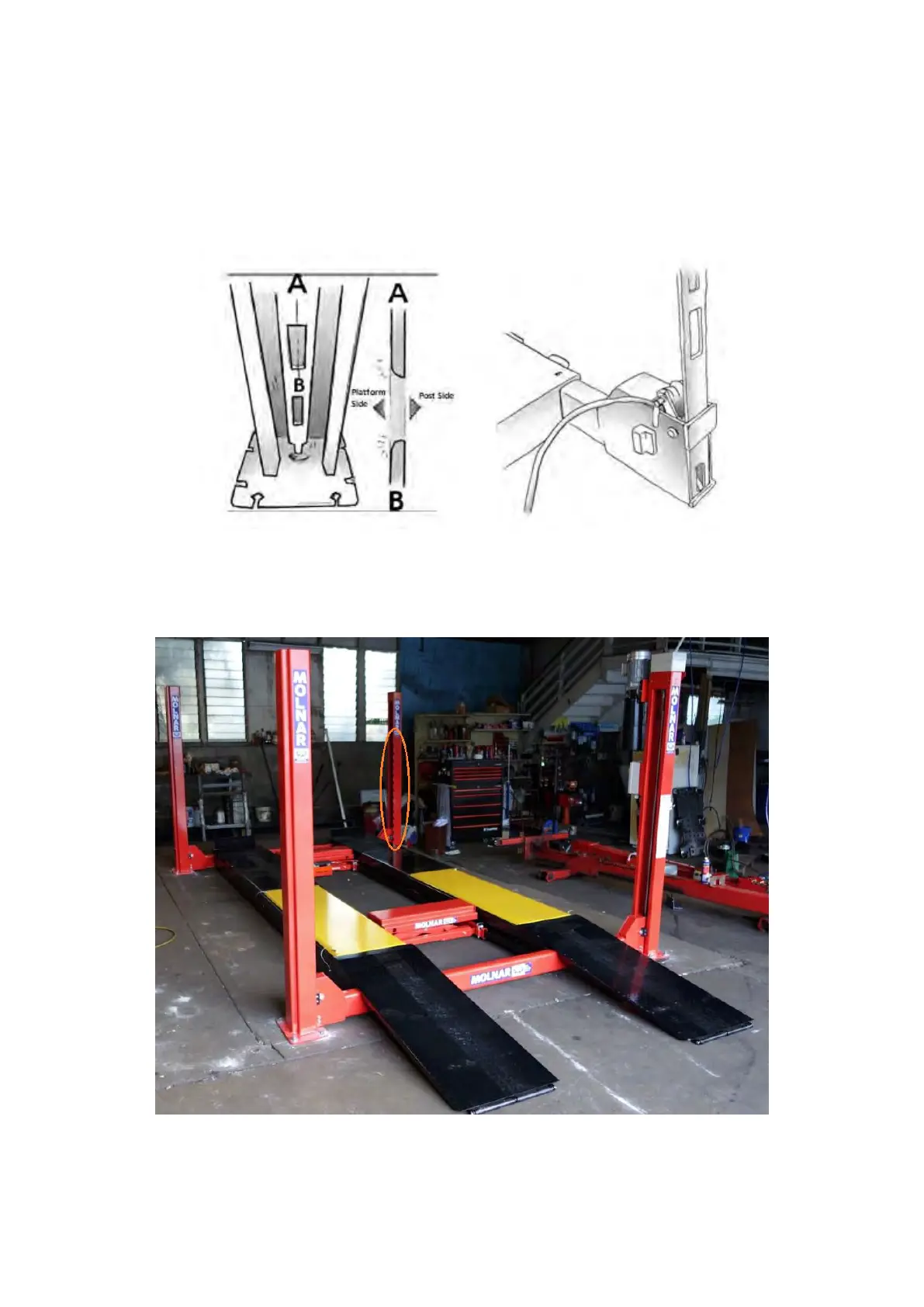

NOTE! Post with lock sticker should be placed as the front control side so easily visible at controls, as
can be seen in the Figure below:
12. Before setting up the posts, put the lock rail fixing full-thread bolts to the top of the posts.
13. Put the bottom of the lock rail to the base hole as previously mentioned and set up the post.
