Page 10
Molnar 4 Post Hoist SM4X0
14. Fasten:

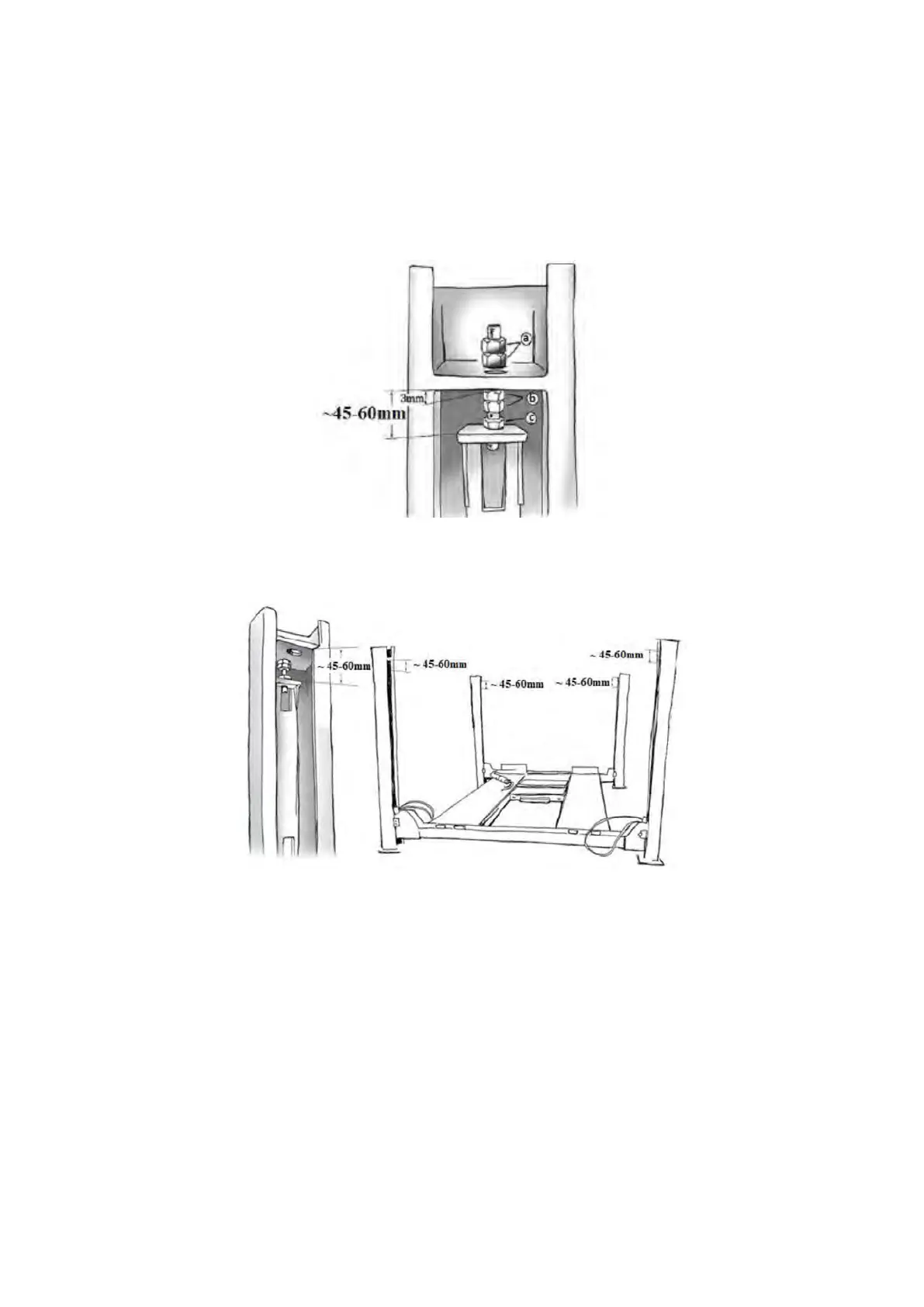

- 2 (a) nuts (16mm) as shown in the figure below, fasten the upper nut clockwise and the lower nut
counter clockwise, maintaining approx. space to the lock rail for 45-60mm (guideline only).
- 2 (b) nuts (11.5mm) each to opposite direction, maintaining 2-3 threads (3mm) between the
nuts.
- Fix (c) nut tight to the lock rail.
15. Set up the posts, maintaining the space of approx. 45-60mm between the fixing plate of the top of the
post and the lock rail bracket.
