PA Technology 2014

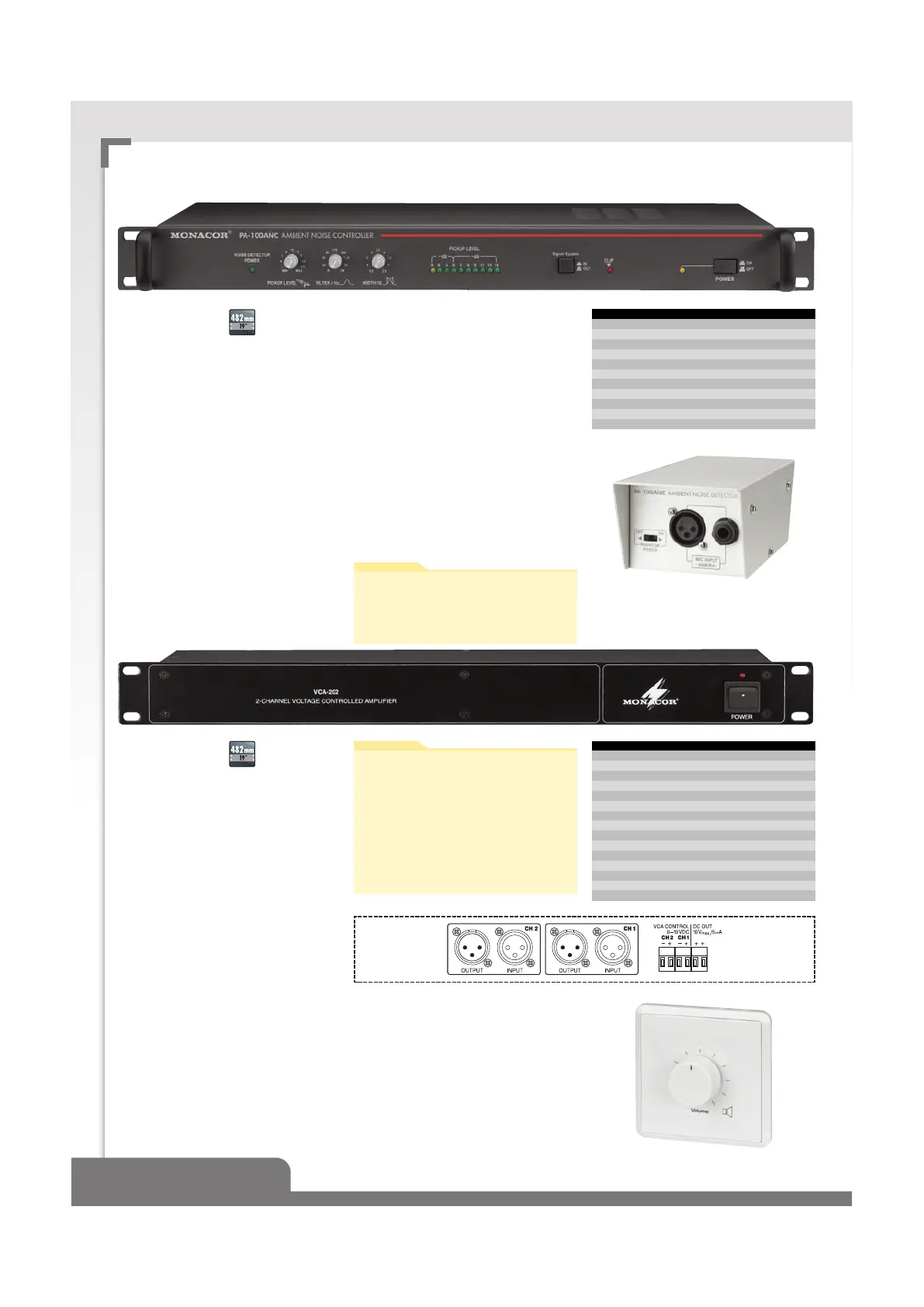

Ambient Noise Controller, Volume Controls
Order No. 17.2280
Ambient noise controller, for automatically
matchingthe signal in case of ambient
noise.
The wanted audio signal is held at a fixed
distance to a second audio signal. The
second audiosignal is usually the ambient
noise which normally appears in shopping
centres, hotels, train stations, airports or
restaurants. The supplied noise detector and
a microphone (available at option)monitor
the ambientnoise and the wanted signal
(e.g. announcement or music) is boosted or
attenuated accordingly. Thus, the signal for
announcements or music is, at the set level,
always at a higher volumethan the distract-
ing ambient noise.
• Supplied with noise detector forthe con-
nectionofan electretmicrophone or a
dynamic microphone with XLR jack or
6.3 mm jack
Matching microphones DM-2500,
ECM-302B/WS, ECM-10/SW or
ECM-10/WS are availableatoption.
•Adjustable limiter for setting the low output
level
•Adjustable Q-factor
•Adjustable band fil
ter for measu
ring
(30-15,000 Hz)
• Bypass switchfor deactivating the noise
detector
•Phantom power can be switched on
additionally via noise detector
•LED display for output level and clipping
• 24 V emergency power supply
Model PA-100ANC
Input 0.775 V, 30 kΩ,bal., XLR
Output 0.775 V, 600 Ω,bal., XLR
S/N ratio > 60 dB
Frequency range 20-20,000 Hz
THD < 0.3%
Phantom power 20 V‡
Power supply 230 V~/50 Hz/10 VA
24 V‡/150 mA
Dimensions 482x44x230 mm, 1 RS
80x60x180 mm (noise detector)
Weight 3.5kg(in total)
Order No. 17.1880
Voltage-controlled 2-channelVCA volume
control
• 2-channel mono operation or stereo
operation
• Remote control for each channel via
optional wall-mountedvolume control
VCA-202RN or via lin. 10 kΩ potentiome-
ter (notsupplied), control voltage:
0-10 V‡
• 10 V voltage output for potentiometer
• Servo-balanced inputs and outputs
• 482 mm (19") rack installation, 1RS
Model VCA-202
Line input,mono 1V/30kΩ
Input control voltage 0-10V‡/100 kΩ
Line output, mono 1V/600 Ω
Output control voltage 10 V‡/5 mA
Frequency range 20-20,000 Hz
THD 0.1 %
S/N ratio 70 dB
Power supply 230 V~/50 Hz/10VA
Admiss. ambient temp. 0-40°C
Dimensions 482x48x105 mm, 1 RS
Weight 1.5 kg
Line input,mono 2 x XLR, bal.
Input control voltage plug-in screw connection
Line output, mono 2 x XLR, bal.
Output control voltage plug-in screw connection
For the remotevolume control of PA
systems in large areas (e.g. churches,
workshops). Thevolume control VCA-202
is inserted between preamplifier and
power amplifier.
The surface-mounted housing ATT-300
can be used for universal mounting of the
potentiometers.
Order No. 17.3000
Wall-mounted volume control, for the use
with VCA-202 or similar applications.
•Linear 10 kΩ potentiometer, mono
•Built-in relay (24 V‡) for priority circuit
• Flush mounting in standard 60 mm wall
socket
• Surface mountingwithmatching housing
ATT-300, available at option
•Mounting depth: 27 mm
• Plug-in screw terminal
Including noise detector
