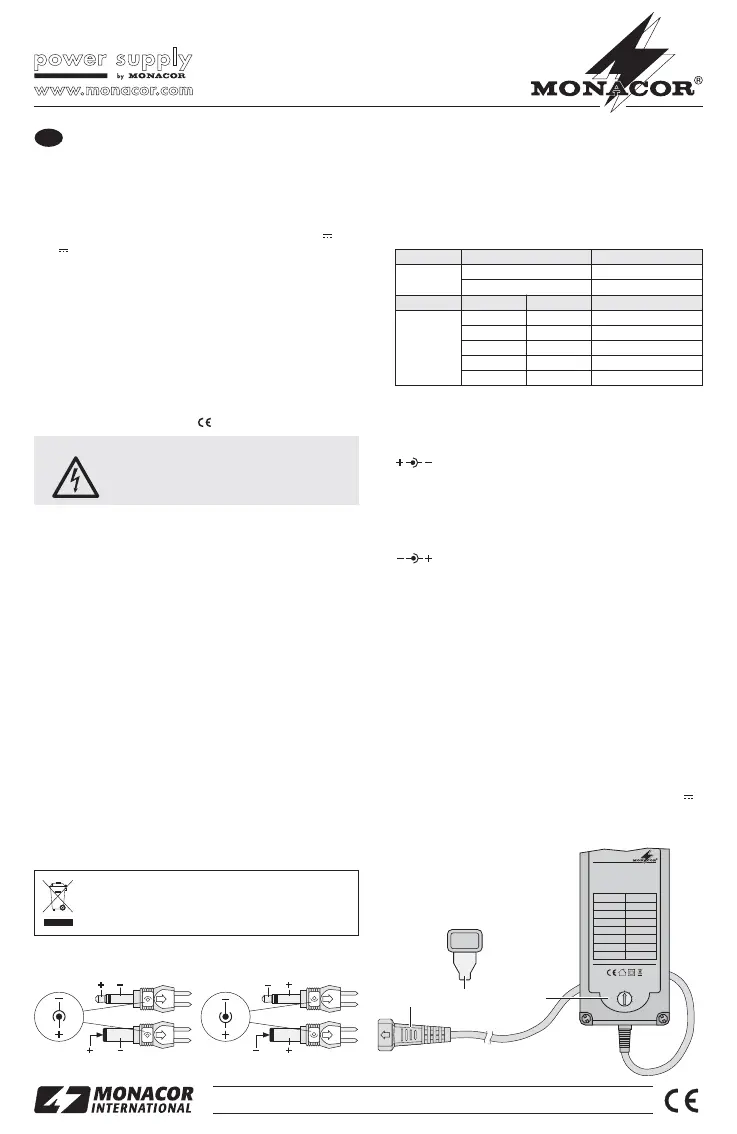

PSS-3000E
3 Operation
1) Determine the operating voltage of the unit to be sup-
plied with power (
marking of the power supply jack
of the unit) and adjust the voltage by turning the switch
(3) with the key supplied (2).
2) Select the matching adapter from the 7 adapters sup-
plied:
3) Determine the position of the positive and negative
poles at the power supply jack of the unit to be con-
nected (
marking of the jack) and connect the
adapter to the inline jack (1) accordingly.
With this marking or a similar marking of the
power supply jack, the positive pole must be at
the tip or at the inner contact of the adapter:
Connect the adapter to the inline jack in such a
way that the
arrow of the inline jack
will point to
the
number/numbers
of the adapter (fig. 1).
With this marking, the negative pole must be at
the tip or at the inner contact of the adapter:
Connect the adapter to the inline jack in such a
way that the
arrow of the inline jack
will point to
the
identification letter
(fig. 2).
4) Use the correct adapter to connect the power supply
unit to the unit to be supplied with power; then connect
it to a mains socket (100 – 240 V~, 50 – 60 Hz). The red
power LED will light up.
4 Specifications
Power supply: . . . . . . . . . . . . . . . . . 100 – 240 V~, 50 – 60 Hz,
0.8 A max.
Power consumption
in no-load operation: . . . . . . . . . . . . < 0,3 W
Output voltage: . . . . . . . . . . . . . . . . 5 / 6 / 7.5 / 9 / 12 / 13.5 / 15 V
Output current: . . . . . . . . . . . . . . . . 3.0 A at 5 – 12 V
2.4 A at 13,5 – 15 V
Subject to technical modification.
Type Diameter (mm) Identification letter
Plug
2.5 A
3.5 B
outside inside
Hollow
plug
2.35 0.75 S
3.5 1.35 H
5.0 2.1 D
5.5 2.1 E
5.5 2.5 G
Order No. 27.3150
®
Positive pole at the tip or at
the inner contact
Negative pole at the tip or
at the inner contact
GB
12 3
Switch Mode Power Supply Unit
Please read these operating instructions carefully prior to
operating the unit and keep them for later reference.
1 Applications
This power supply unit is used for direct current supply of
small units with an operating voltage between 5 V and
15 V and a maximum current consumption of:
5 – 12 V 3.0 A
13.5 – 15 V 2.4 A
The output voltage is adjustable to 5 V, 6 V, 7.5 V, 9 V,
12 V, 13.5 V or 15 V. The unit is protected against short cir-
cuit, overload and overheating. The special feature of the
power supply unit is its extra low current consumption
(< 0.3 W) when the unit connected has been switched off.
2 Safety Notes
This unit corresponds to all required directives of the EU
and is therefore marked with .
G
The unit is suitable for indoor use only. Protect it against
dripping water and splash water, high air humidity and
heat (admissible ambient temperature range 0 – 40 °C).
G
Do not set the unit into operation, and immediately dis-
connect the mains plug from the mains socket
1. there is visible damage to the unit or to the mains
cable,
2. if a defect might have occurred after the unit was
dropped or suffered a similar accident,
3. if malfunctions occur.
In any case the unit must be repaired by skilled person-
nel.
G
A damaged mains cable must be replaced by skilled
personnel only.
G
Never pull the mains cable to disconnect the mains plug
from the mains socket, always seize the plug.
G
For cleaning only use a dry, soft cloth; never use chem-
icals or water.
G
No guarantee claims for the unit and no liability for any
resulting personal damage or material damage will be
accepted if the unit is used for other purposes than orig-
inally intended, if it is not correctly connected, if it is
overloaded or if it is not repaired in an expert way.
If the unit is to be put out of operation definitively,
take it to a local recycling plant for a disposal
which is not harmful to the environment.
WARNING The unit uses dangerous mains voltage.
Leave servicing to skilled personnel only.
Inexpert handling unit may result in electric
shock.
MONACOR INTERNATIONAL GmbH & Co. KG • Zum Falsch 36 • 28307 Bremen • Germany
Copyright
©
by MONACOR INTERNATIONAL. All rights reserved. A-1036.99.02.05.2011
®
