Freewheel sprocket
When replacing the freewheel sprocket remove frame
covers if necessary. Dismantle the chain as described
in part ”Chain 1/2” x 1/8” ”.
Loosen the axle nuts and lift off the flywheel. Remove
the axle nut, washer, chain adjuster and spacer on the
freewheel side. Place the special remover (Art. No:
9100-14) in the adaptor and place the spacer and axle
nut outside. See fig: Special remover. Replace sprocket-
adaptor and assemble the new parts in reverse order
according to the above.
NOTE: Do not tighten the axle nut completely. It
must be possible to loosen the adaptor-sprocket half
a turn.
The sprocket should be lubricated with a few drops of
oil once a year. Tilt the cycle to make it easier for the
oil to reach the bearing. See fig: Lubrication.

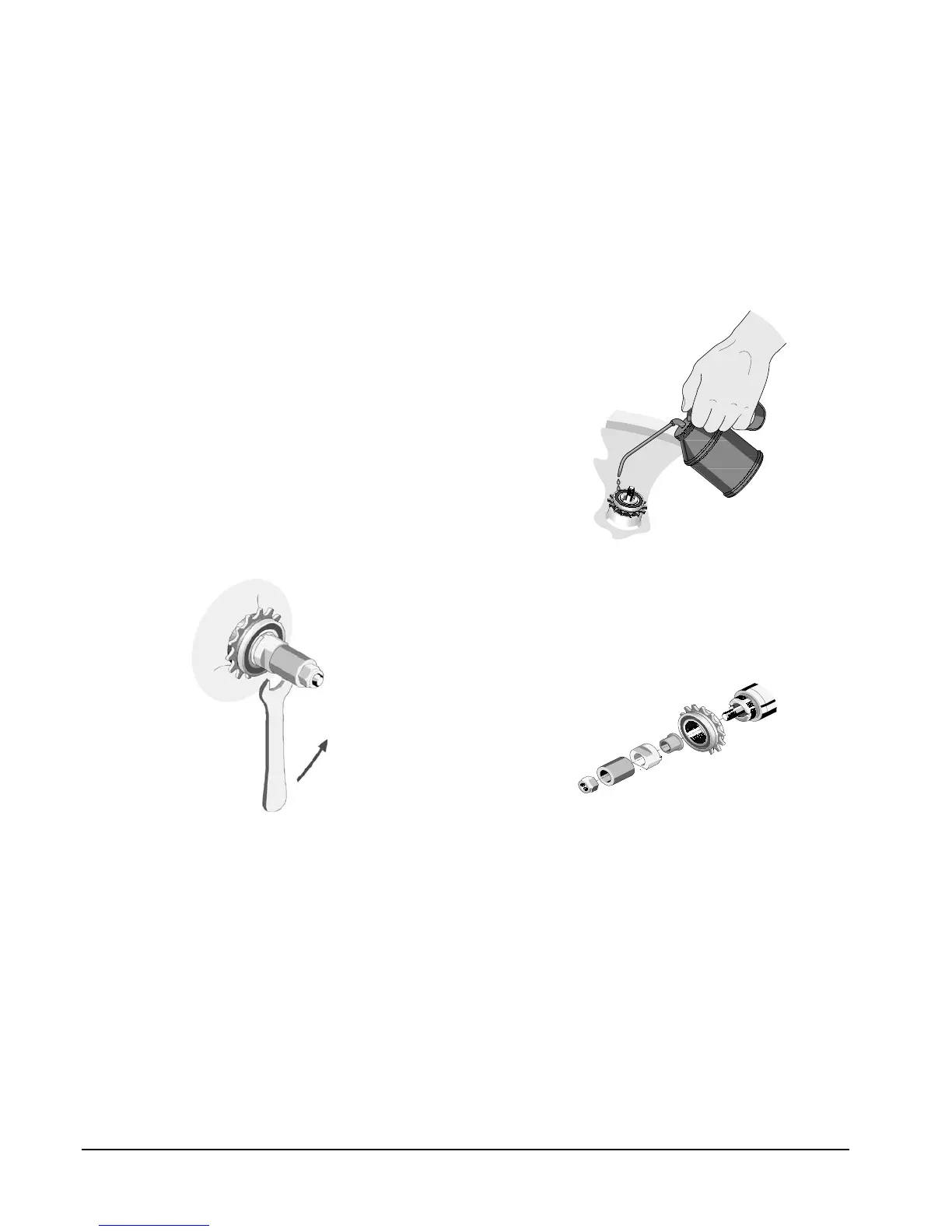

Fig: Special remover
(Art. No: 9100-14)
Fig: Lubrication
Fig: Hub assembly
