Monessen Hearth BLOTMC - Install Variable Speed Control; Mounting the Speed Control Bracket; Positioning and Securing Speed Control

3
Monessen • BLOTMC Installation Manual • 93D0005 • Rev H • 01/2020

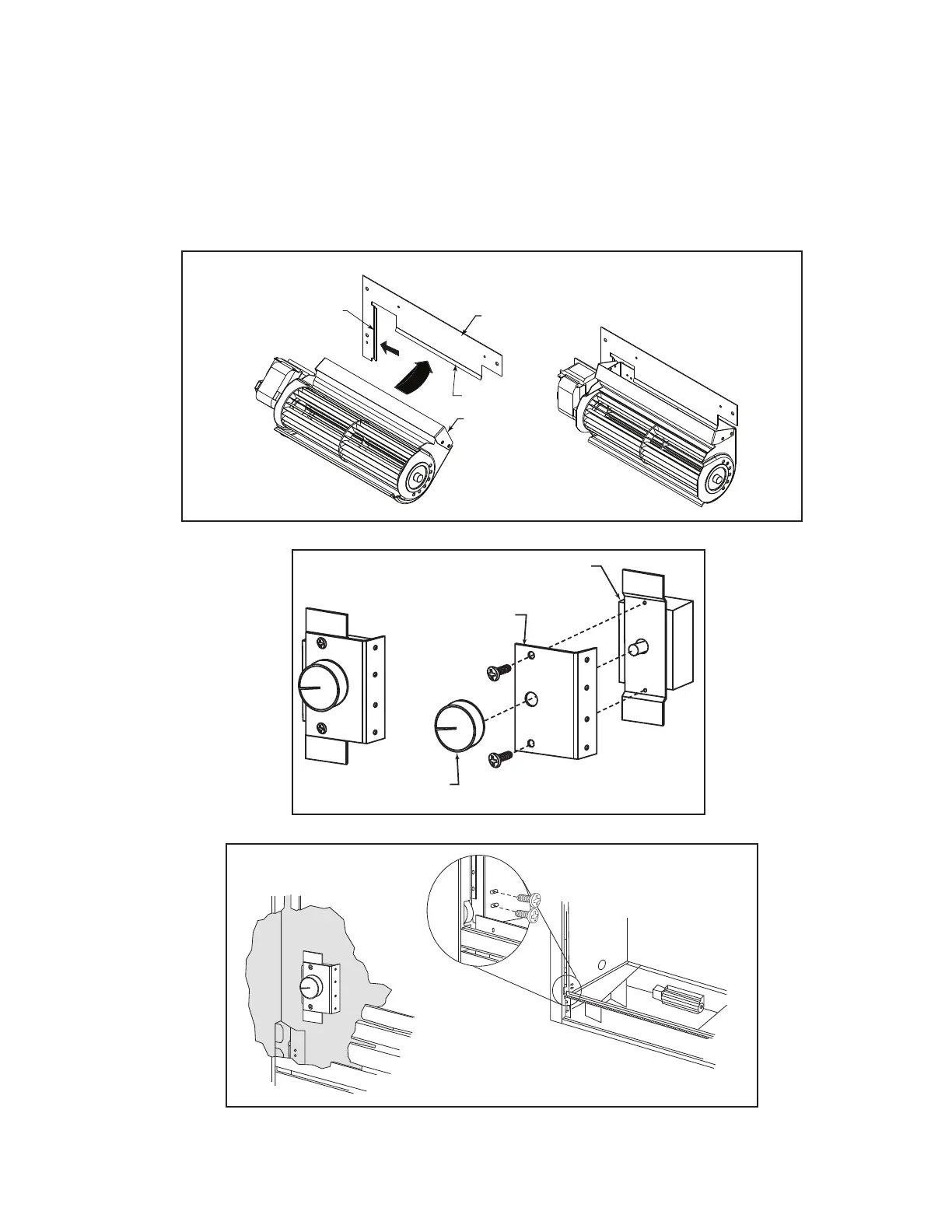

Figure 6
Install Variable Speed Control
1. Pull knob o󰀨 speed control switch and attach blower
switch bracket with two (2) screws supplied. Figure 7.
Reinstall knob.
Figure 7 - Speed Control Secured to Bracket
2. Position the blower switch assembly in lower left cor-
ner of unit as shown in Figure 8
3. As you hold switch assembly in place, secure unit with
two (2) screws provided. Figure 8
Figure 8
Side Flange
Blower Bracket
Discharge
Vent
Flange
Blower in Place
Start Position
Speed Control
Blower Switch
Bracket
Speed Control
Knob
