3. Overview of test box

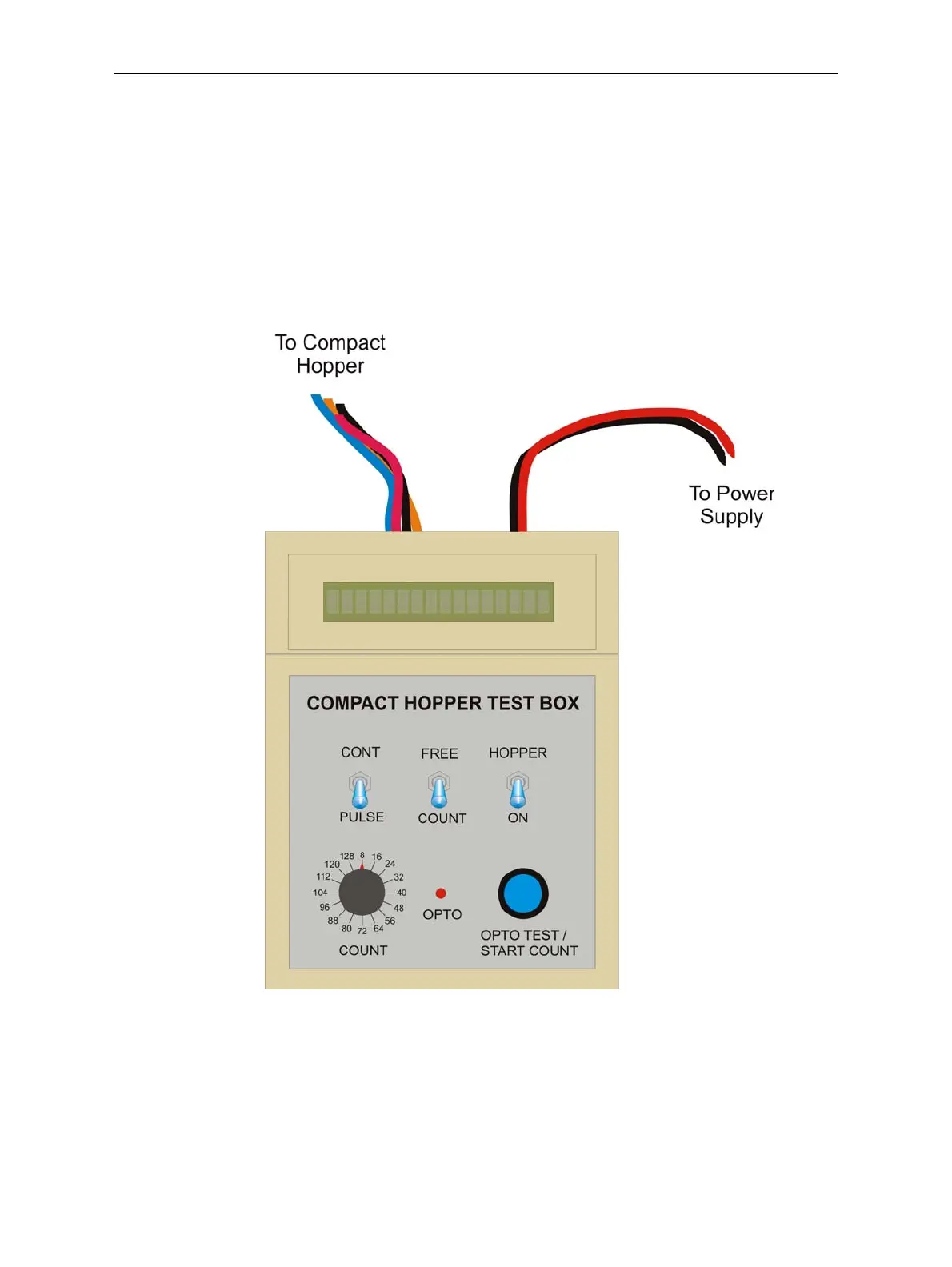

There is a DC Power Supply input and also a Compact Hopper loom emanating from the rear of
the test box – the 4-way female connects to the male 4 pin interface connector on the Compact
Hopper and the 2 way cable goes to a DC power supply.
DO NOT TURN THE POWER ON BEFORE ALL CONNECTIONS TO TEST BOX AND
COMPACT HOPPER ARE MADE!!!!!!
