3 Assembly
20

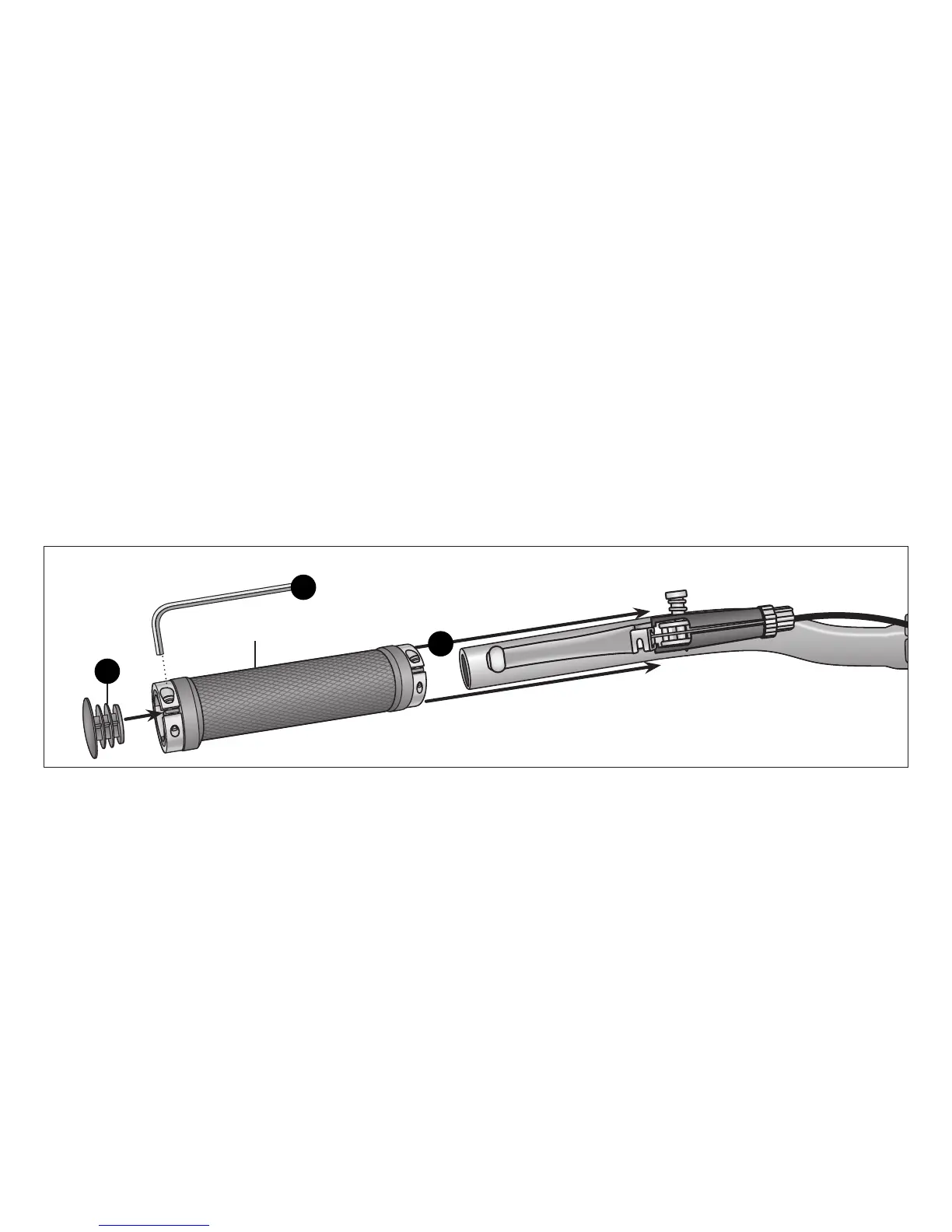

Figure 3.7
ATTACH THE LOCKON GRIPS
Follow these steps if your bicycle is equipped with lockon grips.
❶Clean the handlebar surface.
❷ Slide the lockon grip over the handlebar as far as it can go.
Note: Rotate the clamp so the clamp screws are on the
underside of the handlebar. Figure 3.7
❸ Adjust the grip to how you want it to feel.
❹ Using a 2.5 mm Allen wrench ghten the clamps on both
ends of the lockon grip. Check the grip is securely aached
and does not rotate or slip.
❺Snap the lockon grip cap onto the end of the lockon grip.
❻Repeat steps 1 - 5 for the second lockon grip.
Lockon grips
Lockon grip cap
