Mongoose MULTI SPEED - Page 38

©2011

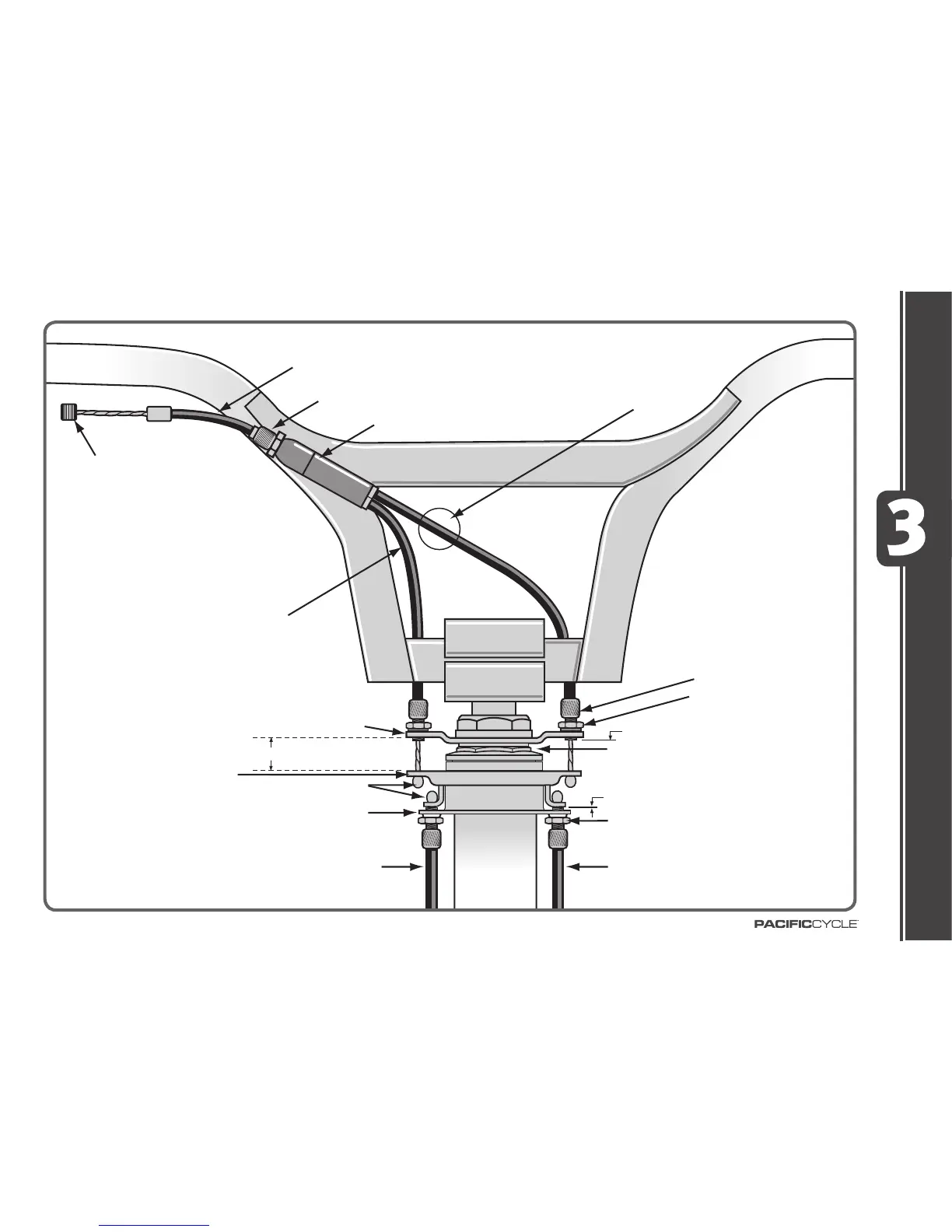

ASSEMBLY
Barrel end
Upper cable
(short casing)
Upper plate
Upper cable
(long casing)
Single cable casing
Cable adjuster
Cable splier
Bearing
Football ends
Lower plate
Lower cable
Lower cable
Locknut
Locknut
Adjusng barrel
Set for maximum travel
Minimum 1mm (1/32”)
Minimum 1mm (1/32”)
Keyed washer
3.30
37
